EVAL-AD4696FMCZ
8.
A display bar showing the installation progress appears, as
shown in Figure 7.

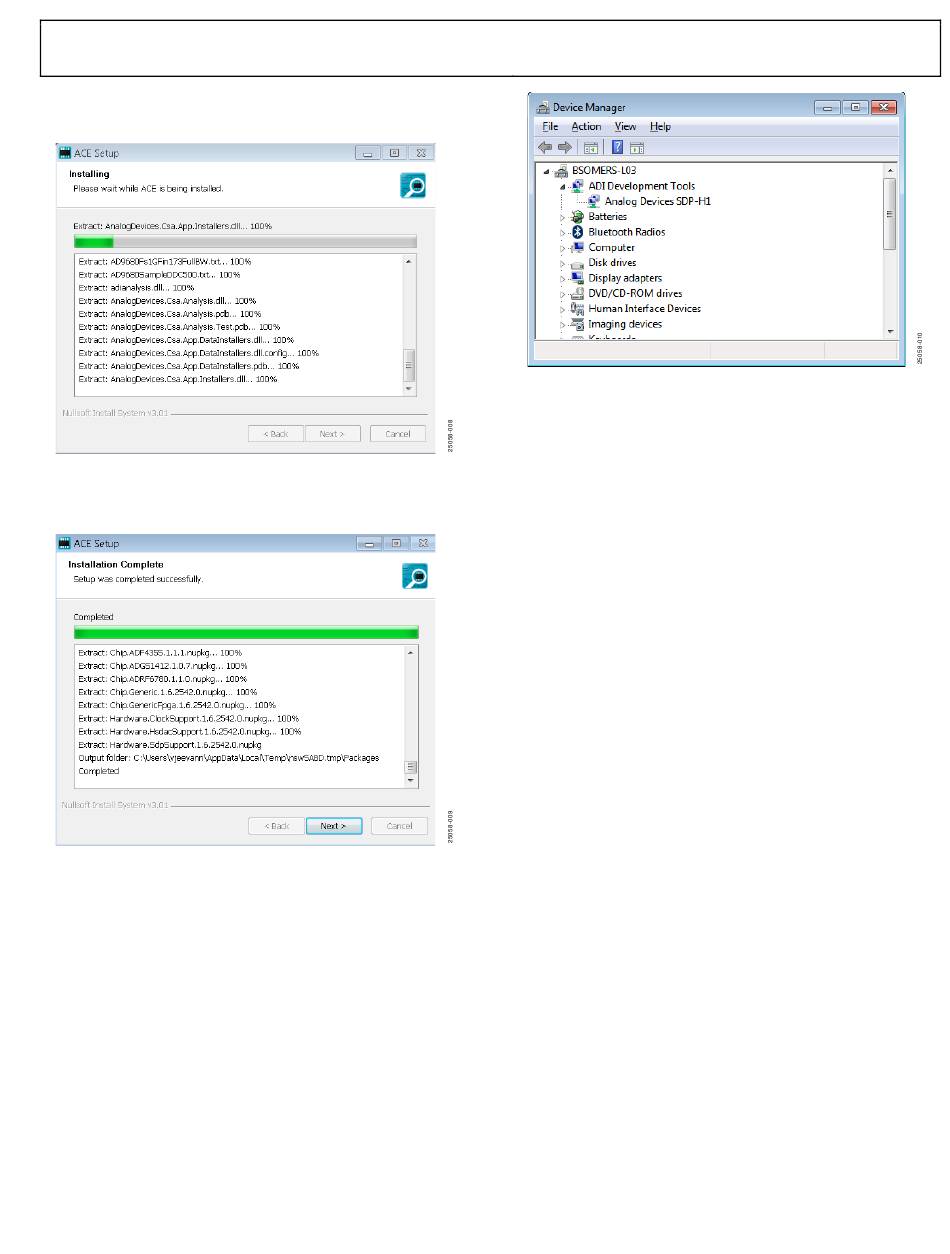

Figure 7. Installation in Progress
9.
When the installation is complete, click Next >, and then
click Finish to complete.
Figure 8. Installation Complete
When first plugging in the
SDP-H1
allow the Found Hardware Wizard to run. After the drivers are
installed, ensure that the SDP-H1 is connected properly by
looking at the Device Manager of the PC. The Device Manager
can be found by right clicking My Computer > Manage >
Device Manager from the list of System Tools.
The Analog Devices SDP-H1 appears under ADI Development
Tools, as shown in Figure 9.
User Guide
via the USB cable provided,
Installing and Updating the AD4696 ACE Plugin
After the EVAL-AD4696FMCZ and SDP-H1 boards are
properly connected to the PC as described in the Evaluation
Hardware Setup Procedure section, launch the
software. To install and update the
the following steps:
1.
From the Start menu, select All Programs > Analog Devices
> ACE > ACE.exe, which brings up the window shown in
Figure 13.
2.
To install the AD4696 ACE plugin, click Plug-in Manager on
the left of the ACE main window, as shown in Figure 10.
3.
Select the Available Packages drop down menu on the left
and search for AD4696 using the search text box on the
right, as shown in Figure 11 (the AD4696 plugin is not
shown as an option in Figure 11 because that plugin is not
released yet).
4.
Select the AD4696 plugin and click Install Selected at the
bottom of the plugin manager window to install the
AD4696 plugin.
ACE automatically checks for updates to all installed plugins
when launched, and displays a prompt to install updates when
available. To manually check for updates to the AD4696 plugin,
perform the following steps:
1.
Click the Plug-in Manager on the left of the ACE main
window, as shown in Figure 10.
2.
Select the Available Updates drop down menu on the left
and search for AD4696 using the search text box on the
right. If an update is available, it is shown in the list.
3.
Select the AD4696 plugin and click Update Selected at the
bottom of the plugin manager window to update the
AD4696 plugin, as shown in Figure 12 (the AD4696 plugin
is not shown as an option in Figure 12 because that plugin
is not released yet).
Rev. 0 | Page 11 of 28
Figure 9. Device Manager Window
AD4696
ACE plugin, perform
UG-1882
