EVAL-AD4696FMCZ
Capture Pane
General Capture Settings
The Sequence Count list box allows the user to select the
number of times to execute the configured channel sequence
per capture.
The user can enter the sample rate in kilosamples per second
(kSPS) in the Throughput (kSPS) box. Note that this box sets
the sample rate of the AD4696
signal frequency), whereas the effective sample rate for each
AD4696 channel depends on the sequencer configuration.
Device Configuration
The Sequencer Mode dropdown box allows the user to select
the desired sequencer mode.
User Guide

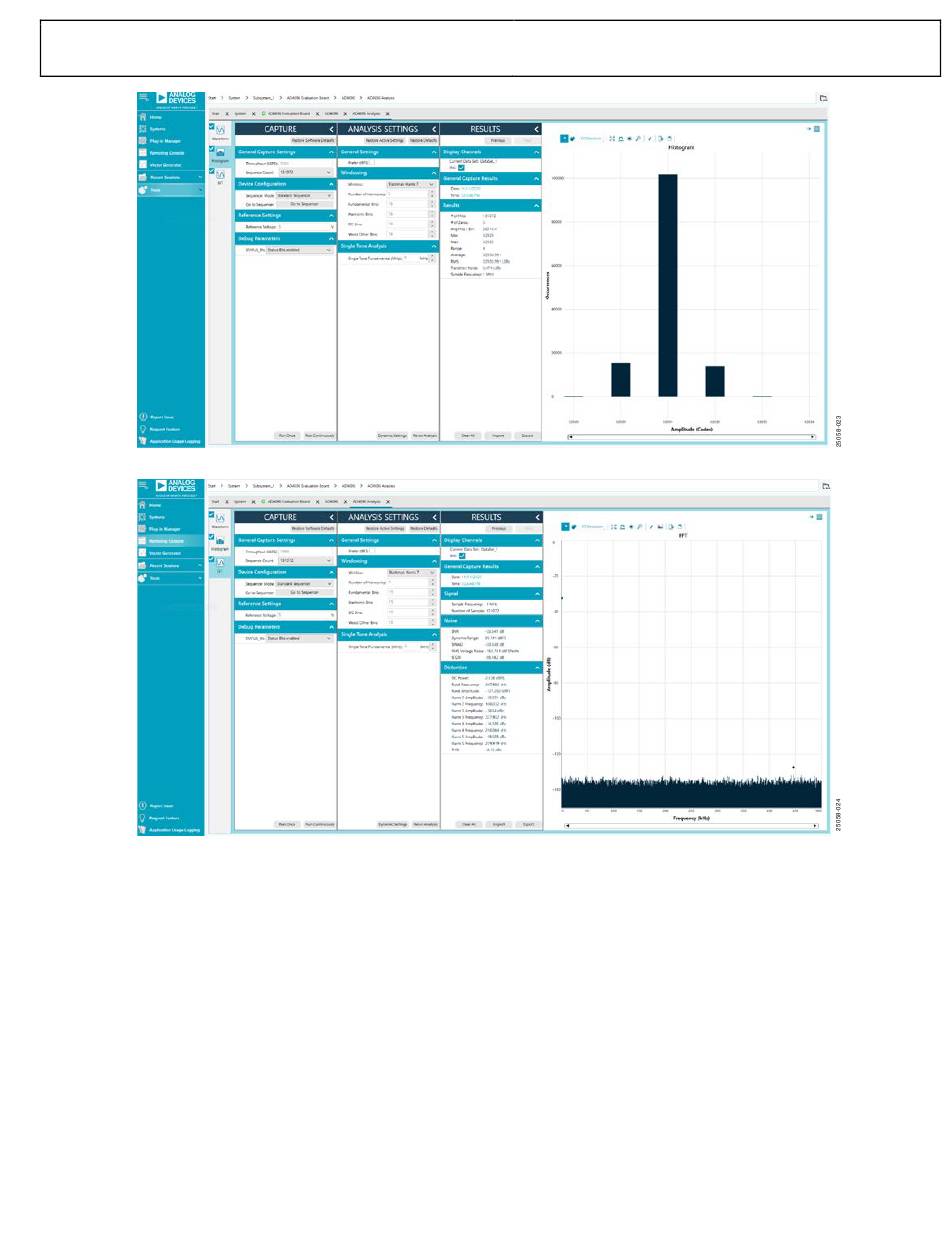

Figure 21. Histogram Tab
ADC core (for example, CNV
Figure 22. FFT Tab
Clicking the Go to Sequencer button opens either the standard
sequencer view or the advanced sequencer view based on the
value selected in the Sequencer Mode dropdown menu.
Reference Settings
Use the Reference Voltage text box to enter the value of the
reference voltage on the connected hardware. The Reference
Voltage box is used by the analysis math to convert between
ADC codes and equivalent input voltage. Changing the Reference
Voltage value does not modify any hardware or memory map
settings on the connected hardware. If the value in the Reference
Voltage box does not match the reference voltage used on the
connected hardware, the data in the Waveform graph is
incorrect when displayed in volts.
Rev. 0 | Page 19 of 28
UG-1882
