CHANNEL CONFIGURATION VIEW

The AD4696 ACE plugin includes a channel configuration view
that streamlines the configuration of the AD4696 analog input
channels. The channel configuration view is a GUI representation
of the channel settings for each of the 16 AD4696 channels
controlled via the device memory map.
Click the Configure Channels button in the chip view to open
the Channel Configuration view (see Figure 18).
The Channel Configuration view divides the various channel
configuration settings into different tabs based on which AD4696
channel they correspond to. Settings that are common to all
AD4696 channels are displayed in the All Channel Controls
section (see Figure 18 and Figure 19). Settings that are independent
for each individual channel (IN0 through IN15) are shown in
the Controls for Channel section (see Figure 18 and Figure 19).
User Guide

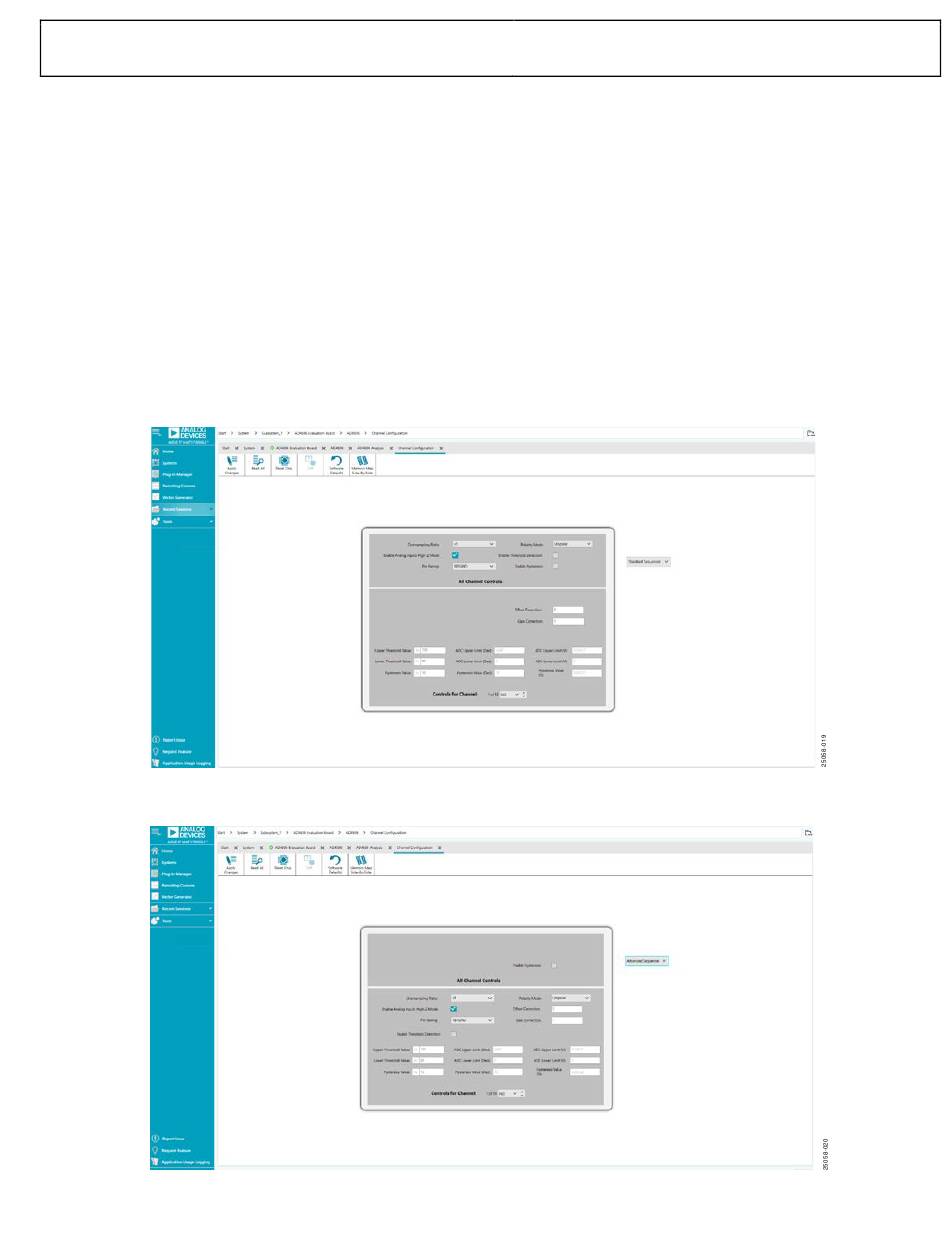

Figure 18. Channel Configuration View when Standard Sequencer Is Enabled
Figure 19. Channel Configuration View when Advanced Sequencer Is Enabled
The controls that are visible in the All Channel Controls tab vs.
the controls visible in the Controls for Channel tab depends on
the active sequencer mode (standard sequencer vs. advanced
sequencer) to reflect how these settings are applied differently
based on the channel sequencer mode. See the AD4696 data sheet
for a detailed description on how the channel sequencing mode
affects how channel configuration settings are applied to the 16
AD4696 channels.
The channel configuration settings for the connected device can
also be manually configured via the memory map view. Modifying
the state of the controls in the channel configuration view updates
the corresponding bit fields in the memory map view, and vice
versa. See the AD4696 data sheet for a detailed description of
the features accessible via the Channel Configuration view and
the corresponding register configuration settings.
