Levelflex M FMP41C PROFIBUS PA
"
Endress+Hauser

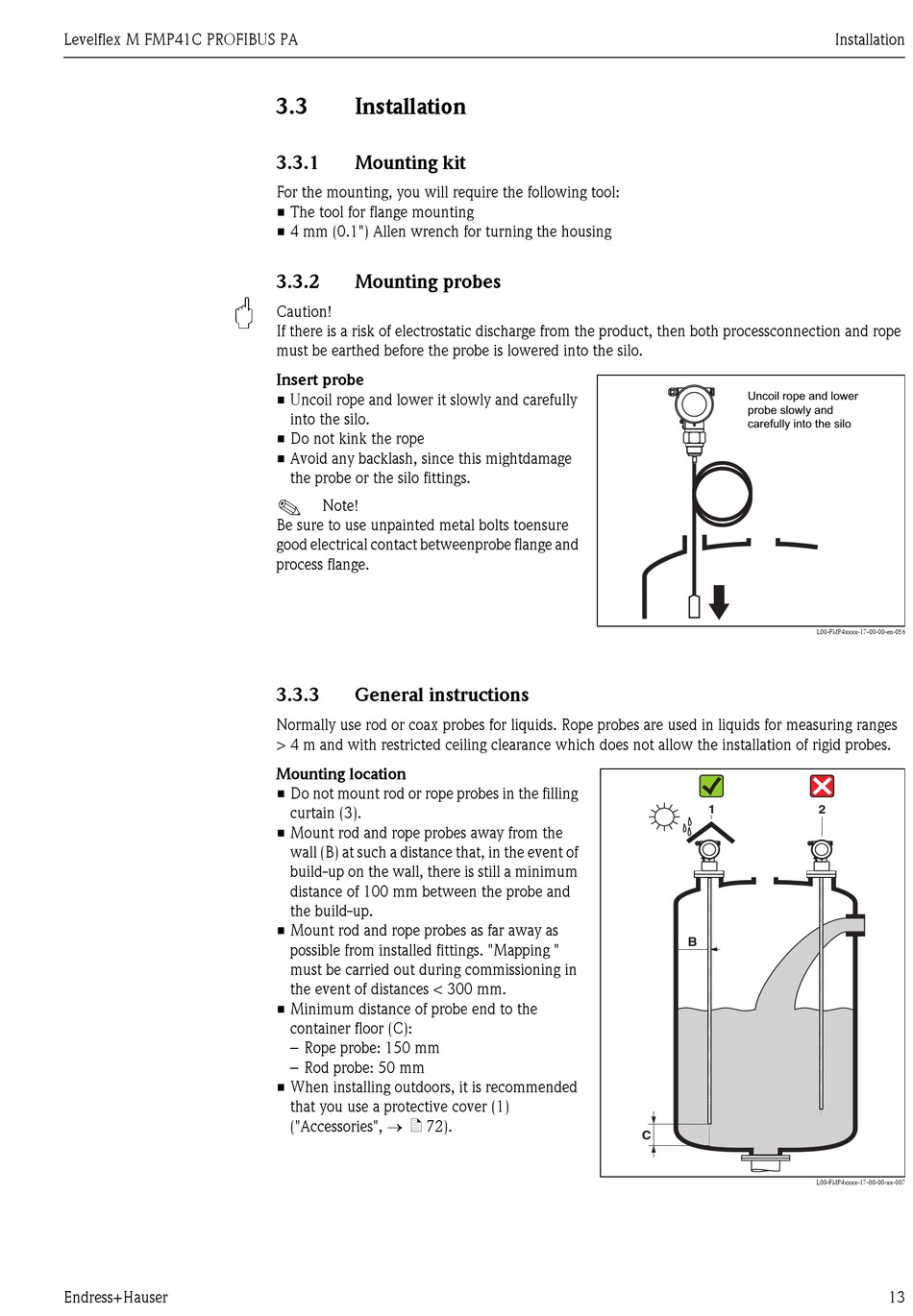

3.3

Installation

3.3.1 Mounting kit
For the mounting, you will require the following tool:
• The tool for flange mounting
• 4 mm (0.1") Allen wrench for turning the housing
3.3.2 Mounting probes
Caution!
If there is a risk of electrostatic discharge from the product, then both processconnection and rope
must be earthed before the probe is lowered into the silo.
Insert probe
• Uncoil rope and lower it slowly and carefully
into the silo.
• Do not kink the rope
• Avoid any backlash, since this mightdamage
the probe or the silo fittings.
!
Note!
Be sure to use unpainted metal bolts toensure
good electrical contact betweenprobe flange and
process flange.
3.3.3 General instructions
Normally use rod or coax probes for liquids. Rope probes are used in liquids for measuring ranges
> 4 m and with restricted ceiling clearance which does not allow the installation of rigid probes.
Mounting location
• Do not mount rod or rope probes in the filling
curtain (3).
• Mount rod and rope probes away from the
wall (B) at such a distance that, in the event of
build-up on the wall, there is still a minimum
distance of 100 mm between the probe and
the build-up.
• Mount rod and rope probes as far away as
possible from installed fittings. "Mapping "
must be carried out during commissioning in
the event of distances < 300 mm.
• Minimum distance of probe end to the
container floor (C):
– Rope probe: 150 mm
– Rod probe: 50 mm
• When installing outdoors, it is recommended
that you use a protective cover (1)
("Accessories", → ä 72).
Uncoil rope and lower
probe slowly and
carefully into the silo
1
B
C
Installation
L00-FMP4xxxx-17-00-00-en-056
2
L00-FMP4xxxx-17-00-00-xx-007
