Remote display and operation FHX40

Micropilot M
Levelflex M
Prosonic M
E N E N
D R D R
E S E S
O rd O rd
er er S + S +
C od C od H A H A
S er S er
.-N .-N e: e: U S U S
o. : o. : E R E R
M es M es
M ea M ea sb er sb er
ei ch ei ch
su rin su rin
g ra g ra
ng e ng e
U 16 U 16 m ax m ax
4. ..2 4. ..2 ... 36 ... 36 . 20 . 20
0 m 0 m V D V D m m
A A C C
IP
6 5
T T
A A >7 0° >7 0°
C : C :
t >8 t >8
5° C 5° C
mm (in)
Technical data (cable and housing) and product structure:
Max. cable length
Temperature range
Degree of protection
Materials
Dimensions [mm (in)]
010 Approval:
A Non-hazardous area
2 ATEX II 2G Ex ia IIC T6
3 ATEX II 2D Ex ia IIIC T80°C
G IECEx Zone1 Ex ia IIC T6/T5
S FM IS Cl. I Div.1 Gr. A-D, zone 0
U CSA IS Cl. I Div.1 Gr. A-D, zone 0
N CSA General Purpose
K TIIS Ex ia IIC T6
C NEPSI Ex ia IIC T6/T5
Y Special version, TSP-No. to be spec.
020 Cable:
1 20m / 65ft (> for HART)
5 20m / 65ft (> for PROFIBUS PA/FOUNDATION Fieldbus)
9 Special version, TSP-No. to be spec.
030 Additional option:
A Basic version
B Mounting bracket, pipe 1"/ 2"
Y Special version, TSP-No. to be spec.
FHX40 - Complete product designation
For connection of the remote display FHX40 use the cable which fits the communication version of
the respective device.

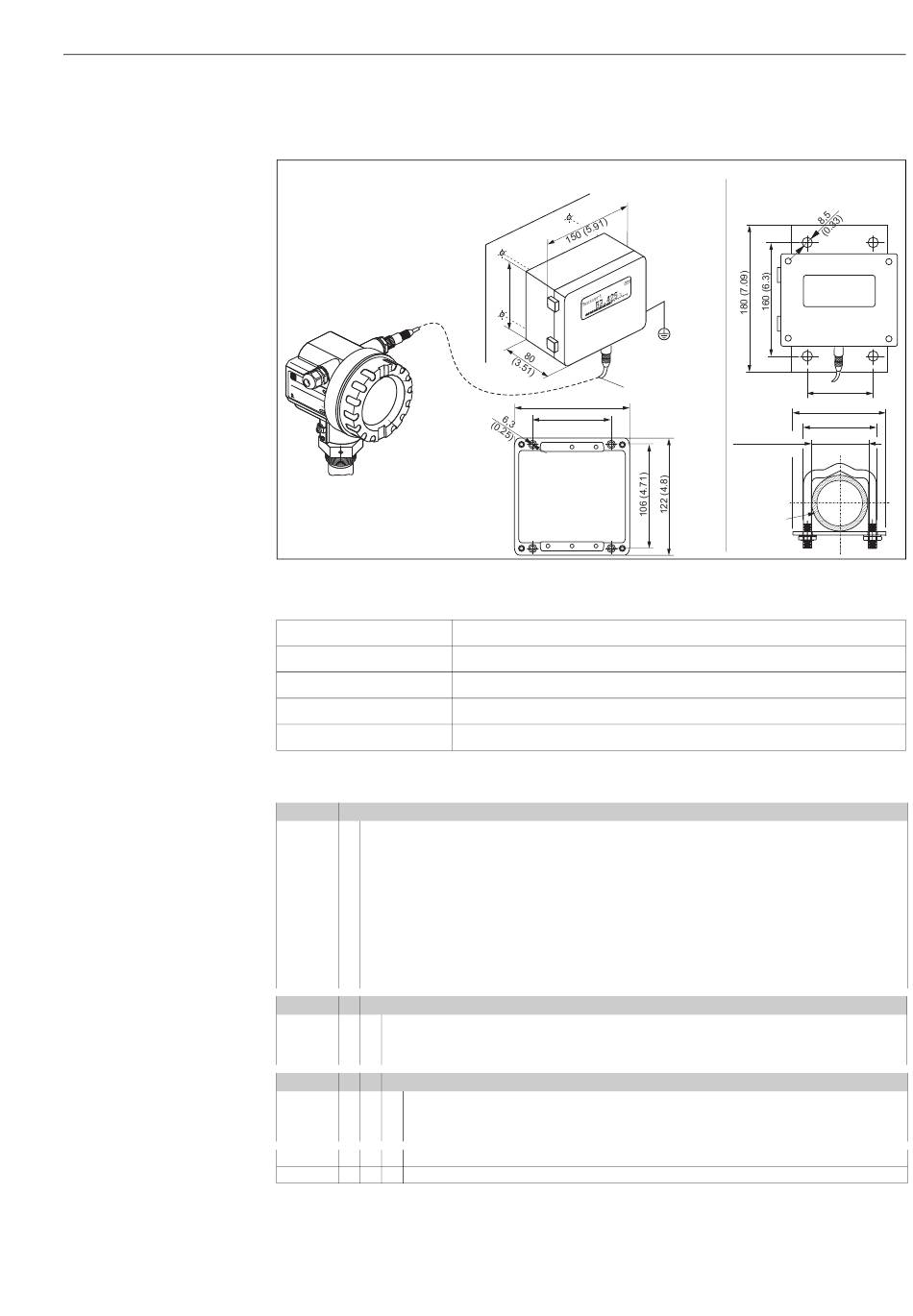

Wall-mounting
(without mounting bracket)
122
(4.8)
Cable
120 (4.72)
82 (3.23)
20 m (65 ft)
-30 °C to +70 °C (-22 °F to +158 °F)
IP65/67 (housing); IP68 (cable) acc. to IEC 60529
Housing: AlSi12; cable glands: nickle plated brass
122x150x80 (4.8x5.9x3.2) / HxWxD
(mounting bracket and plate
supplied optionally,
s. product structure)
Separate housing
FHX40 (IP 65)
max. 80 (3.15)
min. 30 (1.18)
pipe
Accessories
Pipe-mounting
88
118 (4.65)
96 (3.78)
L00-FMxxxxxx-00-00-06-de-005
73
