Levelflex M FMP41C PROFIBUS PA
!
Endress+Hauser

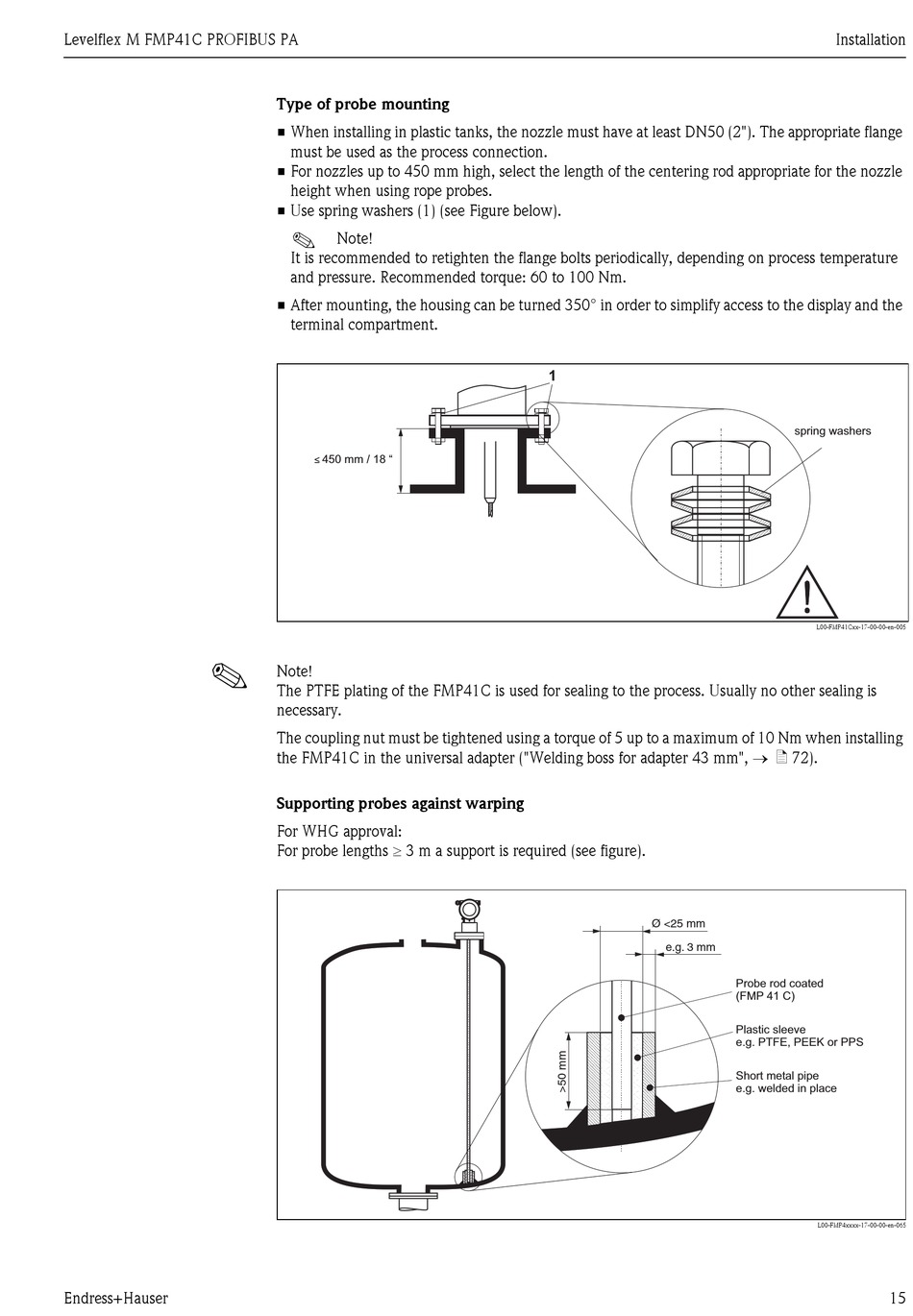

Type of probe mounting
• When installing in plastic tanks, the nozzle must have at least DN50 (2"). The appropriate flange
must be used as the process connection.
• For nozzles up to 450 mm high, select the length of the centering rod appropriate for the nozzle
height when using rope probes.
• Use spring washers (1) (see Figure below).
!
Note!
It is recommended to retighten the flange bolts periodically, depending on process temperature
and pressure. Recommended torque: 60 to 100 Nm.
• After mounting, the housing can be turned 350° in order to simplify access to the display and the
terminal compartment.
≤
450 mm / 18 "
Note!
The PTFE plating of the FMP41C is used for sealing to the process. Usually no other sealing is
necessary.
The coupling nut must be tightened using a torque of 5 up to a maximum of 10 Nm when installing
the FMP41C in the universal adapter ("Welding boss for adapter 43 mm", → ä 72).
Supporting probes against warping
For WHG approval:
For probe lengths ≥ 3 m a support is required (see figure).
1
Ø <25 mm
e.g. 3 mm
Installation
spring washers
L00-FMP41Cxx-17-00-00-en-005
Probe rod c oated
(FMP 41 C)
Plastic sleeve
e.g. PTFE, PEEK or PPS
Short metal pipe
e.g. welded in place
L00-FMP4xxxx-17-00-00-en-065
