Commissioning
!
60

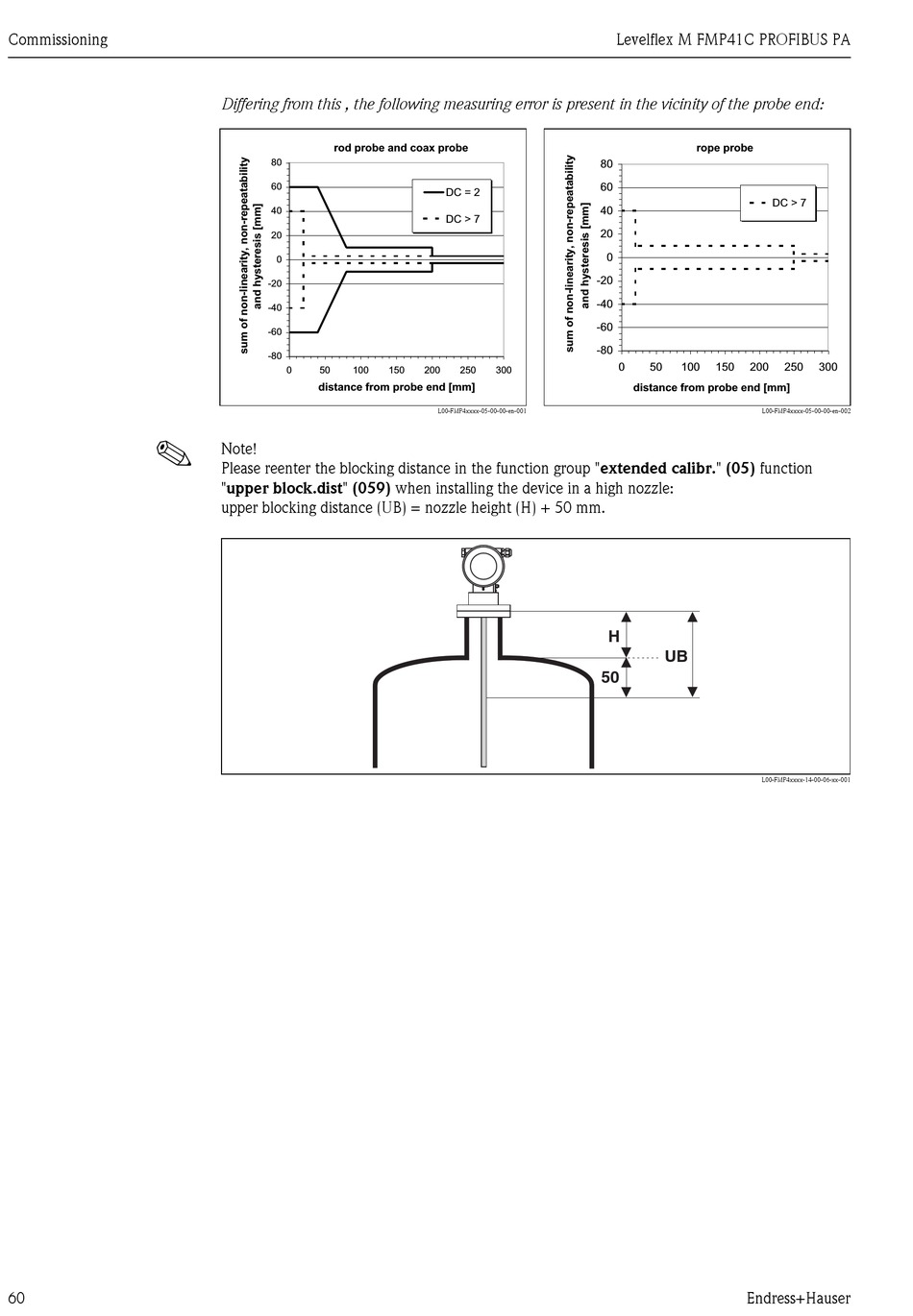

Differing from this , the following measuring error is present in the vicinity of the probe end:
rod probe and coax probe
80
60
40
20
0
-20
-40
-60
-80
0 50 100 150
distance from probe end [mm]
Note!
Please reenter the blocking distance in the function group "extended calibr." (05) function
"upper block.dist" (059) when installing the device in a high nozzle:
upper blocking distance (UB) = nozzle height (H) + 50 mm.
DC = 2
DC > 7
-20
-40
-60
-80
200 250 300
L00-FMP4xxxx-05-00-00-en-001
Levelflex M FMP41C PROFIBUS PA
rope probe
80
60
DC > 7
40
20
0
0 50 100 150 200
distance from probe end [mm]
L00-FMP4xxxx-05-00-00-en-002
H
UB
50
L00-FMP4xxxx-14-00-06-xx-001
