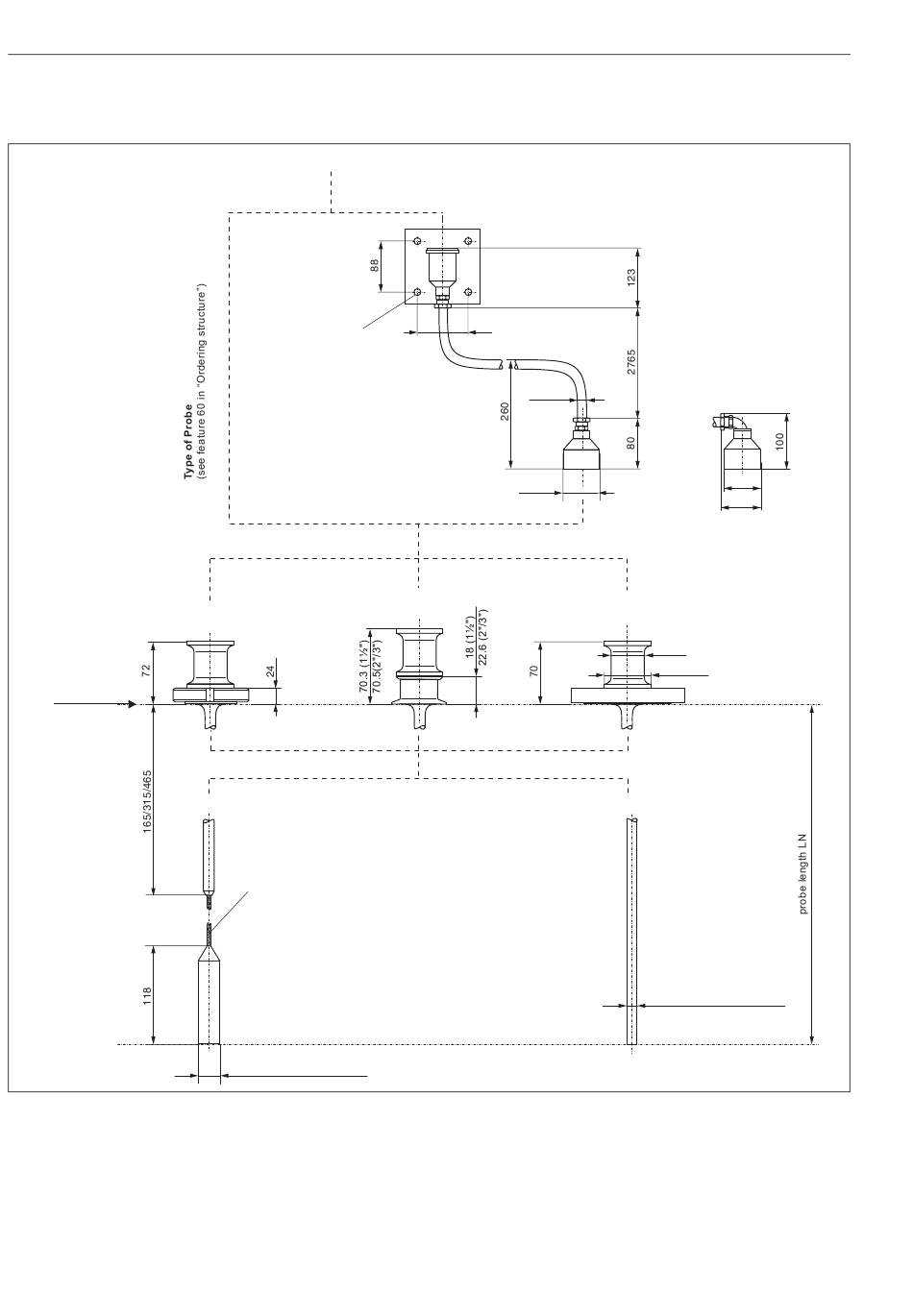

Installation
dairy coupling
reference point of
measurement
12
Process connection, probe type
F12 / T12 / F23 housing
4 x Ø 8,5
DN 50
rope probe
rope:
Ø 4 mm/0.20"
Ø 22/0.87" (incl. insulation)
Option "3"
/ "4"
:
remote electronic
top entry
88
Ø 21.3
Ø 76
1 ½"/2"/3"
Clamp
Levelflex M FMP41C PROFIBUS PA
Option "4":
remote electronic
side entry
Ø 76
Ø 81
Flange DN 40...200
or equivalent
Ø 42
Ø 60
rod probe
Ø 16/0.63" (incl. insulation)
Endress+Hauser
L00-FMP41xxx-06-00-00-en-001
