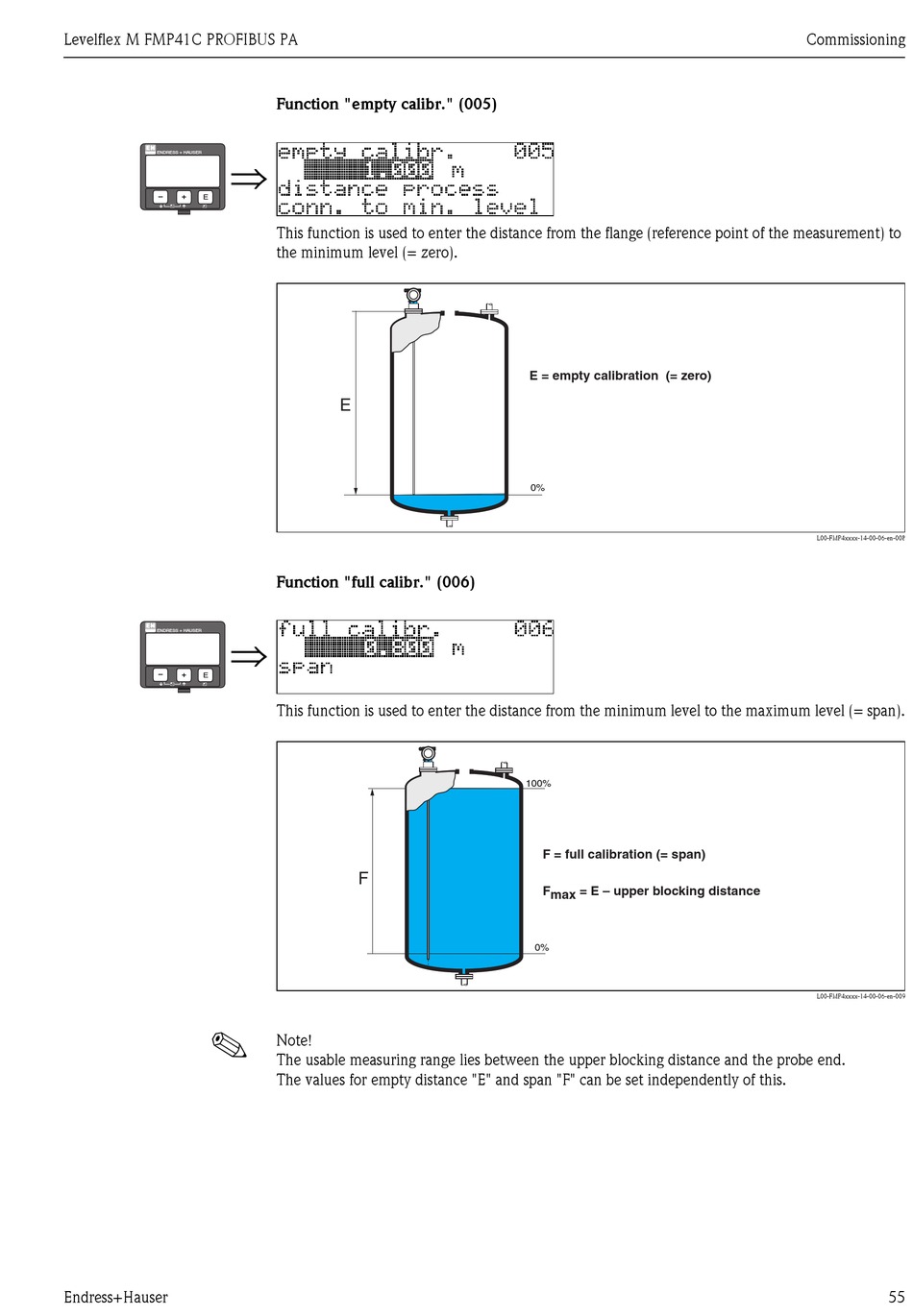

Function "empty calibr." (005)
This function is used to enter the distance from the flange (reference point of the measurement) to
the minimum level (= zero).
E
Function "full calibr." (006)
This function is used to enter the distance from the minimum level to the maximum level (= span).
F
Note!
The usable measuring range lies between the upper blocking distance and the probe end.
The values for empty distance "E" and span "F" can be set independently of this.
E = empty calibration (= zero)
0%
100%
F = full calibration (= span)
F max = E – upper blocking distance
0%
Commissioning
L00-FMP4xxxx-14-00-06-en-008
