Product Description
The OLF-5-TAK Tank Connection Kit 2.0 is used for rapid retrofitting of
bypass-flow filter units in hydraulic systems.
The Kit can be integrated in all systems equipped with a breather filter for
which the circuit diagram is executed in accordance with DIN 24557/T2.

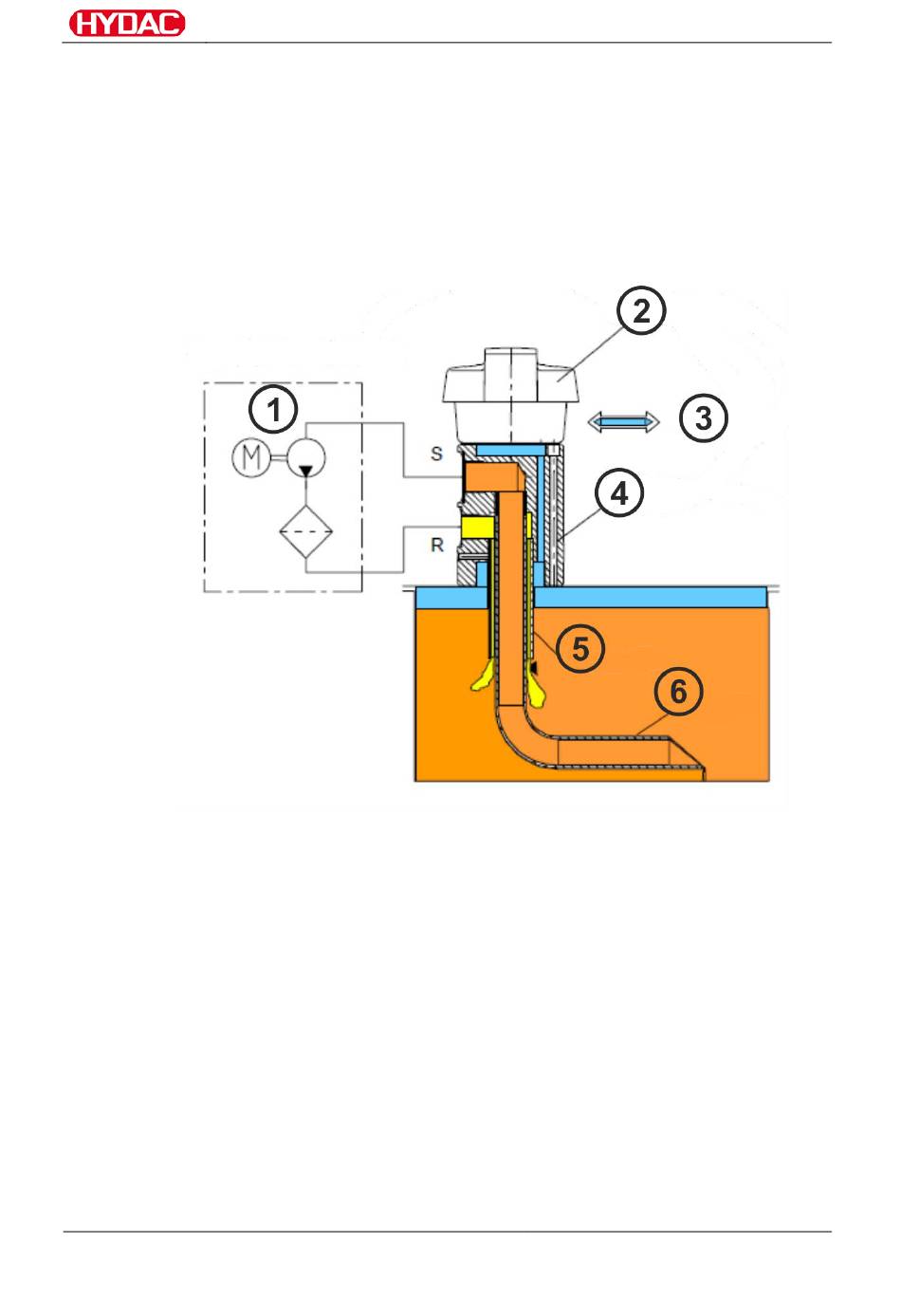

1
Bypass filtration unit
2
Breather filters
3
Tank breathing
4
Adapter
5
Return tube
6
Suction tube
S
Suction side
R
Return flow side
TAK
MoWa TAK 4406591 en-us 2018-08-13.docx
en(us)
Product Description
Page 7 / 16
2018-08-13
