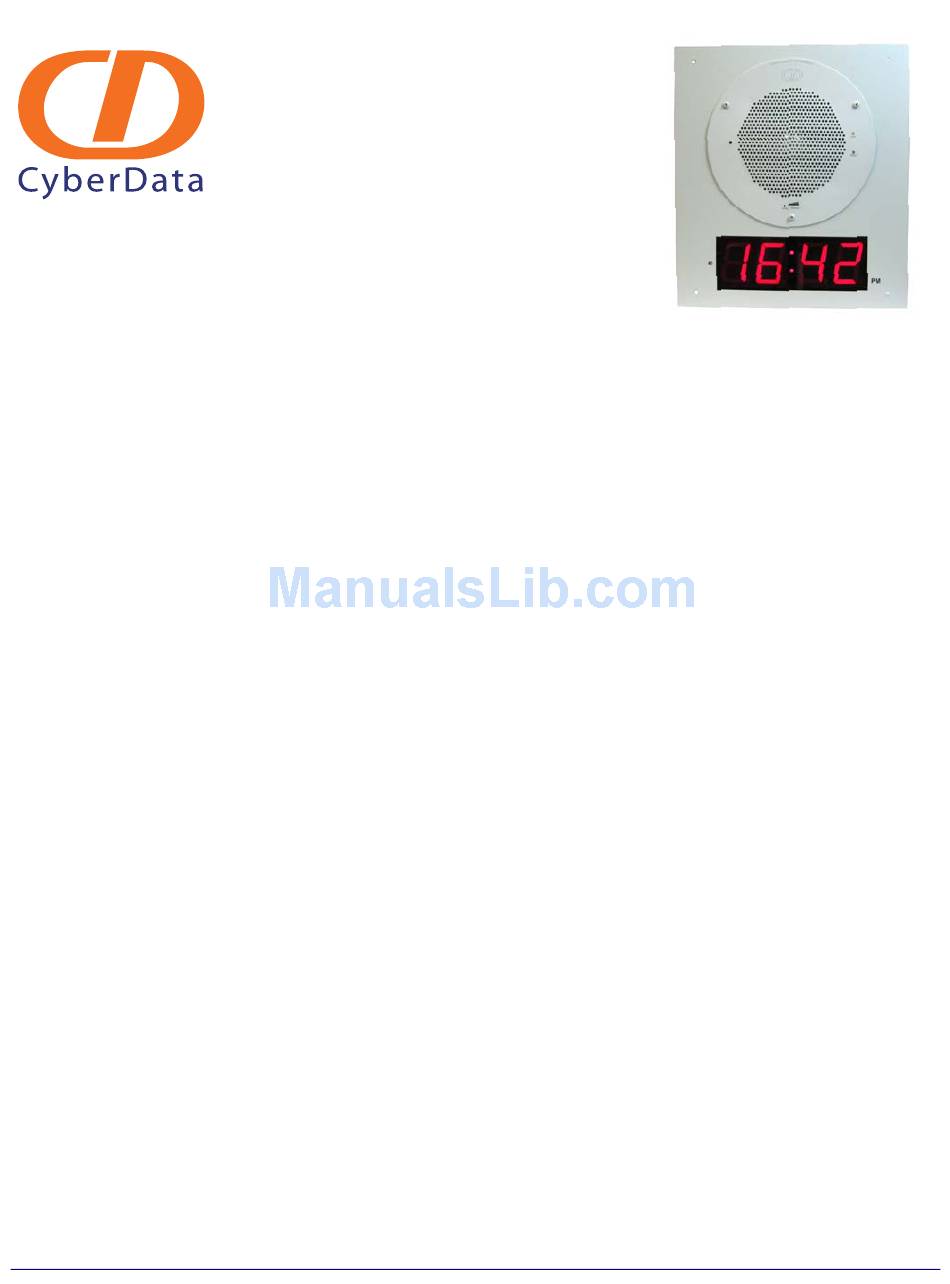

- Page 1 VoIP Clock Kit Flush Mount Adapter Operations Guide Part #011106*, RAL 9002, Gray White, Standard Part #011107, RAL 9003, Signal White, Optional *Replaces #011024 Document Part #930284G CyberData Corporation 2555 Garden Road Monterey, CA 93940 (831) 373-2601...
- Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
- Page 3 Figure 2-16, "VoIP Clock Kit Flush Mount Adapter Installation". • Updates the following text in Section 2.4, "Mounting the VoIP Clock Kit Flush Mount Adapter": “Install part number 611038 through the pre-cut drywall into the Atlas sound enclosure.” Operations Guide 930284G CyberData Corporation...
-
Page 4: Important Safety Instructions
Electrical Hazard: This product should be installed by a licensed electrician according to all local electrical and building codes. GENERAL ALERT Warning Electrical Hazard: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. GENERAL ALERT CyberData Corporation 930284G Operations Guide... - Page 5 Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons. CyberData Corporation 930284G Operations Guide...
-
Page 6: Table Of Contents
B.4.2 Warranty & RMA Returns Outside of the United States ............ 26 B.4.3 Spare in the Air Policy ......................27 B.4.4 Return and Restocking Policy ....................27 B.4.5 Warranty and RMA Returns Page ..................27 Index Operations Guide 930284G CyberData Corporation... -
Page 7: Chapter 1 Product Overview
1 Product Overview The Clock Kit enables the CyberData V2 VoIP Ceiling Speaker to be upgraded to a highly visible public address device with a time display. Note The Cyberdata speaker is not included with this kit. The large display characters are easily read and adjust for ambient light conditions. Time sync is performed by NTP and a built-in real -time clock. -
Page 8: How To Identify This Product
Figure 1-1. The model number on the label should be one of the following: • 011106*, RAL 9002, Gray White, Standard Color • 011107, RAL 9003, Signal White, Optional Color *Replaces 011024. Figure 1-1. Model Number Label WWW.CYBERDATA.NET... -
Page 9: Typical System Installation
1.2 Typical System Installation Figure 1-2 illustrates a typical installation for the SiP VoIP and PoE Speakers. Figure 1-2. Typical Installation Generic PoE Hub VoIP Clock Kit VoIP Clock Kit VoIP Clock Kit IP Phone IP PBX Server Operations Guide 930284G CyberData Corporation... -
Page 10: Product Features
Two years warranty ● Figure 1-3 shows the location of some of the features of the VoIP Clock Kit Flush Mount Adapter. Figure 1-3. Feature Locations CyberData Part #011098 or #011099 (sold separately) Ambient light detector PM LED Operations Guide... -
Page 11: Product Specifications
2 years limited Dimensions 13.5” [343mm] x 11.8” [300mm] x 5.4” [137mm] Weight 5.4 lbs. [2.45 kg] Part number 011106*, RAL 9002, Gray White, Standard Color 011107, RAL 9003, Signal White, Optional Color *Replaces 011024. Operations Guide 930284G CyberData Corporation... -
Page 12: Dimensions
Product Overview Dimensions 1.5 Dimensions Figure 1-4 shows the dimensions for the VoIP Clock Kit Flush Mount Adapter. Figure 1-4. Dimensions 2.5 [64] 11.6 [294] Figure 1-5. Dimensions 10.70 [271.8] Dimensions are in Inches [mm] Operations Guide 930284G CyberData Corporation... -
Page 13: Chapter 2 Installing The Voip Clock Kit Flush Mount Adapter
To enable the battery for real-time clock operation, install a jumper on JP1 as shown in Figure 2-13. Note This jumper ensures that the clock will not lose the time setting in the event of a power outage. Figure 2-6. Jumper JP1 Operations Guide 930284G CyberData Corporation... -
Page 14: Moving The Clock Connector Cover Plate
Pre-Mounting Connections 2.1.2 Moving the Clock Connector Cover Plate Move the clock connector cover plate to prepare the Clock Kit for pre-mounting connections. Figure 2-7. Figure 2-7. Moving the Clock Connector Cover Plate Cover plate Operations Guide 930284G CyberData Corporation... -
Page 15: Connecting The Clock To The Speaker
3. Screw and tighten the cover screws to secure the cover plate in place. 2.1.3 Connecting the Clock to the Speaker Figure 2-7 illustrates how to connect the ribbon cable to the clock and the speaker. Figure 2-8. Connecting the Clock to the Speaker Operations Guide 930284G CyberData Corporation... -
Page 16: Connecting Power To The Speaker
Prior to mounting, you can route the Ethernet cable through the back or through the slots at Note the top or bottom of the Flush Mount Adapter. Figure 2-9. Connecting Power—PoE To PoE Network Operations Guide 930284G CyberData Corporation... - Page 17 Installing the VoIP Clock Kit Flush Mount Adapter Pre-Mounting Connections Figure 2-10. Connecting Power—Optional Power Injector To Network Ethernet Optional power injector (CyberData # 010867A) Device Operations Guide 930284G CyberData Corporation...
-
Page 18: Verifying Operation Of The Clock Kit Adapter
Prior to mounting, you can route the Ethernet cable through the back or through the slots at the top or bottom of the Flush Mount Adapter. Figure 2-11. Connecting Power To Network Ethernet Optional power injector (CyberData # 010867A) Device Operations Guide 930284G CyberData Corporation... - Page 19 This would normally occur at manufacturing first Power On, or at subsequent Power On if the battery was low or dead. If it occurs more frequently, contact CyberData support. Note: If there is an Invalid Time Error, then you will see E 01 on the display for one second and the time will be reset to 00:00.
-
Page 20: Identifying The Voip Clock Kit Jumpers
Prior to installing the Clock Kit, make sure that JP1 is installed. This powers the Real Time Clock from the battery. If you do not, the clock will loose it's time when the power is disconnected. Operations Guide 930284G CyberData Corporation... -
Page 21: The Clock Kit Adapter Battery
To enable the battery for real-time clock operation, install a jumper on JP1 as shown in Figure 2-13. This jumper ensures that the clock will not lose the time setting in the event of a power Note outage. Figure 2-13. Jumper JP1 Operations Guide 930284G CyberData Corporation... -
Page 22: Checking The Battery Power Level Of The Flush Mount Adapter
Note If there is an Invalid Time Error, then you will see E 01 on the display for one second and the time will be reset to 00:00. Operations Guide 930284G CyberData Corporation... -
Page 23: Replacing The Clock Kit Battery
The Lithium-Ion CR-123 battery in the Flush Mount Adapter should last for approximately seven years. 2.3.3.3 Replacing the Battery Figure 2-14 Figure 2-15 illustrates how to locate and replace the Clock Kit battery. Figure 2-14. Clock Kit Battery Location Operations Guide 930284G CyberData Corporation... -
Page 24: Seconds Digits Blinking Fast
Figure 2-15. Clock Kit Battery Replacement Positive (+) 2.3.4 Seconds Digits Blinking Fast If the seconds digits on the Clock Kit display are blinking fast, then this means that the speaker has not communicated for more than one hour. Operations Guide 930284G CyberData Corporation... -
Page 25: Mounting The Voip Clock Kit Flush Mount Adapter
Table 2-3. Drywall Mounting Kits Parts Quantity Part Name Illustration (1) Template for Flush Mount Adapter and Screw Holes (1) Flush Mount Adapter No. 10-12 x 1.25-inch Pan Head Phillips Screws a.This part is located on the Quick-Reference placemat. Operations Guide 930284G CyberData Corporation... -
Page 26: Atlas® Fest-18Sc Parts
No. 10-12 x 1.25-inch Pan Head Phillips Screws a.This part is not included with the Clock Kit Adapter or V2 Speaker. b.This part comes with the ATLAS FEST-18SC and is not included with the Clock Kit Adapter or V2 Speaker. Operations Guide 930284G CyberData Corporation... -
Page 27: Mounting
Part Number 611038 not included with the Clock Kit) (3) 8-32 x 1 1/4” Mounting Step 4 Step 2 Screws (from the Ceiling Speaker Drop Ceiling Mounting Kit) 2. Assemble the ATLAS FEST-18SC sound enclosure. Operations Guide 930284G CyberData Corporation... -
Page 28: Uploading The Firmware
Depending on which speaker you are using, please see one of the following documents: VoIP V2 Speaker Operation Guide ● ● VoIP V2 Talkback Speaker Operation Guide These documents are available at the following website addresses: http://www.cyberdata.net/products/voip/digitalanalog/ceilingspkr2/docs.html http://www.cyberdata.net/products/voip/digitalanalog/ceilingspkr2talk/docs.html Operations Guide 930284G CyberData Corporation... -
Page 29: Confirm That The Speaker Is Operational And Linked To The Network
Depending on which speaker you are using, please see one of the following documents: VoIP V2 Speaker Operation Guide ● ● VoIP V2 Talkback Speaker Operation Guide These documents are available at the following website addresses: http://www.cyberdata.net/products/voip/digitalanalog/ceilingspkr2/docs.html http://www.cyberdata.net/products/voip/digitalanalog/ceilingspkr2talk/docs.html Operations Guide 930284G CyberData Corporation... -
Page 30: Appendix A Setting Up A Tftp Server
1. Install and start the software. 2. Select File Configure Security tab Transmit Only. 3. Make a note of the default directory name, and then move the firmware files to be uploaded to that directory. Operations Guide 930284G CyberData Corporation... -
Page 31: Appendix B Troubleshooting/Technical Support
Appendix B: Troubleshooting/Technical Support B.1 Frequently Asked Questions (FAQ) Go to the following URL to find a CyberData product and its list of frequently asked questions: http://www.cyberdata.net/products/voip/digitalanalog/clockkit/faqs.html B.2 Documentation The documentation for this product is released in an English language version only. You can download PDF copies of CyberData product documentation at: http://www.cyberdata.net/products/voip/digitalanalog/clockkit/docs.html... -
Page 32: Warranty
Warranty RMA Status Form If you need to inquire about the repair status of your product(s), please use the CyberData RMA Status form at the following web address: http://www.cyberdata.net/support/rmastatus.html B.4 Warranty CyberData warrants its product against defects in material or workmanship for a period of two years from the date of purchase. -
Page 33: Spare In The Air Policy
B.4.3 Spare in the Air Policy CyberData now offers a Spare in the Air no wait policy for warranty returns within the United States and Canada. More information about the Spare in the Air policy is available at the following web address: http://www.cyberdata.net/support/warranty/spareintheair.html... -
Page 34: Index
9 pre-mounting 7 connector locations 14 contact information 25 contact information for CyberData 25 network link activity, verifying 23 cover removing the connection cover from the speaker 7 CyberData contact information 25 operation... - Page 35 & RMA returns outside of the United States 26 product specifications 5 warranty & RMA returns within the United States 26 warranty and RMA returns page 27 warranty policy at CyberData 26 weight 5 Windows, setting up a TFTP server on 24 return and restocking policy 27...
