- Page 1 User Manual PT-PSW-42 User Manual Teleconference Switcher Multiformat Scaling, 4K (30Hz 4:4:4), USB Extension and System Control Model PT-PSW-42 Designed in Germany © 2017 PureLink GmbH All rights reserved. VersionV1.0...
-
Page 2: Fcc Statement
User Manual PT-PSW-42 Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 PT-PSW-42 REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-PSW-42 complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-PSW-42 complies with Directives 2014/30/EU and 2014/35/EU.
-
Page 4: Safety Precautions
User Manual PT-PSW-42 SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment. -
Page 5: Table Of Contents
User Manual PT-PSW-42 Contents Introduction ..........................1 Introduction to PT-PSW-42 .................... 1 Feature ..........................1 Package List ........................2 Panel Description ........................3 Transmitter ......................... 3 Front Panel ......................3 Rear Panel ....................... 4 Receiver ..........................5 Front Panel ......................5 Rear Panel ....................... - Page 6 User Manual PT-PSW-42 Auto Power-off Setup ..................17 CEC Command ....................18 Relay Control ...................... 19 EDID Configuration ................... 19 Device Setup ....................... 19 OSD Control ..........................20 Picture ..........................20 Setup ..........................21 GUI Control ..........................23 Control Menu ........................24 Configuration Menu .......................25 RS232 Control Menu......................28...
-
Page 7: Introduction

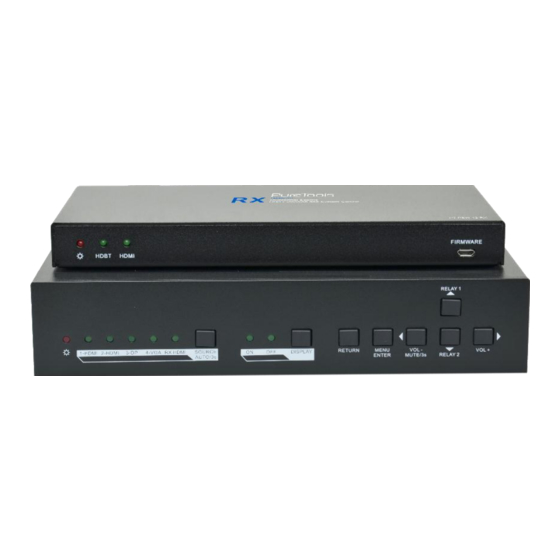

PT-PSW-42 Introduction Introduction to PT-PSW-42 This PT-PSW-42 is a conferencing system codec kit supporting resolutions up to 4K@30Hz 4:4:4 and HDCP 2.2. It includes Transmitter and Receiver, providing AV switching, resolution converting ranging from 720p to 3840x2160@30Hz, audio de- embedded, and USB extension, plus system control. All video, audio, control, USB and Ethernet signals can be transmitted over a single CATx cable up to 100m. -
Page 8: Package List
Ensures EDID communication between sources and display. Relay commands can be triggered to control relay devices such as the projector. Package List 1 x PT-PSW-42-TX Transmitter 2 x Mounting Ears with 4 Screws Transmitter 4 x Plastic Cushions ... -
Page 9: Panel Description
User Manual PT-PSW-42 Panel Description Transmitter Front Panel RELAY 1 1-HDMI 2-HDMI 3-DP 4-VGA RX HDMI SOURCE RETURN MENU VOL - DISPLAY VOL + AUTO/3s ENTER MUTE/3s RELAY 2 ① POWER LED: The LED illuminates red when power is applied, or orange when the auto-switching mode is chosen. -
Page 10: Rear Panel
User Manual PT-PSW-42 ⑥ VOL-/MUTE: Press this button to turn down the audio output volume, or long- press 3 seconds or more to mute / Left key for OSD. ⑦ RELAY 1: Press this button to raise projector screen. / Up key for OSD. -
Page 11: Receiver
User Manual PT-PSW-42 TCP/IP: RJ45 connector, connect with PC to control this system via web-based GUI. LAN: Ethernet port for extending network signal. Note: Please notice warning signs. The LAN port can’t be connected with HDBT port. FIRMWARE: Type-A USB port for updating system firmware or loading ... -
Page 12: Rear Panel
User Manual PT-PSW-42 Rear Panel Relay1 Relay2 HDBT IN HDMI IN HDMI OUT AUDIO OUT DEVICES CONTROL ① HDBT IN: Connect to the HDBT OUT port on Transmitter via CAT5e/6a/7 cable, support PoC technology. ② HDMI IN: HDMI input port. -
Page 13: System Connection
User Manual PT-PSW-42 System Connection Usage Precaution System should be installed in a clean environment, preferably at ambient temperature or within given working temperature range (see page 32 &33 for limits). All of the power switches, plugs, sockets and power cords should be insulated. -
Page 14: Button Control
User Manual PT-PSW-42 Button Control Front panel buttons can be used for signal switching, OSD, volume adjusting. Manual Switching Press the SOURCE/AUTO button to select one input source for Transmitter, press again to select next source, switching sequentially between 1-HDMI, 2-HDMI, 3-DP and 4-VGA. -
Page 15: Auto Switching
User Manual PT-PSW-42 Follow the below steps to switch to the status 2 from status 1. Press the SOURCE/AUTO button once to select 2-HDMI, and then release this ① button. Press the SOURCE/AUTO button continuously until the RX HDMI LED illuminates ②... -
Page 16: Volume Adjustment
User Manual PT-PSW-42 Note: Auto-switching function works only when inputting new signal, removing a signal or power rebooting. The HDMI input source on Receive cannot be selected under auto-switching mode. Volume Adjustment The Receiver features audio output ports for connecting speaker or AV amplifier. -
Page 17: Rs232 Control
User Manual PT-PSW-42 RS232 Control As RS232 commands can be transmitted to Receiver from the Transmitter, so it is able to control the Transmitter or the third-party device (such as projector) on Receiver from local. The baud rate support 2400, 4800, 9600(default), 19200, 38400, 57600 or 115200. -
Page 18: Rs232 Control Software
User Manual PT-PSW-42 Control Third-party Device CONTROL PC 1 PC 2 DEVICE 1 DEVICE 2 RS232 TCP/IP FIRMWARE HDBT 1-HDMI 2-HDMI 3-DP 4-VGA AUDIO HDMI Relay1 Relay2 HDBT IN CONTROL DC 12V HDMI IN HDMI OUT L+R OUT DEVICES... - Page 19 User Manual PT-PSW-42 The interface of the control software is showed as below: Parameter Configuration area Monitoring area, indicates if the command sent works. Command Sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in Command Sending Area.
-
Page 20: Rs232 Command
User Manual PT-PSW-42 RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none The end mark of command is “<CR><LF>”. Source Switching Command Function Feedback Example SWIN H1 Switch to 1-HDMI input. -
Page 21: Audio Adjusting
User Manual PT-PSW-42 Audio Adjusting Command Function Feedback Example Audio Mute Source: AUMT S1 Mute source audio. Enable Audio Mute Source: AUMT S0 Unmute source audio. Disable AUMT V1 Mute VGA auxiliary input audio. Audio Mute VGA: Enable Audio Mute VGA: AUMT V0 Unmute VGA auxiliary input audio. -
Page 22: Output Resolution
User Manual PT-PSW-42 Output Resolution The default output resolution is 3840x2160@30Hz. Below is a list of the output resolutions the built-in scaler can output. Command Function Feedback Example Set the output resolution for TX Device Resolution: TRES 01 Transmitter to 3840x2160@30Hz. -
Page 23: Auto Power-Off Setup
User Manual PT-PSW-42 Auto Power-off Setup Command Function Feedback Example Auto Switch Mode no input to shutdown time: Disable ?GET TIME Check the auto power-off mode. Manual Switch Mode no input to shutdown time: Disable Auto Switch Mode no Auto Switch Mode: Disable the auto... -
Page 24: Cec Command
User Manual PT-PSW-42 Command Function Feedback Example Manual Switch Mode no Manual Switch Mode: Set the power-off TIME M2 input to shutdown time: time to 2 minute. 2 minutes Manual Switch Mode no Manual Switch Mode: Set the power-off TIME M3 input to shutdown time: time to 5 minute. -
Page 25: Relay Control
User Manual PT-PSW-42 Relay Control Command Function Feedback Example RLY1 ON Turn on the Relay 1. Relay 1 on RLY1 OFF Turn off the Relay 1. Relay 1 off RLY2 ON Turn on the Relay 2. Relay 2 on RLY2 OFF Turn off the Relay 2. -
Page 26: Osd Control
User Manual PT-PSW-42 OSD Control The system provides a powerful OSD operation menu, including picture settings and system setup. Operation: Press the button MENU/ENTER to enter OSD menu. Press direction buttons (Left/Right/Up/ down) to select function on OSD menu. -
Page 27: Setup
User Manual PT-PSW-42 Color Mode: Including Cool, Medium, Warm and User. And only in User mode, it is able to set values for Red, Green and Blue (RGB). Advanced: Including H-Pos, V-Pos, Clock, Phase, and Auto. Zoom Mode: Including Normal, Zoom, Cinema, Wide, Point to Point. - Page 28 User Manual PT-PSW-42 TX Resolution: Set the output resolutions for Transmitter, and it support 3840x2160@30Hz, 1920x1080, 1280x720. TX Resolution: Set the output resolutions for Receiver, and it support 3840x2160@30Hz, 1920x1080, 1280x720. SW Version: Software version. ...
-
Page 29: Gui Control
User Manual PT-PSW-42 GUI Control In addition to control the system via front panel button and RS232 control software. The system can be controlled via web-based GUI. It allows users to interact with the system through graphical icons and visual indicators. -
Page 30: Control Menu
User Manual PT-PSW-42 Control Menu Type the default user name and password, and then click Login to enter the control menu shown as below: Sources: Click the corresponding button (1-HDMI, 2-HDMI, 3-DP, 4-VGA and RX HDMI) to select video input source. -
Page 31: Configuration Menu
User Manual PT-PSW-42 Configuration Menu Setting ① Click on control menu to enter configuration menu shown as below: Output Resolution: Select the output resolution for Transmitter or Receiver. Update: EDID: Insert the USB flash disk with EDID file to the FIRMWARE port of Transmitter, and then click EDID button to start update procedure. - Page 32 User Manual PT-PSW-42 RX Firmware: Insert the USB flash disk with software updating file to the FIRMWARE port of Receiver, and then click RX Firmware button to start update procedure. Shutdown Time (NO Input): Set the auto power-off time or manual power-off time, including none, 1 minute, 2minutes, 5minutes and 10 Minutes.
- Page 33 User Manual PT-PSW-42 Source ③ Click Source Label to enter the below menu to rename the input selection buttons.
-
Page 34: Rs232 Control Menu
User Manual PT-PSW-42 RS232 Control Menu Click RS232 Control on the top of interface to enter the below menu to send ① commands to control far-end third-party device. Status: Local: Refers to the RS232 port of the Transmitter. - Page 35 User Manual PT-PSW-42 Click RX DISPLAY to enter the below menu to set the ON/OFF button function to ② turn on/ off the display device (such as projector). Status: ON or OFF can be chosen. Baud Rate: Supports 2400、4800、9600、19200、38400、57600、115200.
-
Page 36: Password Menu
User Manual PT-PSW-42 Password Menu Click Password on the top of interface to enter the below menu to reset the username and password. -
Page 37: Gui Update
User Manual PT-PSW-42 GUI Update Web-based GUI for the Scaler Switcher supports online update in http://192.168.0.178:100. Type the username and password (the same as the GUI log- in settings, modified password will be available only after rebooting) to log in the configuration interface. -
Page 38: Specification
User Manual PT-PSW-42 Specification Transmitter Video (2) HDMI; (1) DP; (1) VGA Video Input (2) Female HDMI; (1) DisplayPort; (1) Female VGA Video Input Connector (15-pin) (1) HDMI; (1) HDBaseT Video Output Video Output Connector (1) Female HDMI; (1) RJ45... -
Page 39: Receiver
User Manual PT-PSW-42 Receiver Video Video Input (1) HDBT; (1) HDMI Video Input Connector (1) RJ45; (1) Female HDMI Video Output (1) HDMI Video Output Connector (1) Female HDMI Supports 3840x2160@30Hz, 1920x1080, 1280x720 Output Resolution Standards Compliant with HDMI 1.4 & HDCP2.2... -
Page 40: Panel Drawing
User Manual PT-PSW-42 Panel Drawing CONTROL PC 1 PC 2 DEVICE 1 DEVICE 2 RS232 TCP/IP FIRMWARE HDBT 1-HDMI 2-HDMI 3-DP 4-VGA AUDIO HDMI INPUT OUTPUT DC 24V 220.0 mm RELAY 1 1-HDMI 2-HDMI 3-DP 4-VGA RX HDMI SOURCE DISPLAY... -
Page 41: Troubleshooting & Maintenance
User Manual PT-PSW-42 Troubleshooting & Maintenance Problems Causes Solutions Bad quality of the Try another high quality cable. connecting cable. Output image with snowflake. Fail or loose Make sure the connection is connection. good Check with oscilloscope or No signal at the multimeter if there is any input / output end. -
Page 42: After-Sales Service
User Manual PT-PSW-42 After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 43 User Manual PT-PSW-42...
- Page 44 User Manual PT-PSW-42 Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
