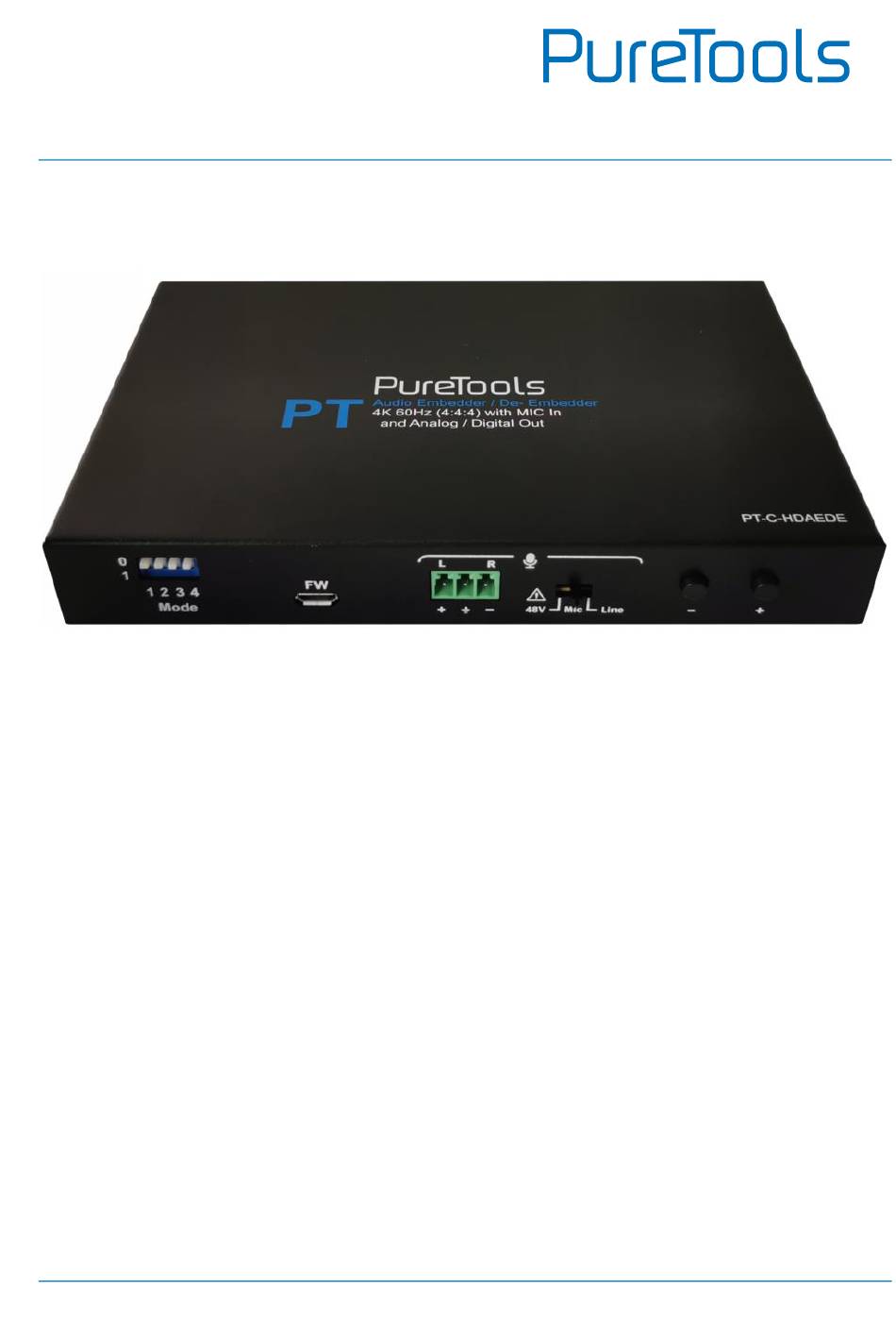

- Page 1 User Manual PT-C-HDAEDE User Manual HDMI Audio Embedder and De-Embedder 4K (60Hz 4:4:4) Model PT-C-HDAEDE Designed in Germany © 2021 PureLink GmbH All rights reserved. VersionV1.0...
-
Page 2: Fcc Statement
User Manual PT-C-HDAEDE Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 PT-C-HDAEDE REACH | 2020/171/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-C-HDAEDE complies with Directives 2020/171/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-C-HDADE complies with Directives 2014/30/EU and 2014/35/EU.
-
Page 4: Safety Precautions
User Manual PT-C-HDAEDE SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing ⚫ material for possible future shipment. -
Page 5: Package Contents

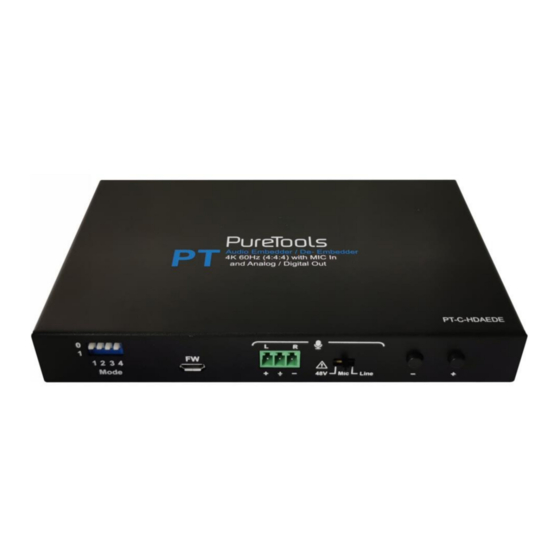

PT-C-HDAEDE Introduction to PT-C-HDAEDE The PT-C-HDAEDE is an Audio Embedder / De Embedder supporting 4K@60Hz (4:4:4) HDMI. It enables the complex manipulation of Audio signals including Mic/Line In mixing, and/or replacement of an HDMI audio signal. As well as headless audio output of HDMI audio and balanced / digital de-embedding of all audio signals. -
Page 6: Panel Description
User Manual PT-C-HDAEDE Panel Description Front Panel Number Description Function index description Bit1: Audio 0: Mute 3 pin phoenix input embed control 1: Activate 3 pin phoenix input Bit2: HDMI Input 0: Mute HDMI input audio audio control 1: Activate HDMI input audio... - Page 7 User Manual PT-C-HDAEDE Audio input 48V MIC, MIC, Audio Line in port Audio input Switching the mode of the audio souce Switch “-”: Reduce the microphone volume by 1dB each time until it drops to -18dB Volume Button “+”: Increase the microphone volume by 1dB each time until it rises to +24dB “N.B.
-
Page 8: Specification
User Manual PT-C-HDAEDE Specification Video Input HDMI DC lockable barrel 5V Input Connector Micro USB for Firmware 3 pin Phoenix port for audio Output HDMI Output Connector S/PDIF for digital audio 5 pin Phoenix port for balanced audio LPCM up to 7.1/24 - bit / 96 kHz, Dolby Atmos and DTS-X... -
Page 9: Application Diagrams
User Manual PT-C-HDAEDE Application Diagrams Equipment connection layout:... - Page 10 User Manual PT-C-HDAEDE Application Diagram 1：Headless 5.1 HDMI Audio extraction (Bit:0011) - HDMI in but no HDMI out, with S/PDIF extraction...
- Page 11 User Manual PT-C-HDAEDE Application Diagram 2：PreAmp with Phantom power - No HDMI in or out - Phantom Power MIC in and 5pin audio out to Amp (Bit:1000)
- Page 12 User Manual PT-C-HDAEDE Application Diagram 3：Mic Overlay on to TV (Bit:1011) - HDMI pass through with MIC mixed on TV output...
- Page 13 User Manual PT-C-HDAEDE Application Diagram 4: Mixed audio to balance output - HDMI output With audio & Line in and HDMI audio routed to 5 pin output (Bit: 1111)
- Page 14 User Manual PT-C-HDAEDE FW update • Download the UART SW and the latest FW version from the PureLink website under the download section for this product. • Connect a USB A to USB mirco cable between a PC and the PT-C-HDAEDE.
- Page 15 User Manual PT-C-HDAEDE After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail).
-
Page 16: Asking For Assistance
User Manual PT-C-HDAEDE Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
