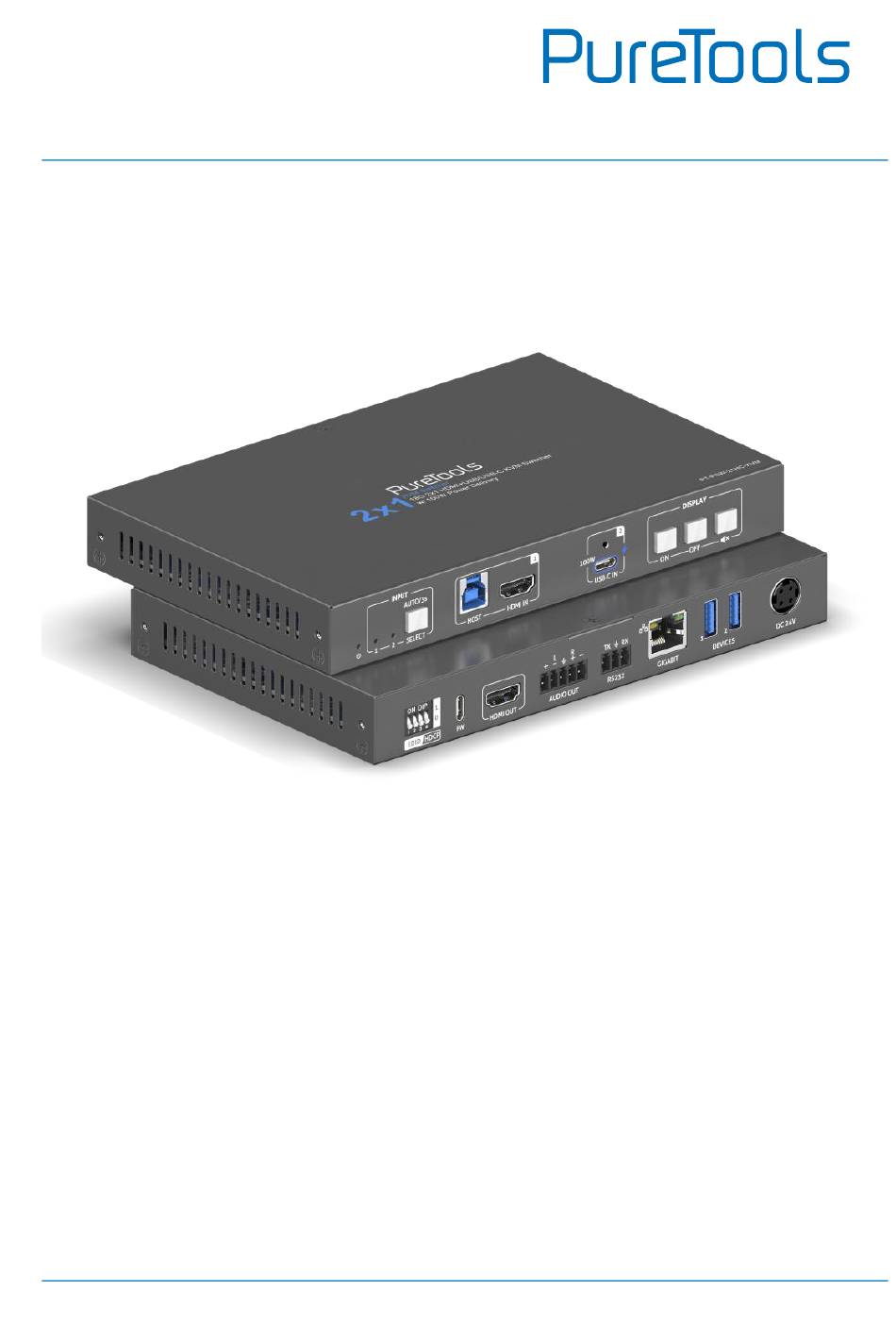

- Page 1 User Manual PT-PSW-21HC-KVM User Manual 18G 2x1 HDMI / USB-C KVM Switcher w/ 100W Power Delivery Model PT-PSW-21HC-KVM Designed in Germany © 28.08.2024 PureLink GmbH All rights reserved. VersionV1.0...
-
Page 2: Fcc Statement
User Manual PT-PSW-21HC-KVM Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 PT-PSW-21HC-KVM REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-PSW-21HC-KVM complies with Directives 1907/2006/EU and 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-PSW-21HC-KVM complies with Directives 2014/30/EU and 2014/35/EU.
-
Page 4: Safety Precautions
User Manual PT-PSW-21HC-KVM SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ... -
Page 5: Table Of Contents
User Manual PT-PSW-21HC-KVM Contents 1.Product Introduction ........................1 1.1 Introduction ........................1 1.2 Feature ..........................1 1.3 Package List ........................1 2. Panel Description .........................2 3. Specification ..........................4 4. System Diagram ........................... 7 5. Button Control ..........................8 5.1 Manual Switching ......................8 5.2 Automatic Switching ...................... -
Page 6: Product Introduction
1.Product Introduction 1.1 Introduction The PT-PSW-21HC-KVM is an 18G 2x1 HDMI / USB-C KVM Switcher. The switcher is designed to switch between a USB-C input and HDMI+USB-B inputs, to a single HDMI output and provide full Gigabit Ethernet, as well as access to 5Gbps SuperSpeed peripherals. -
Page 7: Panel Description
User Manual PT-PSW-21HC-KVM 2. Panel Description Front Panel Name Description The LED illuminates blue when the device is powered on; Power LED The LED illuminates red when the device is in standby. The indicator light corresponding to the currently selected source is on. -
Page 8: Rear Panel
User Manual PT-PSW-21HC-KVM Rear Panel Name Description EDID/HDCP 4-pin DIP switch for EDID/HDCP settings. 1x USB-C port for firmware upgrade. HDMI OUT 1x Type-A female HDMI output port to connect video display. AUDIO OUT 1x 5-pin terminal block for balanced audio output. -
Page 9: Specification
User Manual PT-PSW-21HC-KVM 3. Specification Video Input 1x HDMI IN(HDMI 2.0),1x USB-C IN(USB 3.2 Gen1) Input Connector 1x Type-A female HDMI,1x Type-C USB Input Resolution Up to 4K 60Hz 4:4:4 Output 1x HDMI OUT Output Connector 1x Type-A female HDMI... - Page 10 User Manual PT-PSW-21HC-KVM THD+N <0.05% at 20 Hz to 20 kHz > 90 dB at 1 kHz, zero clipping @ 0 dBFS, unweighted Digital Audio Optical Output PCM 2Ch (De-embedded) PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS® 5.1,...
- Page 11 User Manual PT-PSW-21HC-KVM HDCP Version Input: HDCP 2.2, HDCP 1.4 compliant Operation -10 to +55℃(+14° to +131°F) Temperature Storage Temperature -25 to +70℃(-13° to +158°F) Relative Humidity 10% to 90%, Non-condensing DC24V 6.5A Power Supply Power Consumption 126W(Max) Dimension (W*H*D) 195 x 24.5 x 125 mm...
-
Page 12: System Diagram
User Manual PT-PSW-21HC-KVM 4. System Diagram... -
Page 13: Button Control
User Manual PT-PSW-21HC-KVM 5. Button Control 5.1 Manual Switching When the switcher is in the manual switching mode, press the SELECT button repeatedly to cycle through the two video inputs, and the corresponding source LED illuminates red immediately. 5.2 Automatic Switching Press and hold the SELECT button for at least three seconds to enable automatic switching. -
Page 14: Edid&Hdcp Settings
User Manual PT-PSW-21HC-KVM 6. EDID&HDCP Settings The switch represents “0” when in the lower (OFF) position, and it represents “1” in the upper (ON) position. 6.1 EDID Settings The Extended Display Identification Data (EDID) is used for the source device to match its video resolution with the connected display. -
Page 15: Hdcp Settings
User Manual PT-PSW-21HC-KVM 6.2 HDCP Settings High-bandwidth Digital Content Protection (HDCP) is a copy-protection scheme to eliminate the possibility of capturing digital content from the source to the display. Pin4 of the DIP switch on the front panel can be used to set HDCP. -
Page 16: Rs232 Control
User Manual PT-PSW-21HC-KVM 7. RS232 Control Connect an RS232 cable to a control device (e.g. PC) with an RS232 cable. The switcher can then be controlled by sending RS232 commands. The baud rate is selectable as follows: 2400, 4800, 9600(default), 19200, 38400, 57600 or 115200. - Page 17 User Manual PT-PSW-21HC-KVM Click “OK” to close this window. The next pop-up window can also be closed with "Continue". An empty project is enough to send and receive commands easily (The default setting is always “Start with a blank project / blank script“) Click “Continue”...
- Page 18 User Manual PT-PSW-21HC-KVM The next step is to select the correct COM port of the PC. To do this, double-click on "COM1" in the corresponding setup window. Double click on “COM1” to change to the right COM port. In the following window, select the drop-down menu labeled "Send / Receive on Comm Channel", select the appropriate COM port and then click on "OK"...
- Page 19 User Manual PT-PSW-21HC-KVM Select the right COM port. In order to be able to send commands, open communication with the device by clicking on "Play". Then the keyboard function must be activated, so that commands can be written in the "communication window".
- Page 20 User Manual PT-PSW-21HC-KVM Enable the keyboard Command type in function. sending area Click “Play” to open the communication. Monitoring area, indicates if the command sent works.
-
Page 21: Rs232 Command
User Manual PT-PSW-21HC-KVM 7.2 RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Note: Commands are not case sensitive; Commands are not space sensitive; Commands end with ".";... - Page 22 User Manual PT-PSW-21HC-KVM TMDS detection. SIGNALTRGSTA. Feedback Example: Query the method of signal detection Trigger Mode Is 5V. (TMDS or 5V) STA. Feedback Example: Status query ..KEYCOMMAND[X]. Feedback Example: KEYCOMMAND1. KEYCOMMAND2. KEYCOMMAND3. Set display key command(CEC,RS232) Display Key Command CEC And RS232!
- Page 23 User Manual PT-PSW-21HC-KVM CEC[I/O][port][command]. Feedback Example: CECI0104444A.(Disc player unloaded) I/O: Input or Output port CECO018004.(TV on) port: Port number CECO018036.(TV standby) command: CEC command，HEX CEC Input 01 Send Success! format(max12 bytes) CEC Output 01 Send Success! /+[X]:XXX. Feedback Example: RS232 sends commands to control /+3:123456.
- Page 24 User Manual PT-PSW-21HC-KVM Set the ASCII RS232 command XXX to be sent to control the third-party device CMDVOLMUTE/+3:455665. when the VOLUME MUTE button is pressed. [X] = 1~7 (Baud Rate) 1--2400； 2--4800； 3--9600；4--19200； CMD_VOLMUTE Save Success! 5--38400；6--57600；7--115200 XXX: Any ASCII code EDIDUpgrade[xx].
- Page 25 User Manual PT-PSW-21HC-KVM 2400, 4800, 9600, 19200, 38400, Set Local RS232 Baudrate To 9600! 57600, 115200. STA_HDCP. Feedback Example: STA_HDCP. DIP Passive, Query the current HDCP status HDCP Management! HDCP_ON. Feedback Example: Forced to open the output HDCP, output HDMI Out HDCP On! HDCP1.4.
-
Page 26: After-Sales Service
User Manual PT-PSW-21HC-KVM 8. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for three years (The purchase invoice shall prevail). - Page 27 User Manual PT-PSW-21HC-KVM...
-
Page 28: Asking For Assistance
User Manual PT-PSW-21HC-KVM Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
