Service Manual
DDC20/24 Axial Piston Pumps
Torque charts

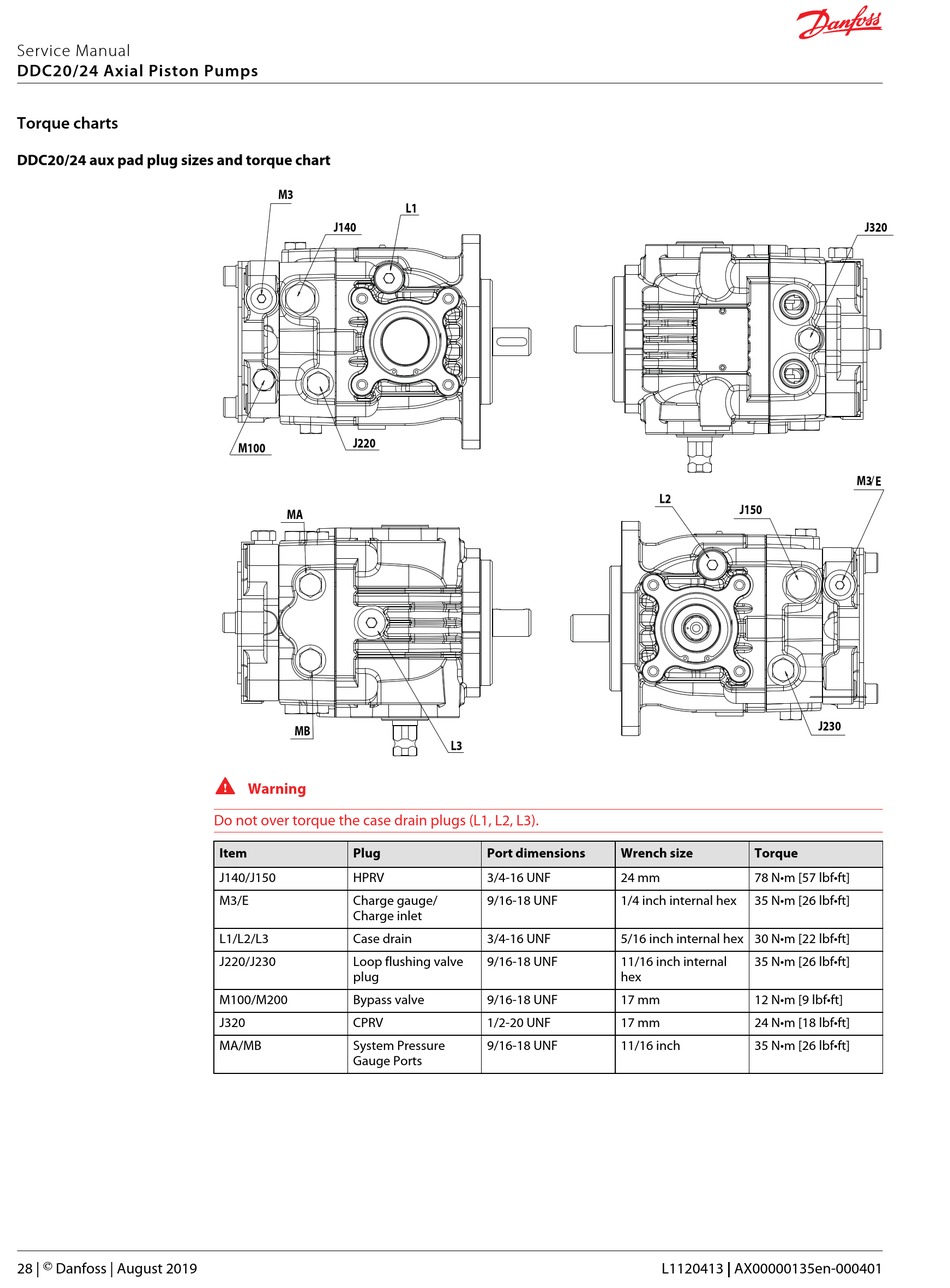

DDC20/24 aux pad plug sizes and torque chart
28 | © Danfoss | August 2019
M3
J140
J220
M100
MA
MB
W
Warning
Do not over torque the case drain plugs (L1, L2, L3).
Item Plug
J140/J150 HPRV
M3/E Charge gauge/
Charge inlet
L1/L2/L3 Case drain
J220/J230 Loop flushing valve
plug
M100/M200 Bypass valve
J320 CPRV
MA/MB System Pressure
Gauge Ports
L1
L3
Port dimensions
3/4-16 UNF
9/16-18 UNF
3/4-16 UNF
9/16-18 UNF
9/16-18 UNF
1/2-20 UNF
9/16-18 UNF
L2
J150
Wrench size Torque
24 mm 78 N•m [57 lbf•ft]
1/4 inch internal hex 35 N•m [26 lbf•ft]
5/16 inch internal hex 30 N•m [22 lbf•ft]
11/16 inch internal 35 N•m [26 lbf•ft]
hex
17 mm 12 N•m [9 lbf•ft]
17 mm 24 N•m [18 lbf•ft]
11/16 inch 35 N•m [26 lbf•ft]
L1120413 | AX00000135en-000401
J320
M3 / E
J230
