5. Using retaining ring pliers, install the retaining ring (F115).
6. Cover shaft splines with an installation sleeve or packaging tape to protect seal during installation.
Lubricate new shaft seal (F120), press into housing until it bottoms out. Press evenly to avoid binding
and damaging the seal.
C
Caution
Do not damage the housing bore, shaft or rear bearing when installing the shaft and shaft seal. All
components should fit together smoothly.
7. Using retaining ring pliers, install the seal retaining ring (F125).

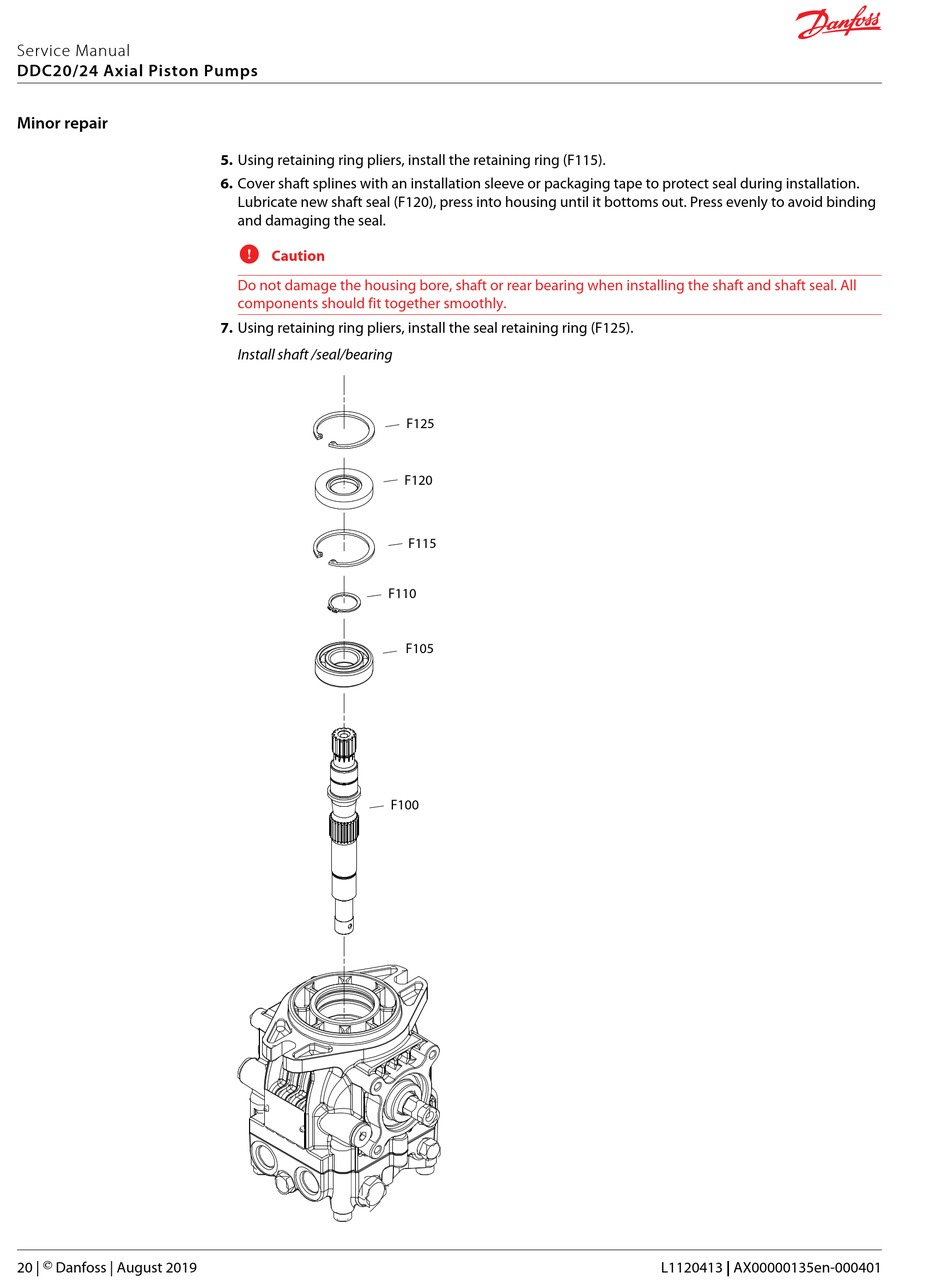

Install shaft /seal/bearing
F110
F100
F125
F120
F115
F105
