Torque charts

DDC20/24 charge pump fasteners and torque chart
DDC20/24 implement pump fasteners and torque chart
26 | © Danfoss | August 2019

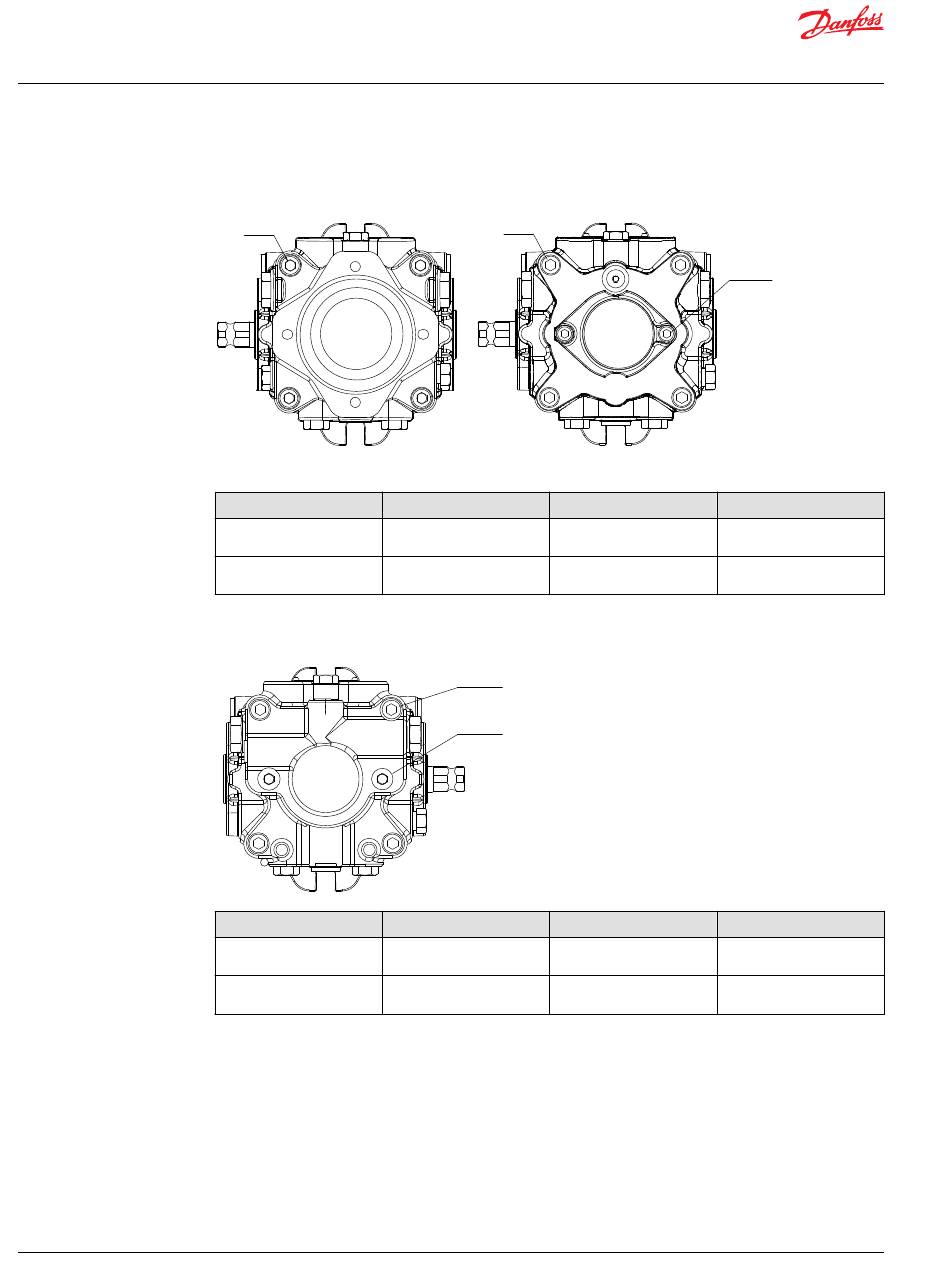

Aux pad (left) and gerotor (right)
J550
Item Fastener
K200 Charge pump cover
mounting bolt
J550 Endcap/charge pump cover
mounting bolts
Item Fastener
K200 Charge pump cover
mounting bolt
K210 Endcap/implement pump
housing mounting bolt
J550
Wrench size
6 mm internal hex
8 mm internal hex
K210
K200
P108803
Wrench size
8 mm internal hex
8 mm internal hex
K200
Torque
20 N•m [15 lbf•ft]
39 N•m [29 lbf•ft]
Torque
60 N･m [44 lbf･ft]
39 N･m [29 lbf･ft]
