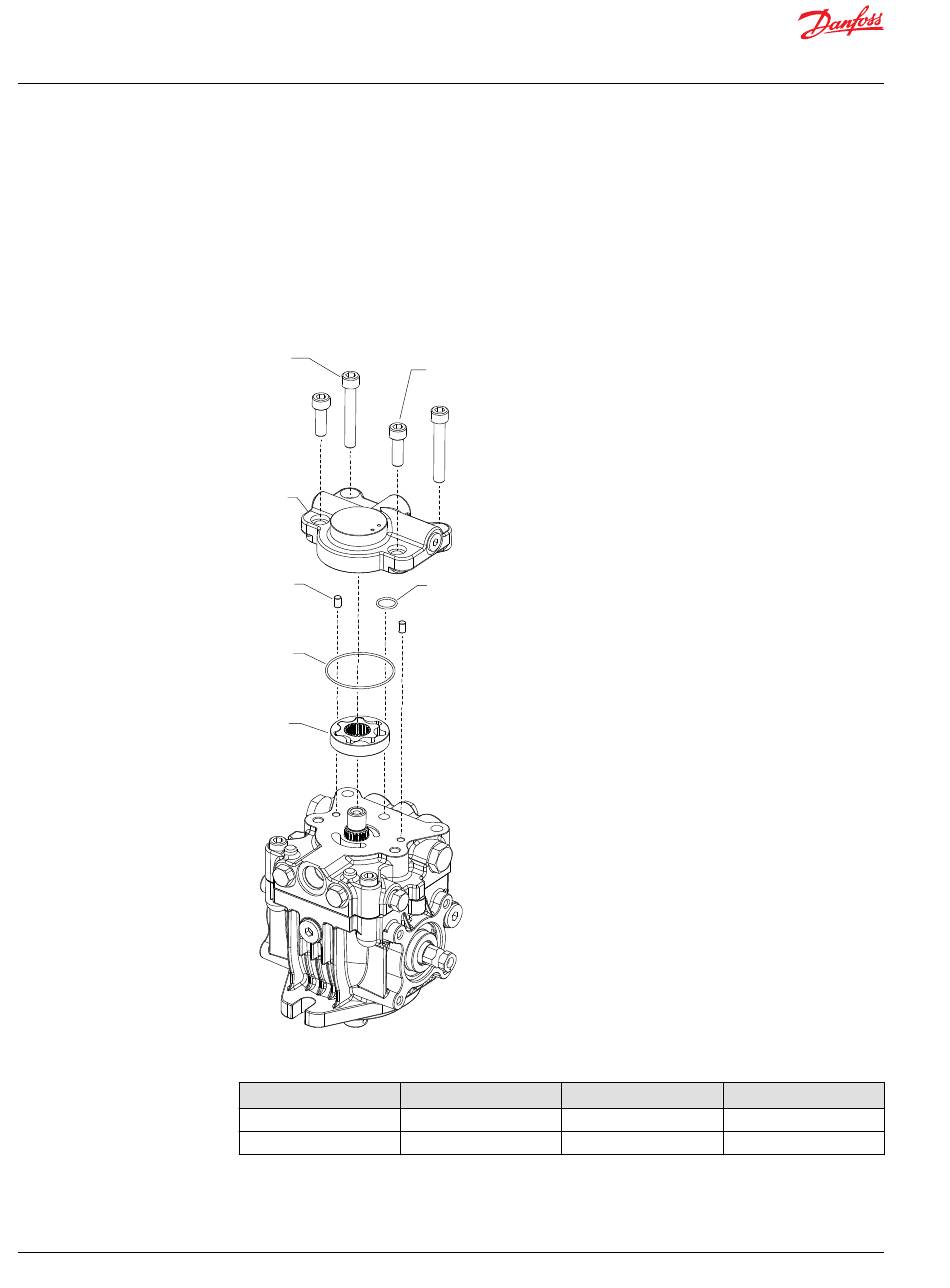

DDC20/24 implement pump removal
1. Position the pump with the shaft end pointing down.
2. Remove cap screws (K200/K210). Remove the implement pump housing (K150).
3. Remove and discard O-ring (K100/K110).
4. Remove gerotor (K010). Remove locating pins (K250) from housing.
Remove implement pump
K210
K150
K250
K100
K010
Implement pump cover bolts
Item
K200
K210
K200
K110
Description Wrench size
Cap screw 8 mm internal hex
Cap screw 8 mm internal hex
Torque
60 N･m [44 lbf･ft]
39 N･m [29 lbf･ft]
