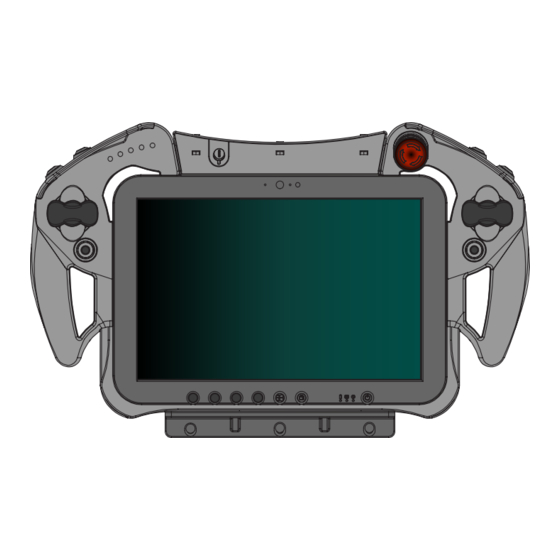

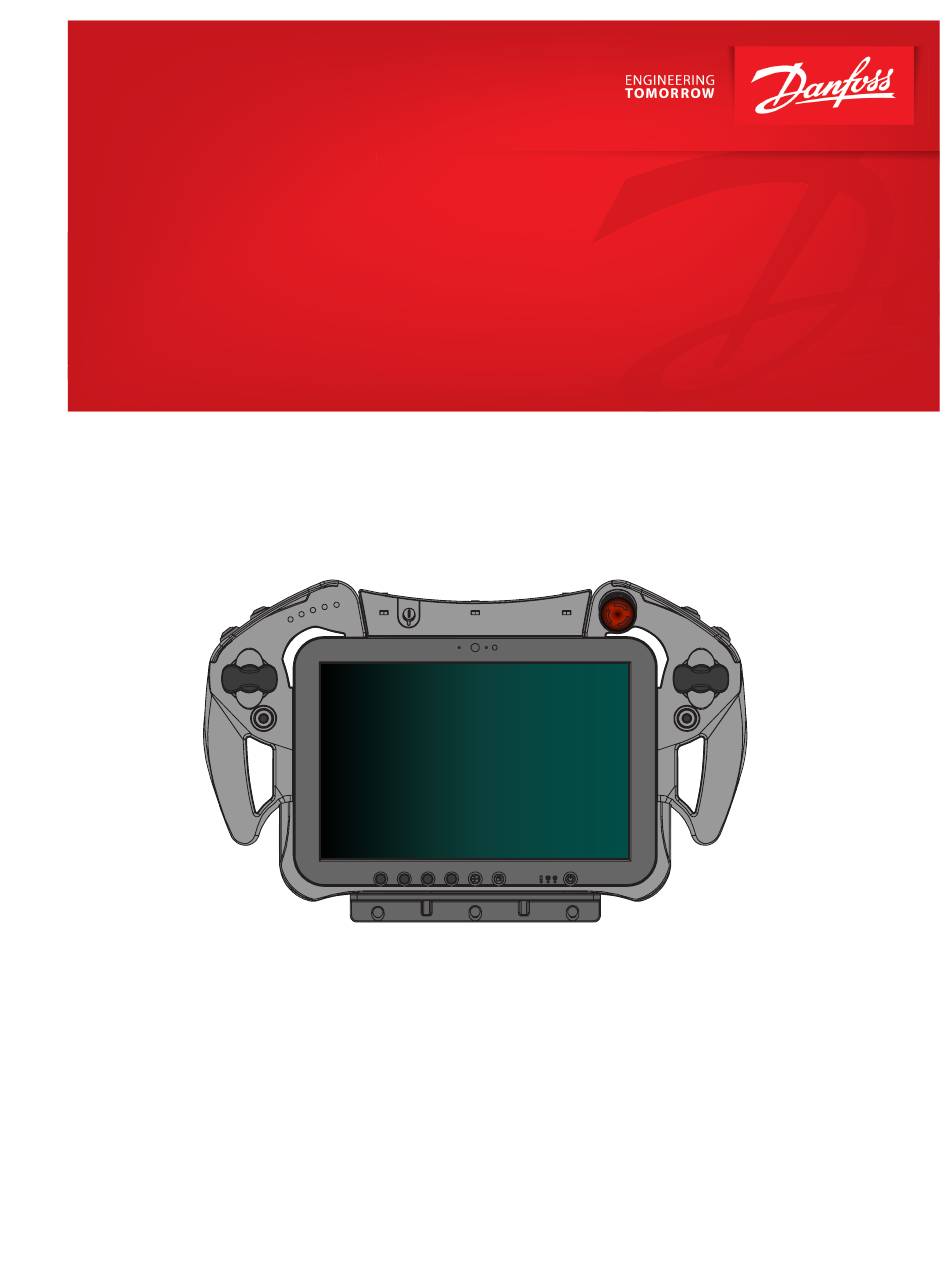

- Page 1 User Manual IKP1000 Transmitter Remote Control www.danfoss.com...
- Page 2 User Manual IKP1000 Transmitter Revision history Table of revisions Date Changed October 2019 Rebranded to Danfoss. 0101 © Danfoss | October 2019 BC319754051671en-000101...
-
Page 3: Table Of Contents
Safety in General....................................4 Safety Warnings....................................4 Safety Quick Guide...................................5 Technical description IKP1000 Dimensions..................................6 IKP1000 Start-up....................................7 Maintenance IKP1000 Maintenance Recommendations..........................8 Troubleshooting....................................8 Charger and battery Specifications..................................... 9 Battery Charger Set-up................................... 9 Battery Charger LEDs Status ..............................10 Battery Charging Recommendations............................. 10 Battery Charger Dimensions.............................. -
Page 4: Safety Instructions
• Service the equipment periodically. • When carrying out repairs, use spare parts supplied by Danfoss only. Warning Potential damage to the operator or the product. Do not use this product on machines in potentially explosive atmospheres unless the model is ATEX/RATEX certified to work in such conditions. -
Page 5: Safety Quick Guide
IKP1000 Safety Quick Guide Follow the Safety Quick Guidelines below to reduce risk of injury to the operator or the product. Changes or modifications not approved by Danfoss can void the user's authority to operate this equipment. Make sure the transmitter works with the machine After working with the machine, OR whenever in to be handled. -
Page 6: Technical Description
1. Status LED 2. STOP button 3. Lateral push-buttons 4. Hall effect joysticks 5. START push-button 6. Fixation ball 7. Potentiometers 8. Deadman options 9. External and extractable EP70 EEPROM module 10. Battery housing © Danfoss | October 2019 BC319754051671en-000101... -
Page 7: Ikp1000 Start-Up
3. Press the START button. The status LED will blink in green color until the connection between transmitter and receiver has been established. Once connected, the status LED will show a fixed green light. © Danfoss | October 2019 BC319754051671en-000101 | 7... -
Page 8: Maintenance
User Manual IKP1000 Transmitter Maintenance IKP1000 Maintenance Recommendations This product is designed for use in an industrial environment that may shorten the product's lifespan. Use these recommendations to maximize the lifespan of the product. • Use the hook/belt provided with the transmitter to prevent the transmitter from falling. -
Page 9: Charger And Battery
If charging two batteries, wait at least five seconds before inserting the second battery into the compartment. Warning Possible damage to battery. Ensure to charge batteries in environments with temperatures over 0°C. © Danfoss | October 2019 BC319754051671en-000101 | 9... -
Page 10: Battery Charger Leds Status
Charge batteries at least once every six months • Avoid short circuits between the battery contacts; do not carry charged batteries in toolboxes or next to other metal objects (keys, coins, etc.) • Always keep contacts clean 10 | © Danfoss | October 2019 BC319754051671en-000101... -
Page 11: Battery Charger Dimensions
User Manual IKP1000 Transmitter Charger and battery Battery Charger Dimensions Dimensions (mm) 131.6 34.5 © Danfoss | October 2019 BC319754051671en-000101 | 11... - Page 12 Phone: +86 21 2080 6201 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
