- Page 1 User Manual Ikargo2 Transmitter Remote Control www.danfoss.com...
- Page 2 User Manual Ikargo2 Transmitter Revision history Table of revisions Date Changed February 2021 Changed name Ikargo10 to Ikargo2 0201 July 2019 Rebranded to Danfoss. 0101 © Danfoss | February 2021 BC312438493831en-000201...
-
Page 3: Table Of Contents
General safety....................................4 Safety warnings....................................4 Technical description Ikargo2 Dimensions..................................5 Ikargo2 Start-up....................................6 Maintenance Ikargo2 Maintenance Recommendations..........................8 Troubleshooting....................................8 Charger and battery BC70K and BT11K specifications..............................9 BC70K Battery Charger Set-up..............................9 BC70K Charger LEDs Status ...............................10 Battery Charging Recommendations............................. 10 BC70K Battery Charger Dimensions............................ -
Page 4: Safety Instructions
Follow the Safety Quick Guidelines below to reduce risk of injury to the operator or the product. Changes or modifications not approved by Danfoss can void the user's authority to operate this product. Remove the transmission key only when the When in doubt, press the STOP button. -
Page 5: Technical Description

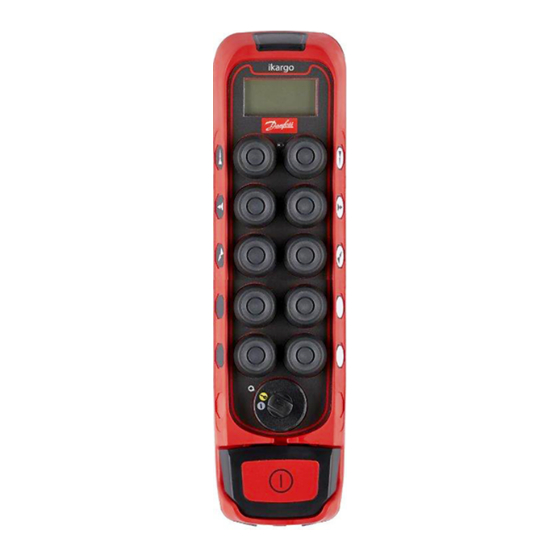

Dimensions (mm) 1. Range limiter 2. RGB display 3. Status LED 4. Maneuver push button 5. Multi-key/START 6. STOP button 7. Movement pictogram housing 8. BT11K battery housing 9. Extractable EEPROM housing © Danfoss | February 2021 BC312438493831en-000201 | 5... -
Page 6: Ikargo2 Start-Up
3. Push and pull out the stop button. The LED will blink in blue-green colors and the battery level will appear in the display. It is recommended to introduce the machine identifier (example: EOT crane number). © Danfoss | February 2021 BC312438493831en-000201... - Page 7 4. Press START with the multi-key until the radio link is performed. The LED color will turn green to indicate that the transmitter and receiver link is confirmed. 5. After confirmation, press the maneuver buttons to verify corresponding movements. © Danfoss | February 2021 BC312438493831en-000201 | 7...
-
Page 8: Maintenance
User Manual Ikargo2 Transmitter Maintenance Ikargo2 Maintenance Recommendations This product is designed for use in an industrial environment that may shorten the product's lifespan. Use these recommendations to maximize the lifespan of the product. • Use the hook/belt provided with the transmitter to prevent the transmitter from falling •... -
Page 9: Charger And Battery
3. Optional: If charging two batteries, wait at least five seconds before inserting the second battery into the compartment. Warning Possible damage to battery. Be sure to charge batteries in environments with temperatures over 0°C. © Danfoss | February 2021 BC312438493831en-000201 | 9... -
Page 10: Bc70K Charger Leds Status
Charge batteries at least once every six months • Avoid short circuits between the battery contacts; do not carry charged batteries in toolboxes or next to other metal objects (keys, coins, etc.) • Always keep contacts clean 10 | © Danfoss | February 2021 BC312438493831en-000201... -
Page 11: Bc70K Battery Charger Dimensions
User Manual Ikargo2 Transmitter Charger and battery BC70K Battery Charger Dimensions Dimensions (mm) 2.57 97.15 103.31 © Danfoss | February 2021 BC312438493831en-000201 | 11... - Page 12 Phone: +86 21 2080 6201 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
