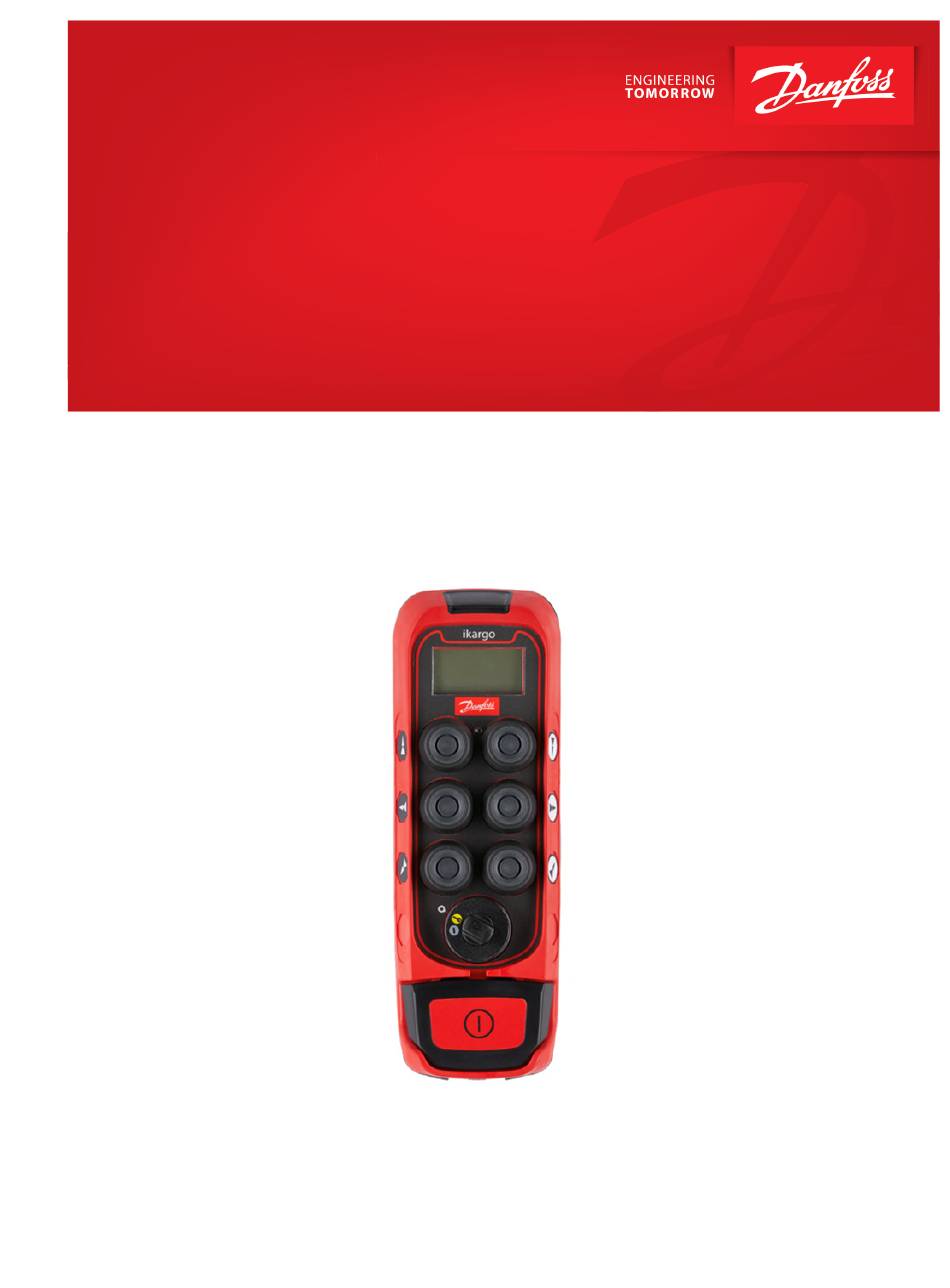

- Page 1 User Manual Ikargo1 Transmitter Remote Control www.danfoss.com...
- Page 2 User Manual Ikargo1 Transmitter Revision history Table of revisions Date Changed January 2025 Updated descriptions and battery information 0201 February 2021 Updated Ikargo1 name 0102 February 2019 Rebranded to Danfoss. 0101 © Danfoss | January 2025 BC295377198224en-000201...
- Page 3 Contents Safety instructions FCC rules......................................4 General safety....................................4 Safety warnings....................................5 Technical description Dimensions and identification..............................6 Start up.........................................7 Ikargo1 Detailed Description............................... 8 Multikey....................................... 8 Additional Transmitter Features..............................9 Maintenance Maintenance tips....................................10 Troubleshooting (400-900 MHz)...............................10 Charger and battery Charger and battery..................................11 BC70K and BT11K specifications...............................11...
- Page 4 The following safety instructions must be read carefully to install and use the product properly, and to keep it in perfect working condition, and to reduce the risk of miss use. • Danfoss recommends the use of ESD PPEs (electrostactic discharge personal protection equipment). •...
- Page 5 Avoid knocking or dropping the product. • Do not use the product if a failure is detected. Changes or modifications not approved by Danfoss can void the user's authority to operate this product. Quick reference precautions Cr 1 Tx Cr 1 ©...
- Page 6 Ikargo1 Transmitter Technical description IKARGO dimensions and identification Dimensions in mm Range limiter LCD display with color Backlight Status LED Maneuver push button Multi-key/START STOP button Movement pictogram housings BT11K battery housing Extractable EEPROM housing © Danfoss | January 2025 BC295377198224en-000201...
- Page 7 4. Press START with the multikey until the radio link is performed. The LED color will turn green to indicate that the transmitter is transmitting. Press the maneuver buttons to verify corresponding movements. Display crane ?? LED pulse Pulso LED ikargo ikargo © Danfoss | January 2025 BC295377198224en-000201 | 7...
- Page 8 User Manual Ikargo1 Transmitter Technical description Ikargo1 Detailed Description Technical Data Specification Value Stop function (400 - 900 MHz) Cat. 3-PLd Stop function (2.4 GHz) Cat. 3-PLe Ingress Protection IP65/NEMA4 Anti-condensation system Frequency bands - ERP 433.050 to 434.040 MHz; ERP<1 mW 434.040 to 434.790 MHz;...
- Page 9 Handheld and Console Box Transmitters do have the following Features and Options: Display and Feedback information Range Limiter Multi System Configuration PLUS+1® remote controls | Danfoss To get further information please do follow the Link to obtain the related manuals: © Danfoss | January 2025...
- Page 10 User Manual Ikargo1 Transmitter Maintenance Ikargo1 maintenance tips This product is designed for use in an industrial environment that may shorten the product's lifespan. Use these tips to maximize the lifespan of the product. • Use the hook/Shoulder strap/Belt provided with the transmitter to prevent the transmitter from falling •...
- Page 11 Weight 23 g BC70K Battery Charger Set-up The battery charger has two charging compartments that can simultaneously charge two BT11K batteries. Use the information below to set up the BC70K battery charger. © Danfoss | January 2025 BC295377198224en-000201 | 11...
- Page 12 Avoid short circuits between the battery contacts; do not carry charged batteries in toolboxes or next to other metal objects (keys, coins, etc.) • Always keep contacts clean • Caution! Risk of Explosion if Battery is Replaced by an incorrect type. Non Danfoss Battery use may void warranty © 12 | Danfoss | January 2025...
- Page 13 User Manual Ikargo1 Transmitter Charger and battery BC70K Battery Charger Dimensions Dimensions (mm) 2.57 97.15 103.31 © Danfoss | January 2025 BC295377198224en-000201 | 13...
- Page 14 Phone: +86 21 2080 6201 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
