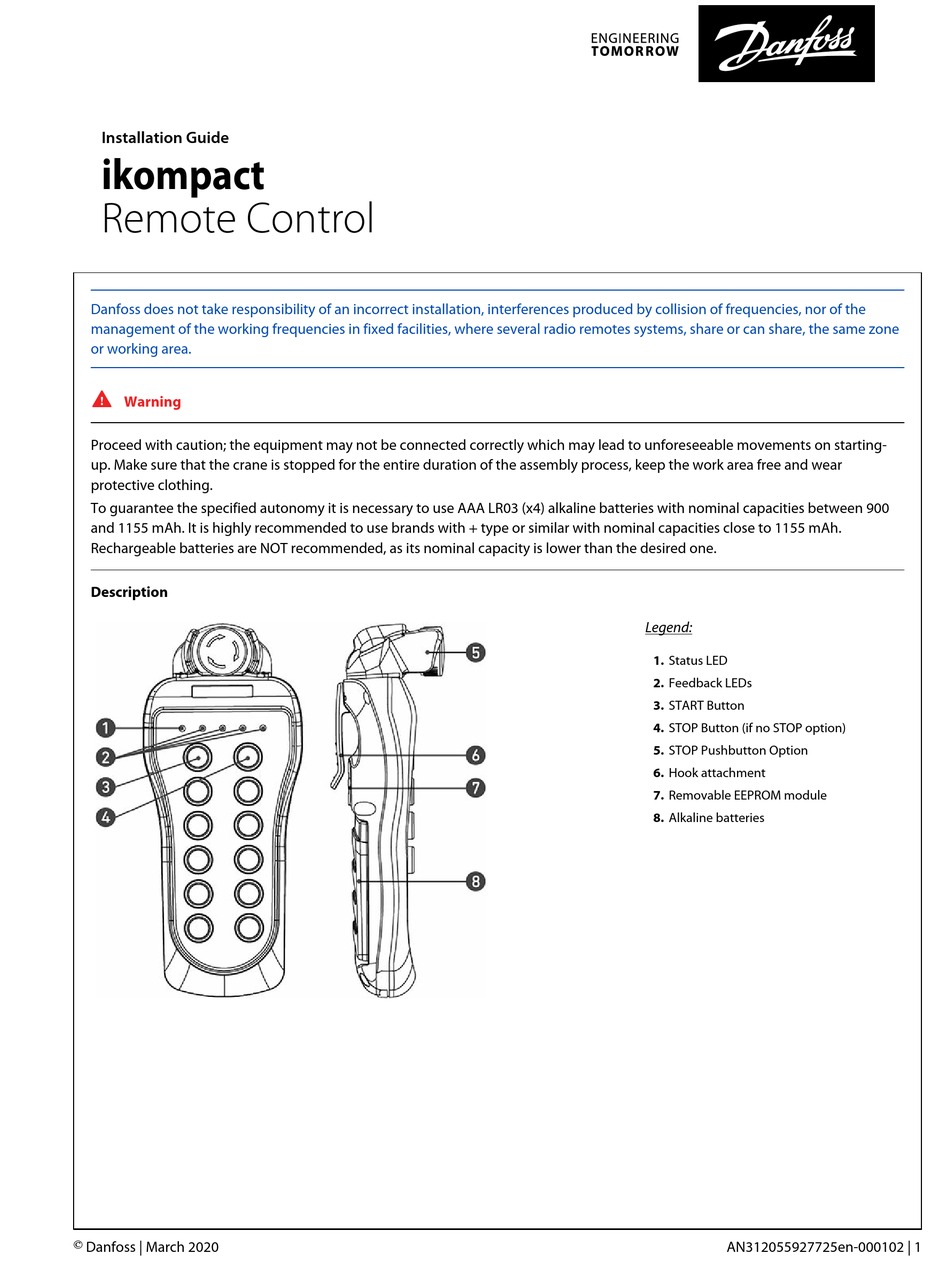

Installation Guide

ikompact

Remote Control

Danfoss does not take responsibility of an incorrect installation, interferences produced by collision of frequencies, nor of the

management of the working frequencies in fixed facilities, where several radio remotes systems, share or can share, the same zone

or working area.

Warning

Proceed with caution; the equipment may not be connected correctly which may lead to unforeseeable movements on starting-

up. Make sure that the crane is stopped for the entire duration of the assembly process, keep the work area free and wear

protective clothing.

To guarantee the specified autonomy it is necessary to use AAA LR03 (x4) alkaline batteries with nominal capacities between 900

and 1155 mAh. It is highly recommended to use brands with + type or similar with nominal capacities close to 1155 mAh.

Rechargeable batteries are NOT recommended, as its nominal capacity is lower than the desired one.

Description

Danfoss | March 2020

Legend:

1. Status LED

2. Feedback LEDs

3. START Button

4. STOP Button (if no STOP option)

5. STOP Pushbutton Option

6. Hook attachment

7. Removable EEPROM module

8. Alkaline batteries

AN312055927725en-000102 | 1
