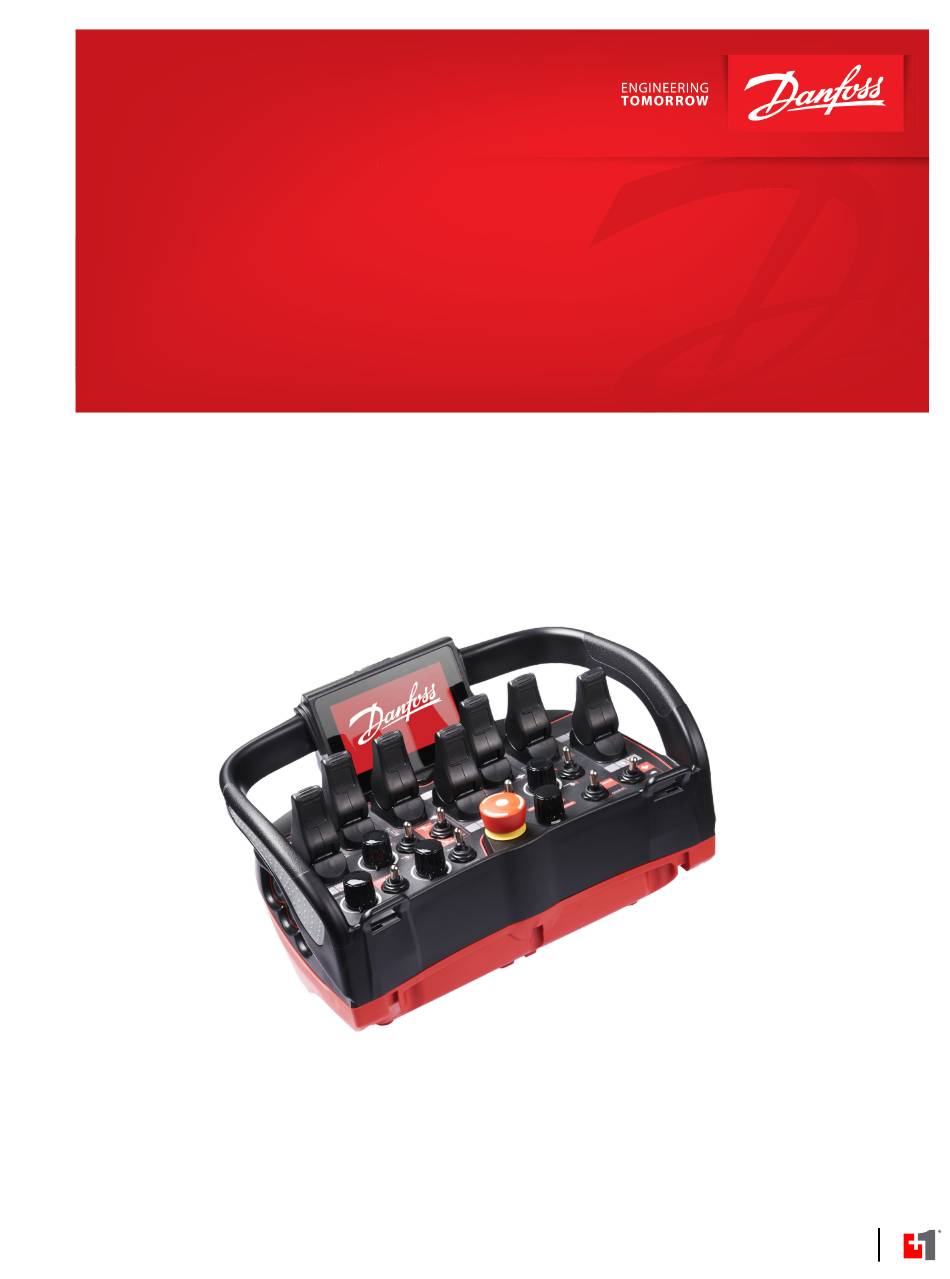

- Page 1 User Manual Remote Controls IK4 Transmitters www.danfoss.com...
- Page 2 User Manual Remote Control IK4 Transmitters Revision history Table of revisions Date Changed February 2025 Updated safety information and detailed descriptions 0301 May 2021 Added trouble shooting and start-up information for TR2400 0201 February 2019 Rebranded to Danfoss Power Solutions 0101 ©...
- Page 3 User Manual Remote Control IK4 Transmitters Contents Safety instructions FCC rules......................................4 General safety....................................4 Safety warnings....................................5 Technical description Dimensions and identification..............................6 Start up.........................................7 IK Transmitters Start up (2.4 GHz)...............................7 IK4 Detailed description.................................9 Multikey....................................... 9 Additional Transmitter Features...............................10 Maintenance Maintenance tips....................................11 Troubleshooting (400-900 MHz)...............................11...
- Page 4 The following safety instructions must be read carefully to install and use the product properly, and to keep it in perfect working condition, and to reduce the risk of miss use. • Danfoss recommends the use of ESD PPEs (electrostactic discharge personal protection equipment). •...
- Page 5 Avoid knocking or dropping the product. • Do not use the product if a failure is detected. Changes or modifications not approved by Danfoss can void the user's authority to operate this product. Quick reference precautions © Danfoss | February 2025...
- Page 6 User Manual Remote Control IK4 Transmitters Technical description IK4 dimensions and identification The illustration below details dimensions and features of the IK4 transmitter. Dimensions in mm 334.81 Label for crane identification Status LED Mechanisms Contact key or Multikey Start push button or Multikey...
- Page 7 User Manual Remote Control IK4 Transmitters Technical description IK Transmitters Start up (400-900Mhz) Use the information below to properly turn the transmitter ON (OPERATION mode). 1. Place a charged battery in the transmitter. The charge must be done following the instructions of the Battery Chargers' Manual.
- Page 8 User Manual Remote Control IK4 Transmitters Technical description Start up the device 1. Place a charged battery in the transmitter. The battery must be charged following the instructions of the Battery Charger Manual. 2. Turn the contact key or Multikey to the position "I."...
- Page 9 User Manual Remote Control IK4 Transmitters Technical description IK4 Detailed description Description Value Stop Function (400 - 900 MHz) Cat. 3-PLd Stop Function (2.4 GHz) Cat. 3-PLe Ingress Protection rating IP65/NEMA4 Anti-condensation system Goretex Film Frequency band - ERP 433.050 to 434.040 MHz; ERP<1 mW 434.040 to 434.790 MHz;...
- Page 10 User Manual Remote Control IK4 Transmitters Technical description Type H multikey is the Basic Key, having the single position and START pushbutton. Type T multikey is the key with 2 position selector that could as an example duplicate functions (shift key) depending on the position of the multikey and the button being pressed.
- Page 11 User Manual Remote Control IK4 Transmitters Maintenance IK4 maintenance tips This product is designed for use in an industrial environment that may shorten the product's lifespan. Use these tips to maximize the lifespan of the product. • Use the hook/Shoulder strap/Belt provided with the transmitter to prevent the transmitter from falling •...
- Page 12 User Manual Remote Control IK4 Transmitters Maintenance Troubleshooting 2.4GHz Status LED (on all Transmitters) Display Description Action Message Color and frequency Pulse frequency Blue | fast pulses Starting the Starting the system; establishing Wait system communications with radio and EEPROM...
- Page 13 User Manual Remote Control IK4 Transmitters Charger and battery Charger and battery Disposal note: This symbol on the product indicates that it may not be disposed of as household waste. It must be handed over to the applicable take-back scheme for the recycling of electrical equipment.
- Page 14 Avoid short circuits between the battery contacts; do not carry charged batteries in toolboxes or next to other metal objects (keys, coins, etc.) • Always keep contacts clean • Caution! Risk of Explosion if Battery is Replaced by an incorrect type. Non Danfoss Battery use may void warranty © 14 | Danfoss | February 2025...
- Page 15 User Manual Remote Control IK4 Transmitters Charger and battery CB70 battery charger dimensions Dimensions in mm 131.60 34.50 © Danfoss | February 2025 BC290863558440en-000301 | 15...
- Page 16 Phone: +86 21 2080 6201 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
