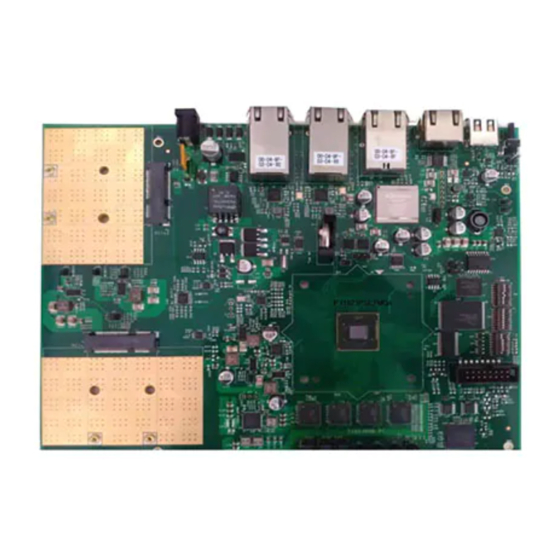

QorIQ T1023 Reference Design Board
User Guide
Document Number: T1023RDBUG
Rev. 0, 08/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QorIQ T1023 and is the answer not in the manual?

Questions and answers

Related Manuals for Freescale Semiconductor QorIQ T1023

Summary of Contents for Freescale Semiconductor QorIQ T1023

  • Page 1 QorIQ T1023 Reference Design Board User Guide Document Number: T1023RDBUG Rev. 0, 08/2015...
  • Page 2 QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 3: Table Of Contents

    2.10 SerDes lane B 2.5G BaseT interface (ETH3)......................... 17 2.11 Ethernet management..............................17 2.12 Ethernet ports.................................. 18 2.13 I2C....................................18 2.14 IFC....................................20 2.14.1 NOR flash memory............................20 2.14.2 NAND flash memory............................21 QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.
  • Page 4 2.24.1 Connectors................................. 28 2.24.2 Headers................................29 2.24.3 Push buttons............................... 30 2.24.4 LEDs.................................. 30 2.25 Switch settings................................31 2.25.1 T1023RDB-PC RCW source configuration (using switches)................31 2.25.2 Switches configuration options.......................... 32 QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 5: Related Documentation

    This document is applicable for PCBA version 700-28530 Rev D and Schematics version SCH-28530 Rev D. 1.1 Related documentation The table below lists and explains the additional documents that you can refer to, for more information about T1023RDB. QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 6: Acronyms And Abbreviations

    Serial Peripheral Interface Field Effect Transistor HDLC High-level Data Link Control Inter-Integrated Circuit Integrated Flash Controller JTAG Joint Test Action Group Table continues on the next page... QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 7: T1023Rdb Board Features

    • PCIe: • Lane A: x1 mini-PCIe slot • Lane C: x1 mini-PCIe slot • 10/100/1000 BaseT Ethernet ports: • EC1, RGMII: one 10/100/1000 port with RTL8211FS PHY QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.
  • Page 8 PCIe card, if the external PoE power is not enough. • PCB • 6-layer routing (4-layer signals, 2-layer power and ground) The below figure shows the T1023RDB-PC block diagram. QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 9: Specifications

    T1023 cores running at 1400 MHz Operating temperature 0 °C to 70 °C (room temperature) Storage temperature –25 °C to 85 °C Table continues on the next page... QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 10: T1023Rdb-Pc Board Drawings

    1.5 T1023RDB-PC board drawings The below figure shows the T1023RDB-PC board diagram. The board is 216 mm x 170 mm (8504 mil x 6692 mil). Figure 1-2. T1023RDB-PC board diagram QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 11: Architecture

    • GPIO interface • Interrupts • USB interface • RS-232 • POR configuration • JTAG/COP port • • Connectors, Headers, Push buttons, and LEDs • Switch settings QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 12: Power

    TSEC I/O and is configured for 1.8 V operation. The rail is sourced from VR500 SW2, rail is VR500_1V8. TVDD for EMI2 is 1.2 V and sourced from a linear regulator LT3021, rail is LDO_1V2. QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 13: Reset

    All resets on the board are handled by the reset switch SW4. Power-on Reset is initiated by pressing the switch SW4. Software is also capable of initiating a reset by asserting the line from the processor. RESET_REQ QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 14: Clocks

    DDR4 devices used. DDR4 supports on-die termination; the DDR4 chips and T1023 are connected directly. The 1.2 V, VREF, VTT, and VPP are powered from a PMIC VR500 output. QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 15: Termination

    Used for WLAN type cards Lane C PCI Express 2 Mini-PCIe slot Used for WLAN type cards Lane B 2.5G SGMII AQR105 PHY Lane D 1G SGMII Realtek SGMII PHY QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 16: Sgmii Support

    (RTL8211FS), as shown in the below figure. T1023 ETH1 RGMII RTL8211FS GBE PHY MDC, MDIO RJ-45 Port EMI1 MDIO PHY Address = 1 Figure 2-4. RGMII interface connection QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 17: Serdes Lane D 10/100/1000 Baset Interface (Eth2)

    SerDes lane B is set to operate in 2.5G SGMII and is directly connected to the AQR105 PHY, as shown in the below figure. Figure 2-6. SGMII interface connection QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 18: Ethernet Management

    The T1023 device has two I2C controllers. On the RDB, the I2C buses are connected as shown below. The M24256 serial EEPROM can be used to store configuration registers’ values. QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.
  • Page 19 I2C1 Mini PCIe 2 PCIe x1 I2C address is dependent on PCIe Connector card I2C2 0x41 Linear INA220A core current measurement Table continues on the next page... QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 20: Ifc

    U-Boot by using the following commands: switch bank0 switch bank4 The below figure shows the hardware connections for the flash memory. QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 21: Nand Flash Memory

    RY/BY_B can be either RB0 or RB1 depending on boot location. See switch settings. Figure 2-10. NAND flash memory connection The table below summarizes the IFC connectivity. QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 22: Espi Interface

    Use the U-Boot commands to switch SD/MMC card and switch sd switch emmc eMMC. NOTE Boot from eMMC will be supported in the next SDK release. QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 23: Gpio Interface

    Rev B= 0, Rev C= 1, Rev D= 0, Rev E= 1 PCIe 2 card wake GPIO3_02 GPIO3_2_WAKE_L 2.18 Interrupts The figure below shows the external interrupts to the T1023. QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 24: Usb Interface

    • Support operation as a standalone USB device • One Type A USB connector The figure below shows how the USB connectivity is implemented on the RDB. QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 25: Rs-232

    • 1/1.5/2 STOP bit • Baud rate • Overrun, parity, and framing error detection The UART1 are routed to a RJ-45 connectors P1, as shown in the below figure. QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 26: Por Configuration

    Then the device starts loading the RCW data. Negate the POR when the required assertion or hold time is met (the minimum value is 1 ms). On this board, MAX811 asserts the POR for 110 ms. QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 27: Jtag/Cop Port

    Signal name Connection Connected directly between the processor and JTAG/COP connector. Not connected. Connected directly between the processor and JTAG/COP connector. Table continues on the next page... QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 28: Dma

    The DMA function itself is not utilized on the RDB platform. All the DMA pins are multiplex with the SDHC pins. 2.24 Connectors, Headers, Push buttons, and LEDs This section explains: • Connectors • Headers • Push buttons • LEDs QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 29: Headers

    Reference Used for Setting designators Fan Header For socket fan Remote RESET Connect cable to chassis JTAG/COP Used for PowerPC JTAG Table continues on the next page... QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 30: Push Buttons

    The following table describes how the push buttons are used on the T1023RDB platform. Table 2-12. Push buttons on T1023RDB platform Reference designators Used for Notes Reset Used for resetting the whole board QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 31: Leds

    8-bit NAND, 2 KB page, 64 pages/block For NAND flash ON OFF ON, ON boot, except the RCW source settings, also set SW3.4 to OFF to assign CS0 and RB0 to NAND. QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.

  • Page 32: Switches Configuration Options

    Set 1 to invert the IFC address A23 SW3[8] TEST_SEL_N Set 0 enable single core; set 1 enable dual core NOTE Switch ON: 0; Switch OFF: 1 QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.
  • Page 33 Revision history The below table summarizes the revisions to this document. Table A-1. Revision history Revision Date Topic cross-reference Change description Rev 0 08/2015 Initial Public Release. QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.
  • Page 34 QorIQ T1023 Reference Design Board User Guide, Rev. 0, 08/2015 Freescale Semiconductor, Inc.
  • Page 35 Freescale, the Freescale logo, CodeWarrior, and QorIQ are trademarks of Freescale Semiconductor, Inc., Reg. U.S. Pat. & Tm. Off. All other product or service names are the property of their respective owners. The Power Architecture and Power.org word marks and the Power and Power.org logos and related marks are trademarks and service marks...
  • Page 36 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: T1023RDB-PC...
