- Page 1 Quick Start Guide for TWR-MPC5125 TOWER SYSTEM TWR-MPC5125 For high-resolution display applications...

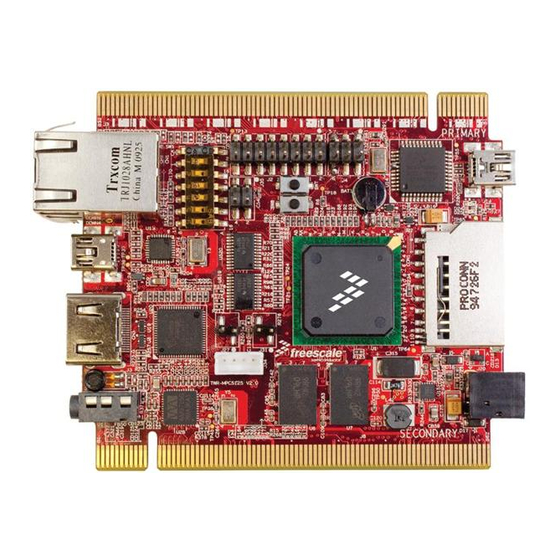

- Page 2 Elevator Connector Freescale Tower System The TWR-MPC5125 module is a single board computer as well as a part of the Freescale Tower System, a modular development platform that enables rapid prototyping and tool re-use through reconfigurable hardware. Take your design to the next level and begin constructing your Tower System today.
- Page 3 Quick Start Guide for TWR-MPC5125 TOWER SYSTEM Step-by-Step Installation Instructions In this Quick Start Guide, you will learn how to set up the TWR-MPC5125 module and run the default demonstration software. The following instructions are for Windows ® Connect the HDMI cable...
-
Page 4: The Display
TOWER SYSTEM View video on Press Q on the STEP STEP the display keyboard or right-click on the mouse The board comes pre-programmed to automatically boot the LimePC™ The video demonstration application will Linux operating system with video close, revealing the LimeOS graphical demonstration application. - Page 5 Quick Start Guide for TWR-MPC5125 TOWER SYSTEM Install software driver STEP When the cable is plugged in the first time, the Found New Hardware Wizard will start. Select the option Install from a list or specific location (Advanced), then select “Next.”...
- Page 6 TOWER SYSTEM Booting Freescale MQX Press the reset button STEP STEP RTOS with digital sign on the board demo application At the U-Boot prompt, type “run mqxboot”. The MQX RTOS with demo application loads into the SDRAM from the NAND flash and executes. Find the U-Boot prompt STEP View images on...
- Page 7 Quick Start Guide for TWR-MPC5125 TOWER SYSTEM To make this the auto-boot option, For more information, view the following type “set bootcmd run mqxboot” and documents: press “Enter.” Then type “save” to save • MQX Lab: How to build and load this change to the U-Boot environment MQX applications variables in the nand flash.
- Page 8 Learn more at www.freescale.com/tower. Freescale, the Freescale logo, mobileGT and MQX are trademarks of Freescale Semiconductor, Inc., Reg. U.S. Pat. & Tm. Off. All other product or service names are the property of their respective owners. © 2010 Freescale Semiconductor, Inc.
