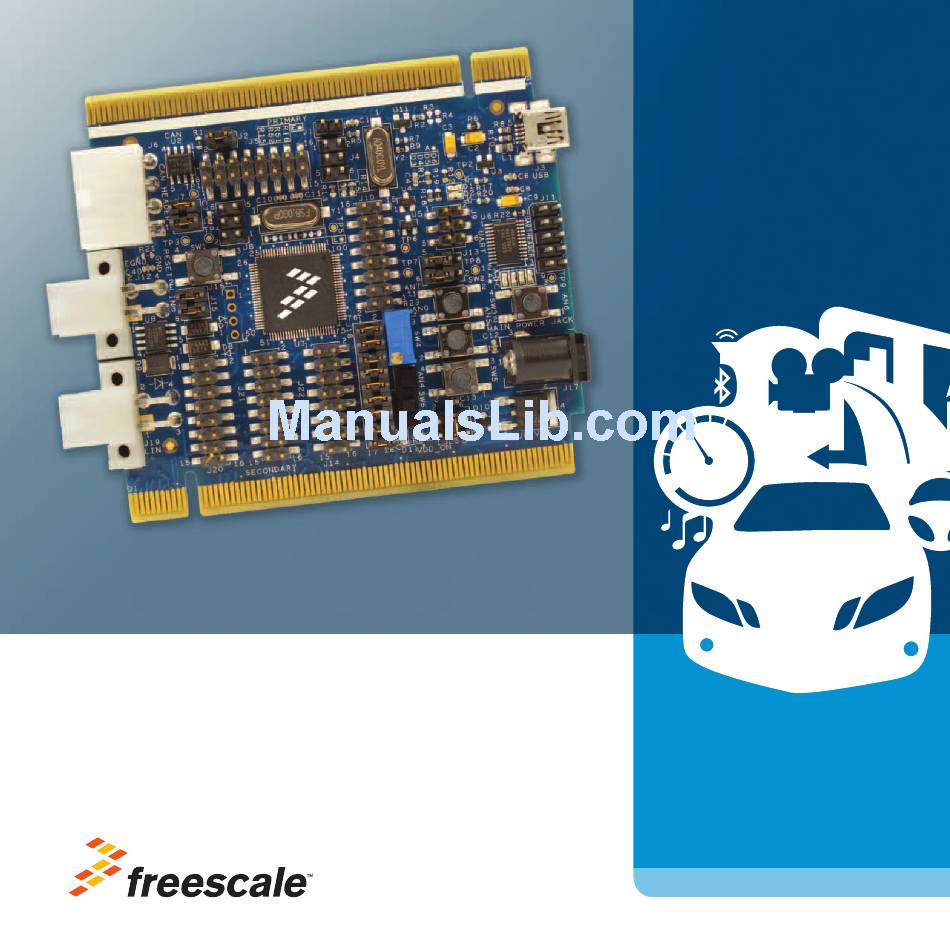

- Page 1 AUTO—INFOTAINMENT Quick Start Guide TWR-S12G240 Scalable Platform for Automotive Applications TOWER SYSTEM...

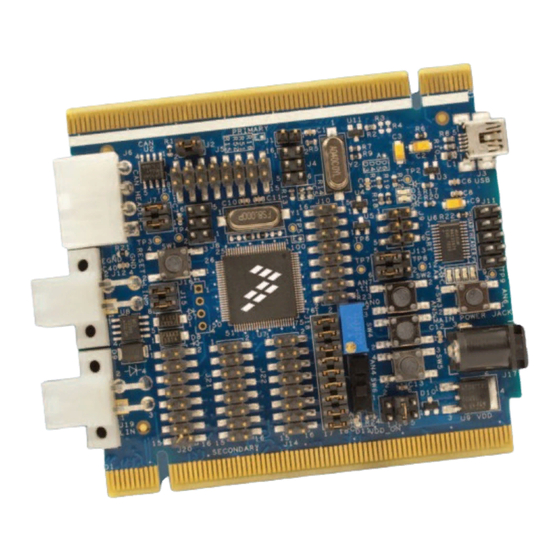

- Page 2 Power Supply TWR-S12G240 Freescale Tower System The TWR-S12G240 module is a single board computer as well as part of the Freescale Tower System, a modular development platform that enables rapid prototyping and tool re-use through reconfigurable hardware. Elevate your design to the next level and...
- Page 3 TWR-S12G240 Features • S 12G240 series microcontroller (100-pin LQFP) • O n-board JTAG connection via open source OSBDM circuit using the MC9S08JM60 microcontroller See pemicro.com/osbdm for source code • High-speed CAN interface • LIN interface • Potentiometer with LP filter • LED indicators • R S-232 serial communication interface • S upport for USB Multilink Interface BDM...
-
Page 4: Usb Cable
Quick Start Guide Step-by-Step Installation Instructions In this quick start guide, you will learn how to set up the TWR-S12G240 board and run the default exercise. Install Software Connect the and Tools USB Cable Install CodeWarrior Development Connect one end of the USB Studio for S12 V5.1 or later... - Page 5 Using the Learn More About Example Project the S12G240 The pre-loaded example project Read the release notes and utilizes the TWR-S12G240’s documentation on the DVD and at potentiometer, push button freescale.com/S12G240. switches and LEDs. Once the • The Processor Expert graphical...
- Page 6 Quick Start Guide TWR-S12G240 Jumper Options The following is a list of all jumper options. The default installed jumper settings are shown in white text within the blue boxes. Jumper Option Setting Description USB to BDM Drives IRQ/TPMCLK to ground...
- Page 7 TOWER SYSTEM (continued from previous page) Jumper Option Setting Description Connect PAD4 pin to SW5 Connect PAD5 pin to SW4 Connect PAD6 pin to SW3 Connect PAD7 pin to SW2 USER SWs and 9-10 Connect PAD0 to R23 potentiometer LED Selection 11-12 Connect PT4 pin to D3 LED 13-14...
- Page 8 Quick Start Guide Visit freescale.com/TWR-S12G240 for information on the TWR-S12G240, including: • TWR-S12G240 quick start guide • TWR-S12G240 board schematics For more information, visit freescale.com/Tower Join the online Tower community at towergeeks.org Freescale, the Freescale logo and CodeWarrior are trademarks or registered trademarks of Freescale Semiconductor, Inc. Reg. U.S. Pat. & Tm. Off. Processor Expert is a trademark of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © 2011 Freescale Semiconductor, Inc. Doc Number: TWRS12G240QSG REV 0 Agile Number: 926-78583 REV A...
