Freescale Semiconductor T2080RDB-PC Quick Start Manual

Freescale Semiconductor
Quick Start
QorIQ T2080 Reference Design
Board (T2080RDB-PC) Quick Start

1 Introduction

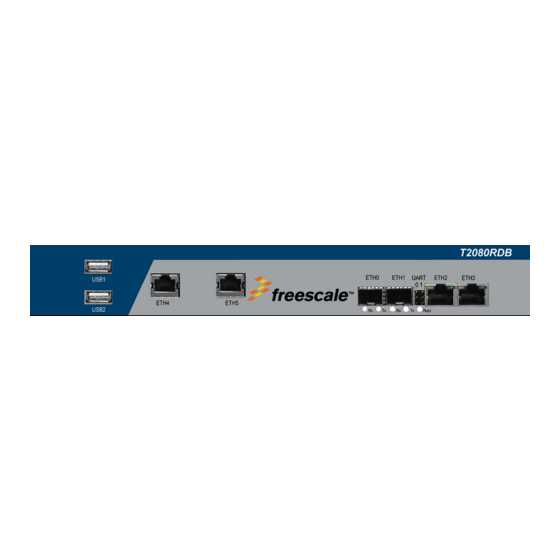

The T2080 reference design board (T2080RDB-PC) system is
a hardware board, supporting the Freescale QorIQ T2080
Power Architecture® processor with four dual-threaded e6500
cores and speed up to 1.8 GHz.
For the T2080 RDB system, the prototype part number is
T2080RDB and the production part number is T2080RDB-PC.

2 Related documentation

Some of the documents listed in the table below may be
available only under a non-disclosure agreement (NDA). To
request access to these documents, contact your local field
applications engineer or sales representative.
Table 1. Useful references
Document name
QorIQ T2080 Reference
Design Board (T2080RDB-
PC) User Guide
Table continues on the next page...
© 2015 Freescale Semiconductor, Inc.
Description
This document explains the
procedure to build, configure,
and use different components
for the Freescale T2080RDB
board.
Document Number: T2080RDBPCQS
Contents
1 Introduction................................................................1
2 Related documentation...................... ........................1
3 Preparing board........................... ..............................2
4 System board interface.............................................. 4
5 Flash image layout......................... ........................... 6
6 Default RCW setting...................... ...........................7
7 Switch settings........................... ............................... 7
8 How to program flash for the first time
(without U-Boot)......................................... ..............9
9 Revision history.......................... ............................ 10
Rev 0, 02/2015
