Digital Power Starter Kit User's Guide
1.3

STARTER KIT FUNCTIONALITY AND FEATURES

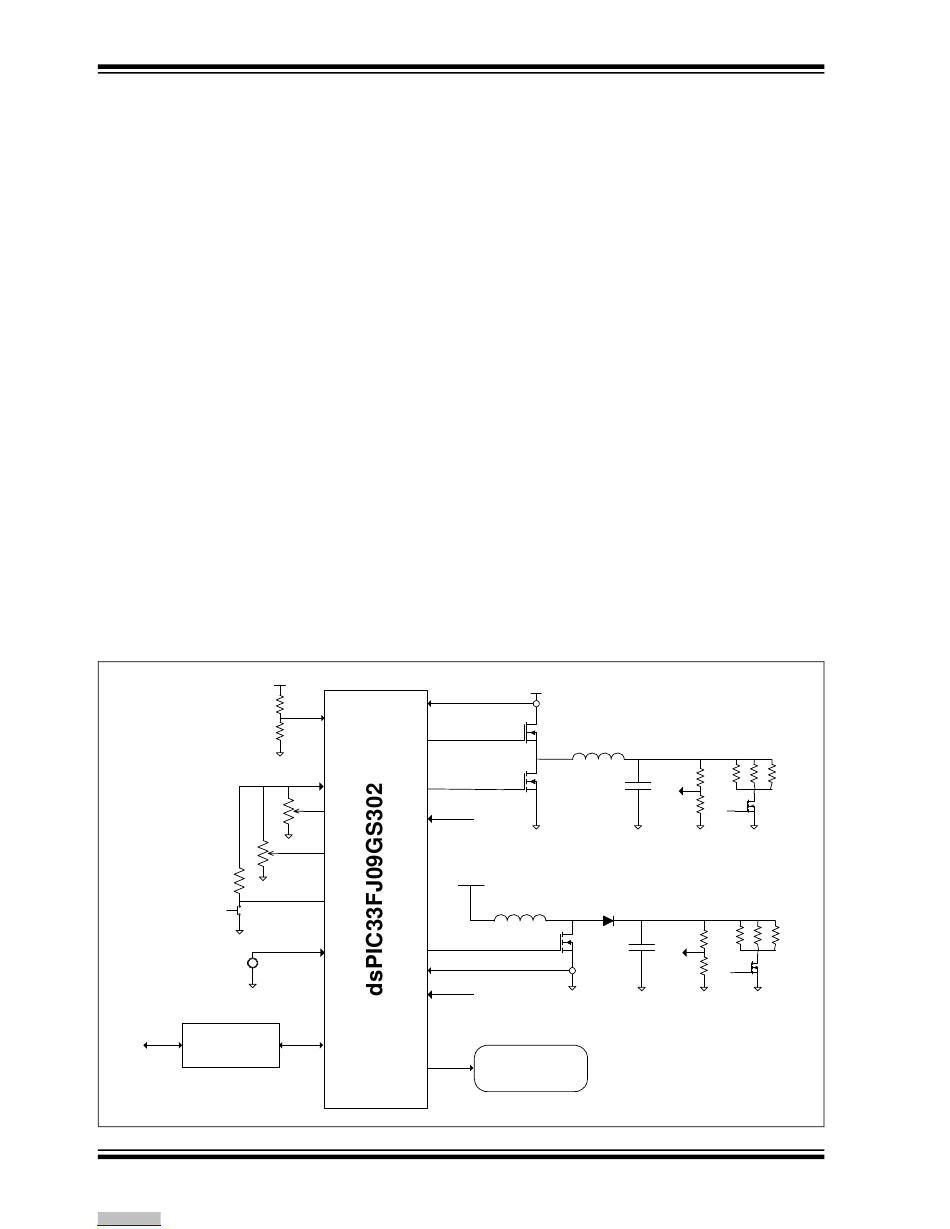

FIGURE 1-1:
USB
PC
DS52078A-page 16
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
The Digital Power Starter Kit is a power supply board that consists of one independent
DC/DC synchronous Buck converter and one independent DC/DC Boost converter.
Figure 1-1 illustrates a high-level block diagram of the Starter Kit.
The Digital Power Starter Kit provides closed-loop Proportional-Integral-Derivative
(PID) control in the software to maintain the desired output voltage level. The dsPIC
DSC device provides the necessary memory and peripherals for A/D conversion, PWM
generation, analog comparison and general purpose I/O, preventing the need to
perform these functions in external circuitry.
SMPS dsPIC DSC devices are specifically designed to provide low-cost and efficient
control for a wide range of power supply topologies. The specialized peripherals facilitate
closed-loop feedback control of switch mode power supplies, providing communication
for remote monitoring and supervisory control.
The dsPIC33F SMPS family of devices provide the following features:
• Integrated program and data memory on a single chip
• Ultra-fast interrupt response time with interrupt priority logic
• Up to 2 Msps, on-chip ADC with Successive Approximation Register (SAR), and
three Sample-and-Hold (S&H) circuits.
• Three independent, high-resolution PWM generators, specially designed to support
different power topologies
• Two high-speed analog comparators for control loop implementation and system
protection
• On-chip system communications (I
• On-chip fast RC oscillator for lower system cost
• High-current sink/source for PWM pins (16 mA/16 mA)
• CPU performance (40 MIPS)
• Extensive power-saving features
DIGITAL POWER STARTER KIT SYSTEM DIAGRAM
V
IN
Vin_FB
AN4
V
DD
AN5
5k
5k
AN6
RB8
SW1
Temperature
AN7
Sensor
On-Board
Debugger
2
C™/SPI/UART)
V
IN
Current Sense
AN0
Buck
PWM1H
PWM1L
VFB Buck
AN1
V
IN
PWM4H
Current Sense
AN2
Boost
VFB Boost
AN3
LCD
Voltage/Current/
Temperature/Fault
®
Resistive
VFB Buck Load
PWM2H
Resistive
Load
VFB Boost
PWM2L
