Programmer/Debugger - Microchip Technology Digital Power Starter Kit User Manual

Digital Power Starter Kit User's Guide
2.8

PROGRAMMER/DEBUGGER

TABLE 2-8:
Component
On-Board Programmer/
Debugger
Programmer/Debugger
USB Connector
DS52078A-page 26
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
2.7.2 Boost Converter
The Boost converter stage is rated for a maximum output power of 5W to the dedicated
on-board resistive load. The output voltage and output current should remain within the
Boost converter Safe Operating Area (SOA) to avoid damage to the board, as shown
in the graph in Figure 2-5. The output voltage of the Boost converter (BOOST_Out) can
be programmed to be from an 11V to 18V output, with a default programmed voltage
of 15V. The hardware gain [20k/(20k + 3.3k)] of the voltage feedback from the
BOOST_Out is provided by the resistor divider network of R41 and R51. Additionally,
a 20 Ohm resistor, R30, for bode plot measurements is also in series with the feedback
network. The hardware gain of the current feedback is provided by the current sense
resistor, R61.

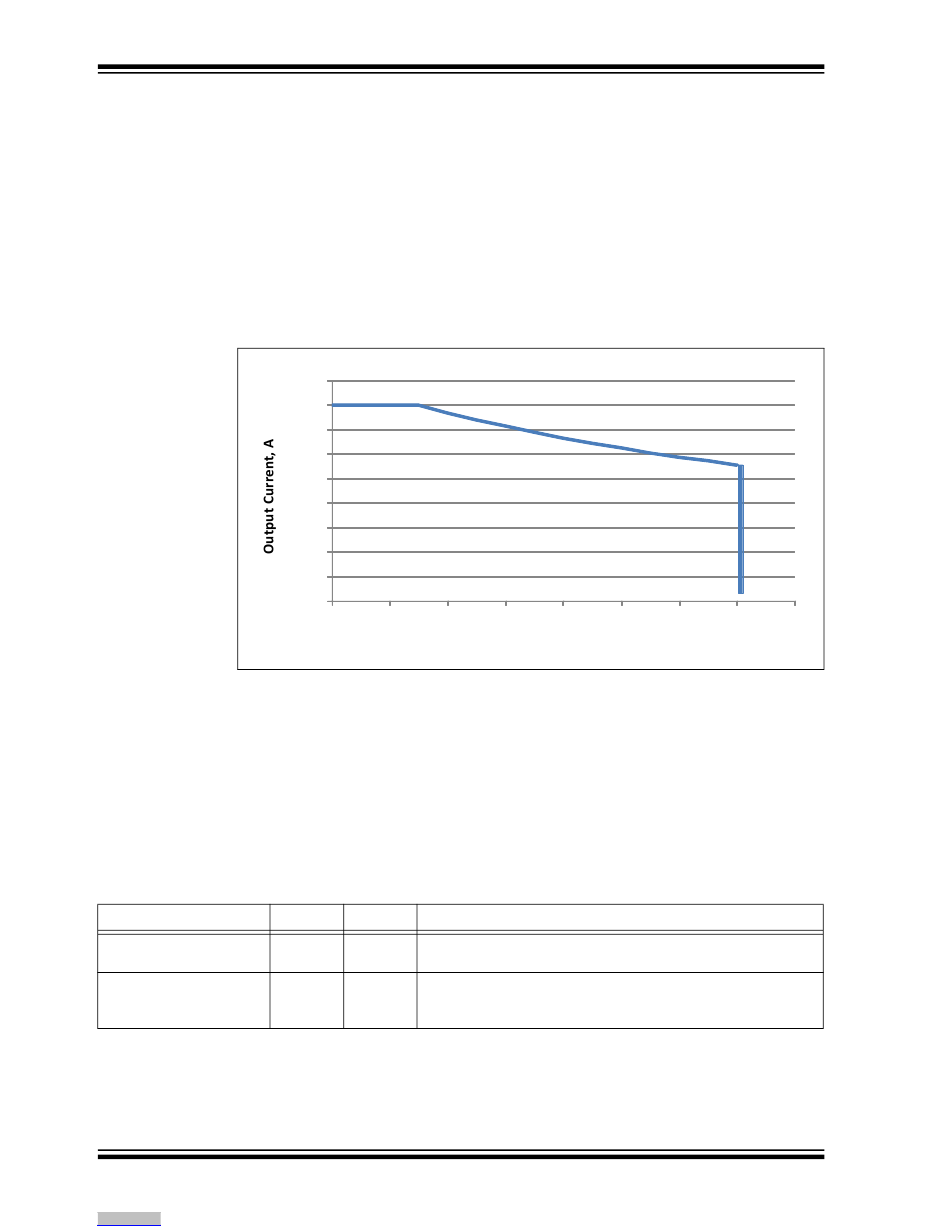

FIGURE 2-5: BOOST CONVERTER SOA CURVE
0.45
0.40
0.35
0.30
0.25
0.20
0.15
0.10
0.05
0.00
11 12
The Digital Power Starter Kit includes an on-board programmer/debugger circuit that
provides connectivity over USB. This circuit is hard-wired to the dsPIC DSC device to
provide ICSP™ debugging/programming capability.
2.8.1 Programmer/Debugger Components
Table 2-8 describes the programmer/debugger components that are available on the
Digital Power Starter Kit (see
PROGRAMMER/DEBUGGER COMPONENTS
Label Item #
N/A 2
J5 3
13 14 15
Output Voltage, V
Figure 2-2 for component locations).
Description
Controls the programming/debugging operations of the target
dsPIC33FJ09GS302 DSC.
Provides power to the programmer/debugger, and bidirectional
communication between the host PC and the Digital Power
Starter Kit.
16 17 18 19
 2012 Microchip Technology Inc.
