Digital Power Starter Kit User's Guide
DS52078A-page 20
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
TABLE 2-1: DIGITAL POWER STARTER KIT COMPONENTS (TOP)
Number
1 dsPIC33FJ09GS302 Digital Signal Controller (DSC) (U3)
2 9V Power Connector (J2)
3 2x16 Character LCD
4 Boost Converter Stage
5 Buck Converter Stage
6 Push Button (SW1)
7 Potentiometers (P1 and P2)
8 Voltage Regulator (3.3V)

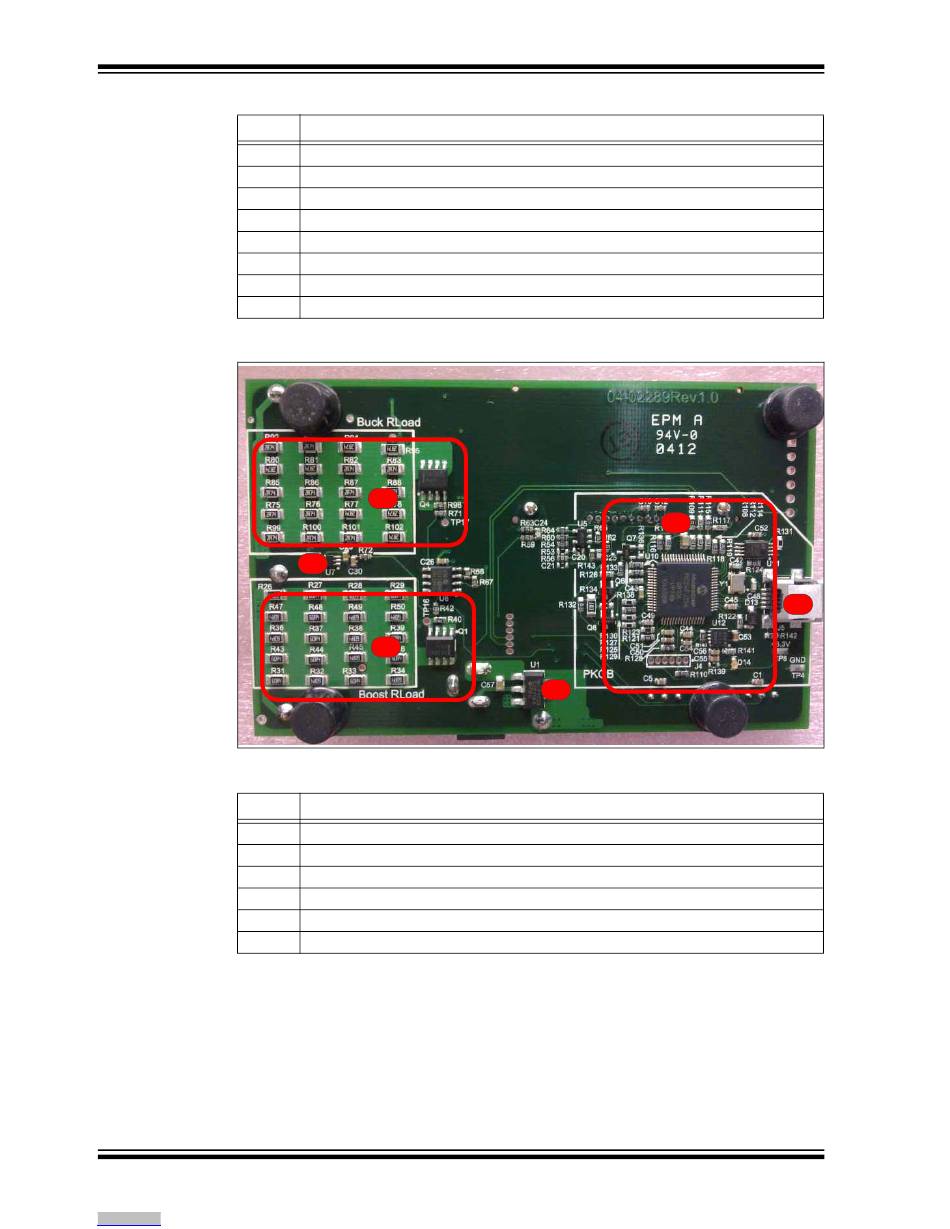

FIGURE 2-2: DIGITAL POWER STARTER KIT (BOTTOM VIEW)
4
6
5
TABLE 2-2: DIGITAL POWER STARTER KIT COMPONENTS (BOTTOM)
Number
1 Voltage Regulator (5V)
2 On-Board Programmer/Debugger
3 Programmer/Debugger USB Connector (J5)
4 Buck Converter Resistive Load
5 Boost Converter Resistive Load
6 On-Board Temperature Sensor
Description
2
1
Description
 2012 Microchip Technology Inc.
3
