Brocade X6-8 Director
53-1004105-13 Hardware Installation Guide
Hardware Installation Guide

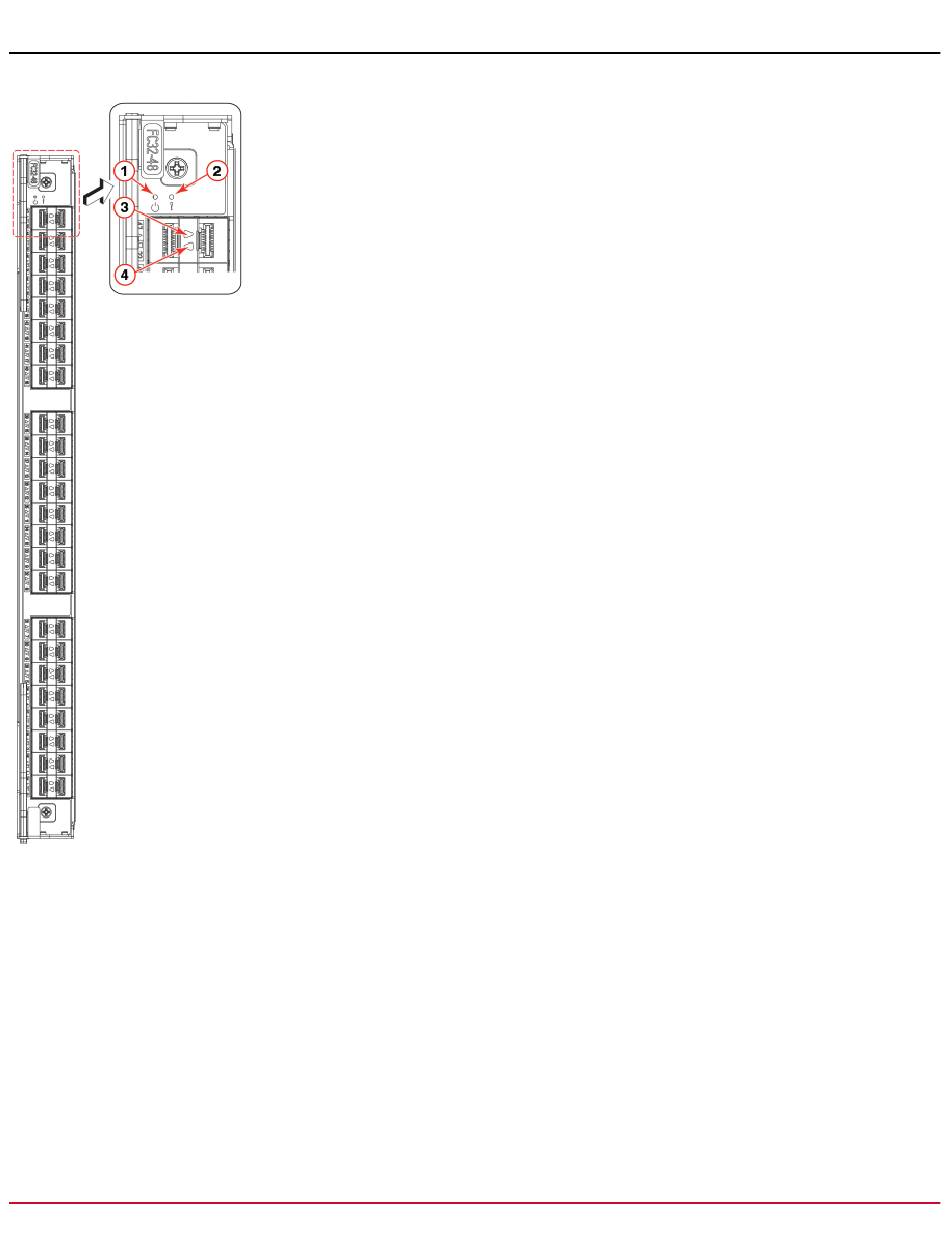

Figure 25: FC32-48 Port Blade LEDs
1. Blade power LED
2. Blade status LED
3. Status LED for right FC port
4. Status LED for left FC port
The following table describes the port blade LED patterns and the recommended actions for those patterns.
Broadcom
53-1004105-13
68
