53-1004105-13 Hardware Installation Guide
2. Align the ball stud attachment holes located vertically on each side of the rear of door with the ball studs on each
chassis mounting ear. Push door onto chassis to snap onto the studs.

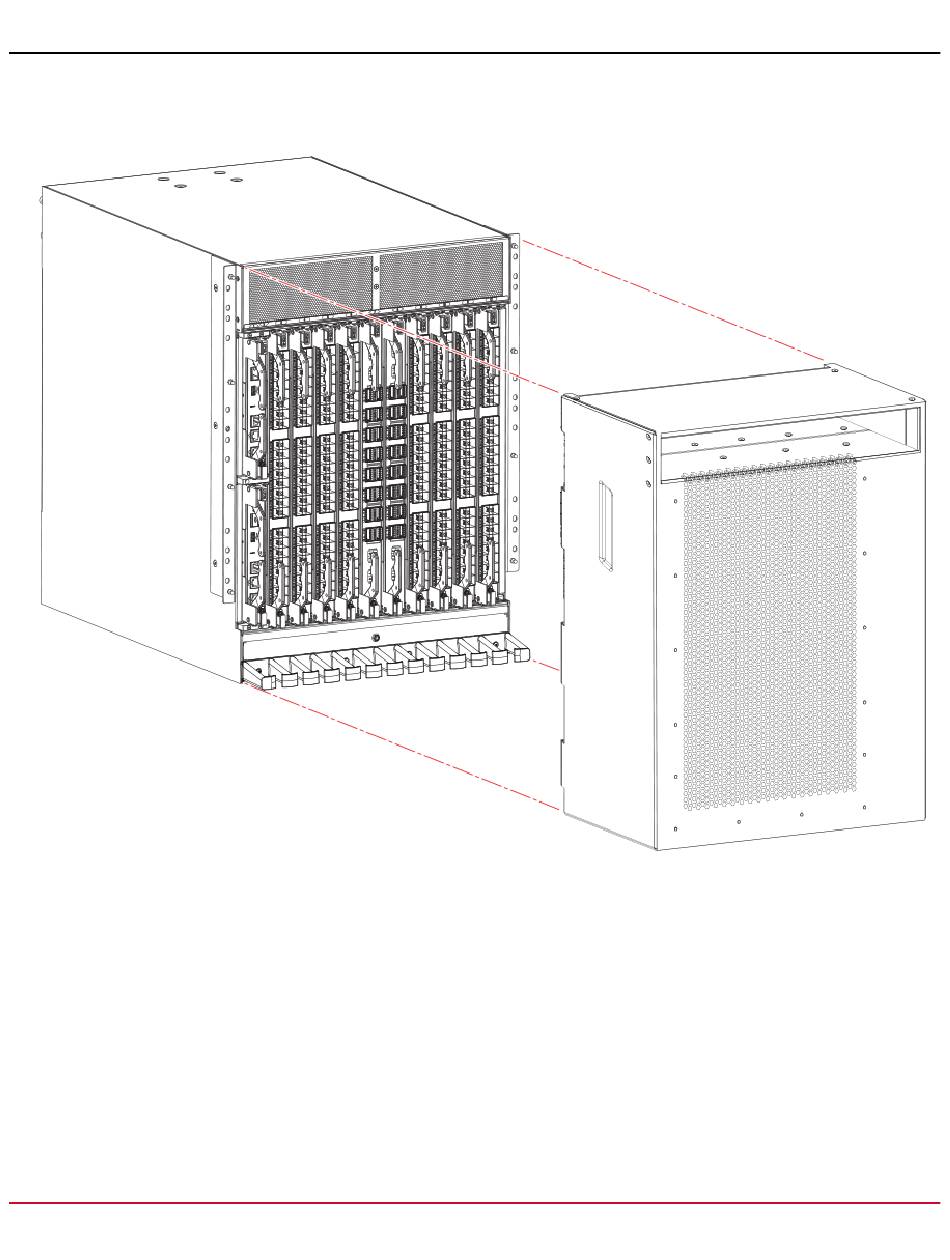

Figure 60: Removal and Replacement of the Chassis Door
Broadcom
Brocade X6-8 Director
Hardware Installation Guide
53-1004105-13
169
