Assembling the Rack Hardware

Perform the following steps to assemble the rack hardware.
1. Attach the rear tray (with or without an adapter, as required) to both rack rails. Orient the tray (see the following figure)
and use nine screws (Item 5) for each rail.
2. Attach the front tray to both rack rails. Orient the tray and use nine screws (Item 5) for each rail.
3. Verify that the rear edge of the front tray is seated into the front edge of the rear tray.

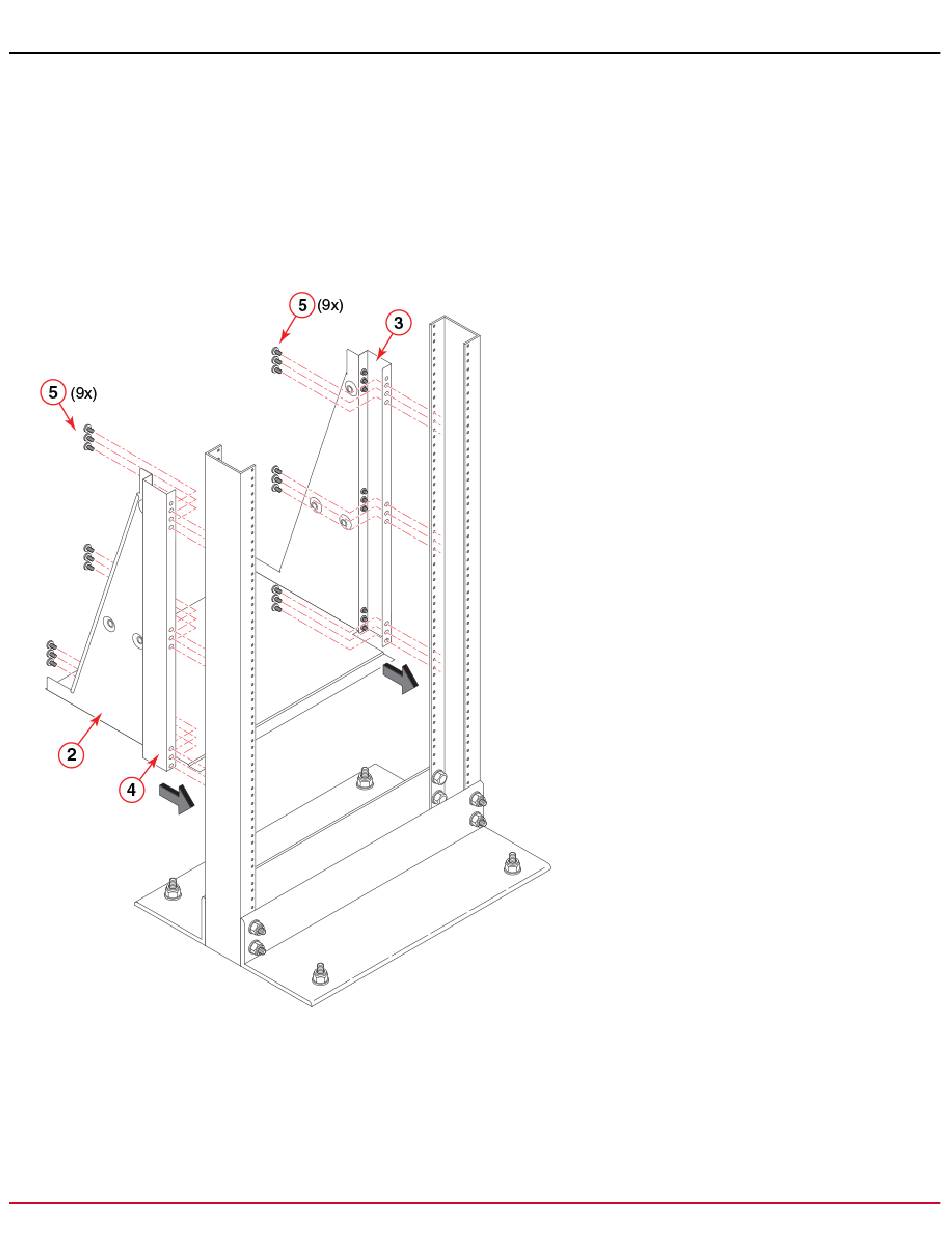

Figure 9: Attaching the Rear Tray to the Rack Rails
2. Tray, rear, mid-mount, chassis
3. Adapter, rear, mid-mount, right
4. Adapter, rear, mid-mount, left
5. Screws
