Wiring The Tx3-Nsl-8M Main Controller Board; Figure 34 Tx3-Nsl-8M Main Controller Board - Mircom TX3 Series Installation And Operation Manual

5.3

Wiring the TX3-NSL-8M Main Controller Board

The TX3-NSL-8M NSL Main Controller Board has both ribbon cable sockets
and screw terminals.
Attention: High voltages are present on this board during the ringing of suite

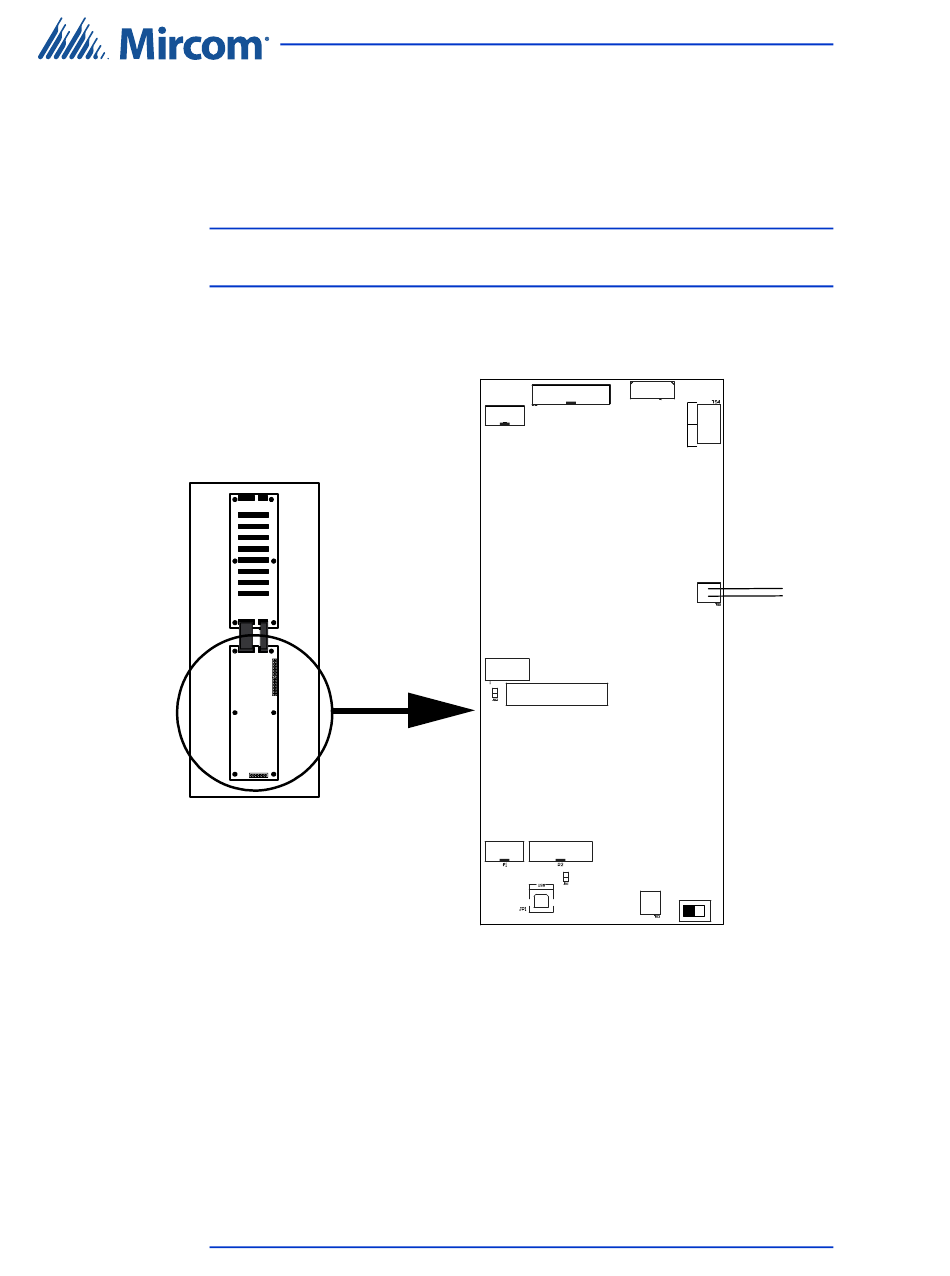

Figure 34 shows the general layout of the TX3-NSL-8M Main Controller board
components.
TX3-NSL-8M Relay Control Unit
Figure 34.
5.3.1 Connectors
USB. Computer connection for firmware download.
P1 and P2. Not used.
P3. Not used.
