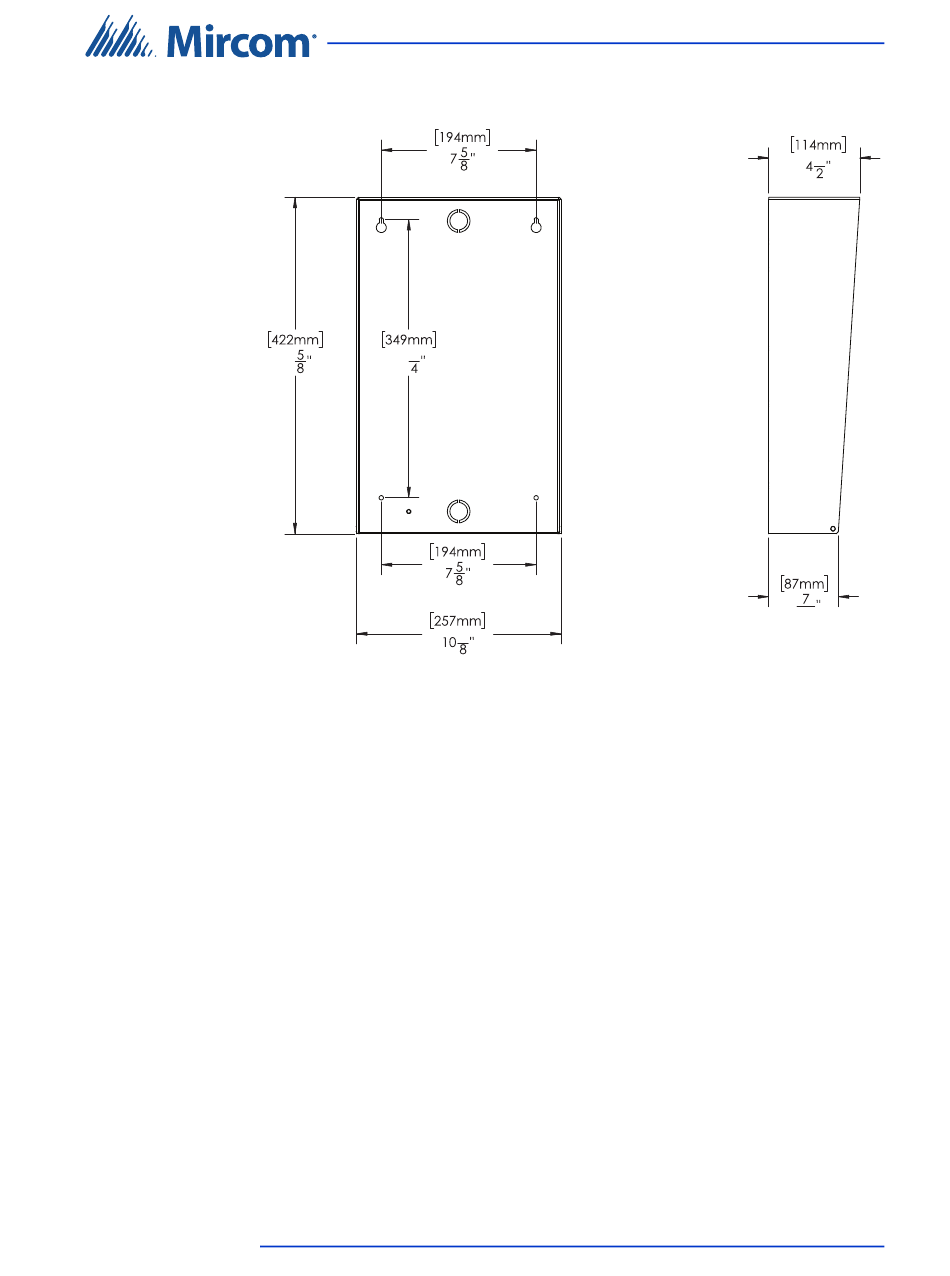

Figure 1 Tx3-200-8U-C, Tx3-1000-8U-C, Tx3-2000-8U-C, Tx3-120U-C Dimensions - Mircom TX3 Series Installation And Operation Manual

2.2.1 Installing the Universal enclosure
Figure 1.
The Universal enclosure mounts inside the wall with or without the TX3-UFT
Universal Series Flush Trim Ring TX3-UFT. This Trim Ring houses the
universal series enclosure as shown in figure 3.
TX3 Telephone Access System Installation and Operation Manual
13 3
16
TX3-200-8U-C, TX3-1000-8U-C, TX3-2000-8U-C, TX3-120U-C
Dimensions
