Figure 2.
Figure 3.
TX3 Telephone Access System Installation and Operation Manual
20
1
10

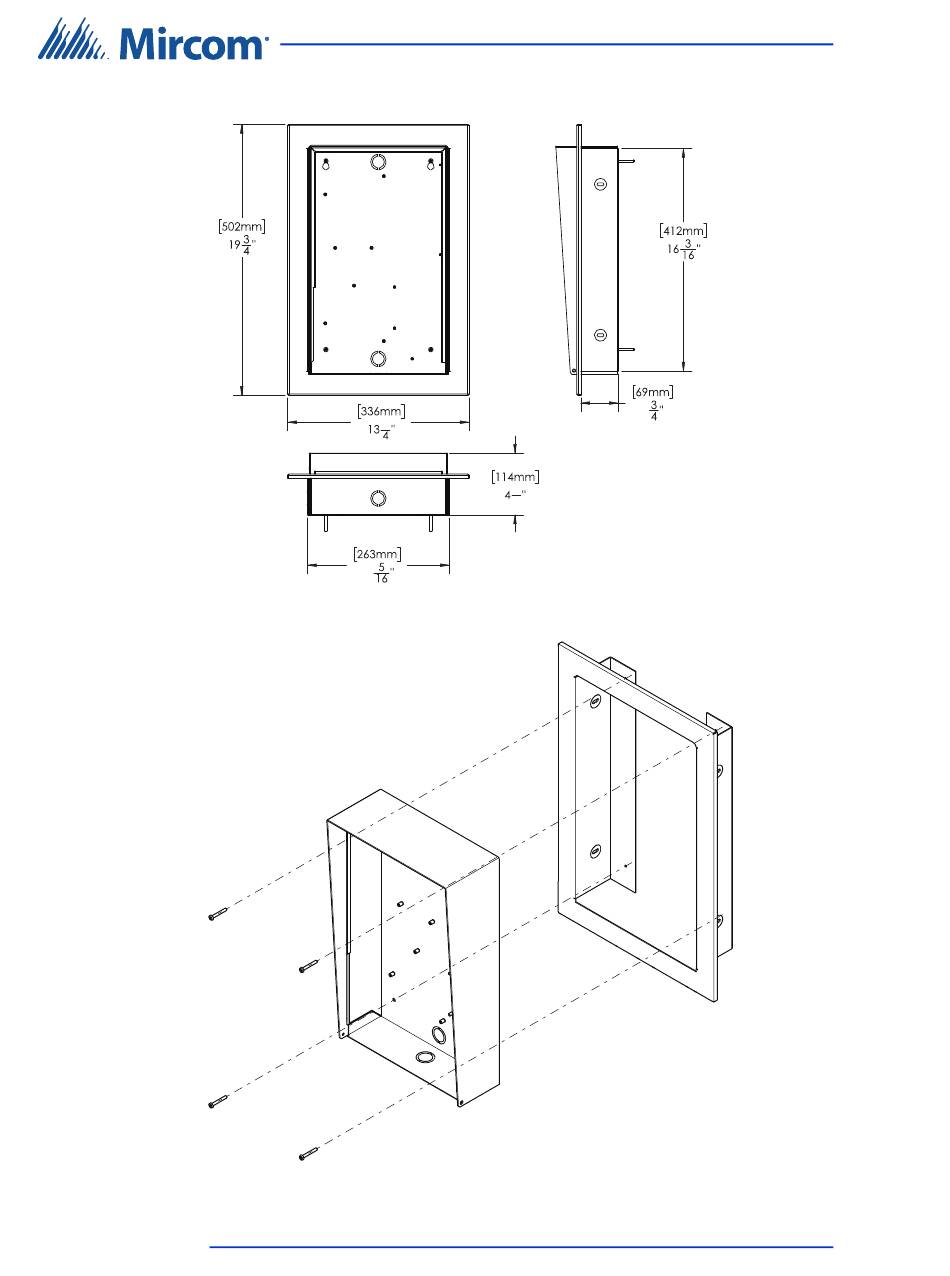

Dimensions of TX3-UFT and the Universal enclosure
Universal
Enclosure
Mounting TX3-UFT Universal Series Flush Trim Ring
Enclosure Installation
2
1
2
TX3-UFT
Semi-Flush Trim
Cutout in wall should be:
17" (432 mm) H
10 5/8" (269 mm) W
3" (76 mm) D
