Dual Lobby Control Units

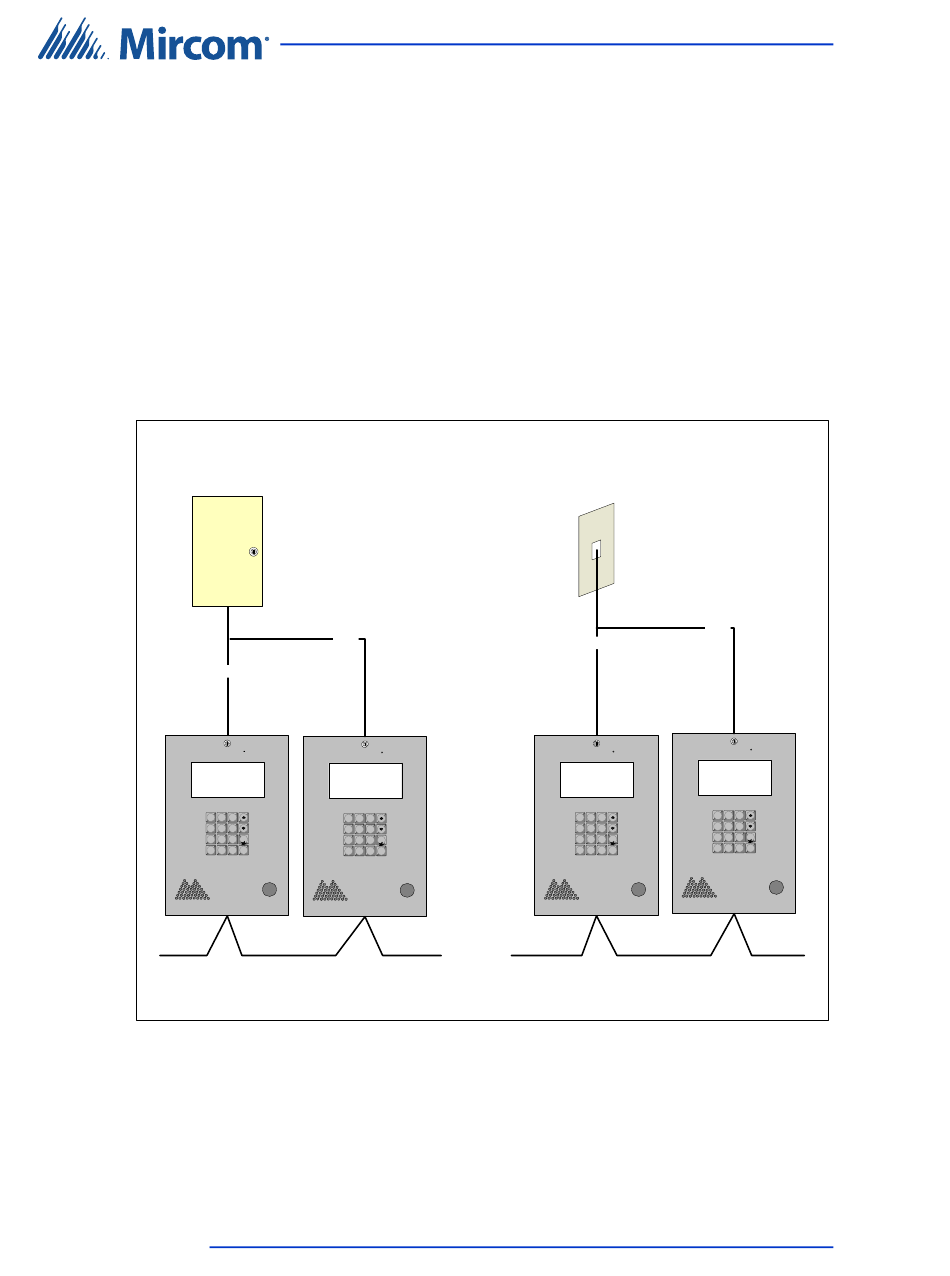

Figure 13 shows a dual entry application for either an NSL type or ADC
connection type. The phone line from either the NSL control unit or an ADC
dedicated phone line is shared by both Lobby Control Units.
The Lobby Control Unit senses whether the line in use. If one of the Lobby
Control Units is in use and the user tries to make a call, the other lobby indicates
that the line is in use.
The RS-485 network connection is optional and is only required if the user
decides to connect a PC configurator on one of the panels to configure and/or
monitor both systems.
