Outputs; Figure 11 Input - Supervised For Open And Short - Mircom TX3 Series Installation Manual

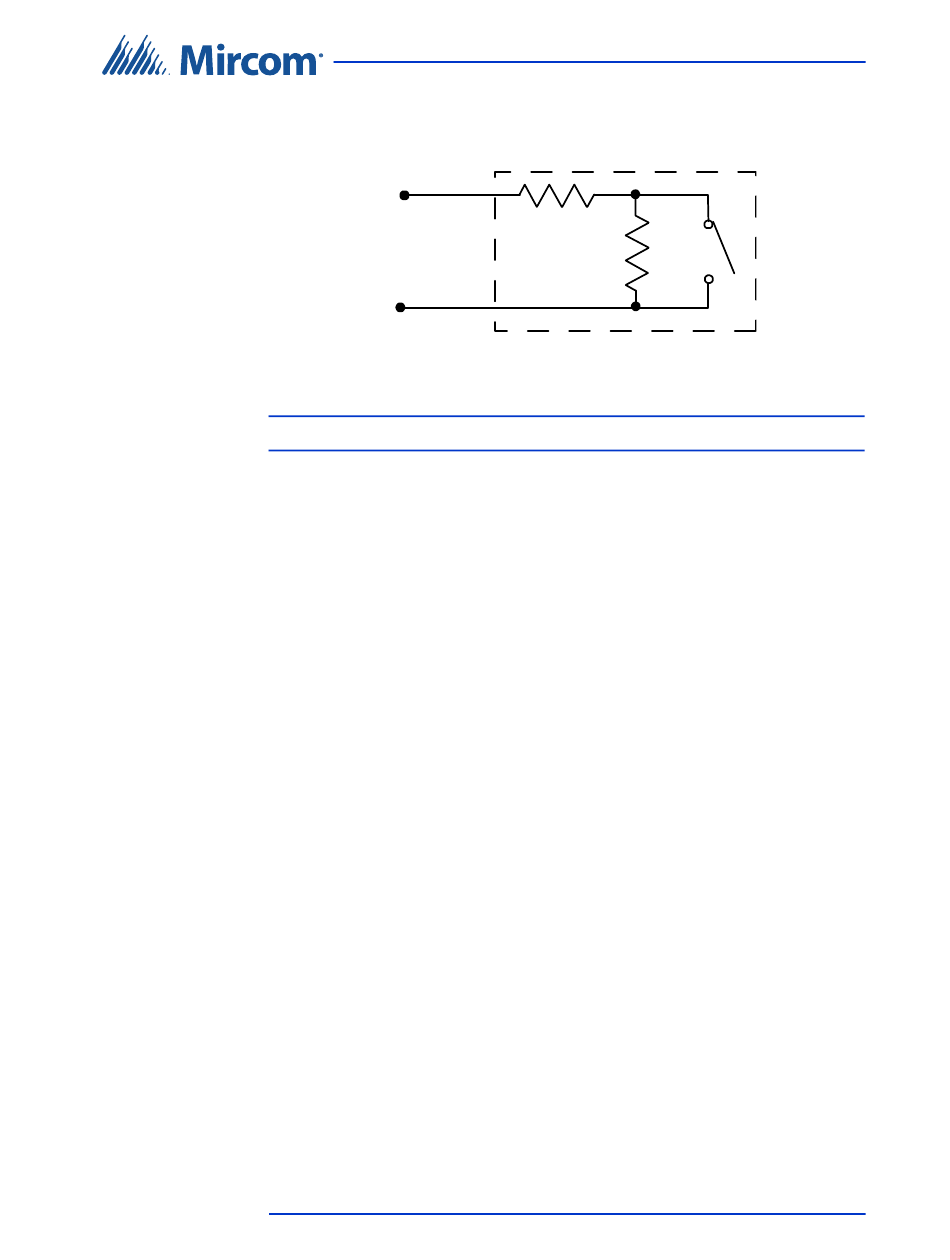

Two 22K ohm resistors are required for supervision.
Figure 11.
Note:
2.7.6 Alarm Delay
Alarm delay is a Configurator defined parameter that specifies the amount of
time before an input raises an alarm condition. For more information see LT-980
TX3-CX Card Access System Manual.
2.8

Outputs

There are 3 outputs, as shown in Figure 4. For details on programming the
outputs, see LT-995.
2.8.1 Outputs 1 and 2
Outputs 1 and 2 are relay contact programmable outputs with the following
characteristics:
•
•
•
•
Outputs 1 and 2 are configured as follows by default:
•
TX3-CX-1 Installation Manual
Version 1.1
LT-6618 Copyright 2019
Active when short
Input - Supervised for Open and Short
The active state cannot be an open state.
normally open (NO)
normally closed (NC) available
30 VDC/1 A, 0.6 power factor
or
125 VAC/0.25 A, 0.6 power factor
Output 1: Lock. Connect this output to a door strike. When access is
granted, this output unlocks the door.
22 K ohms
22 K ohms
Installation of TX3-CX-1
19
