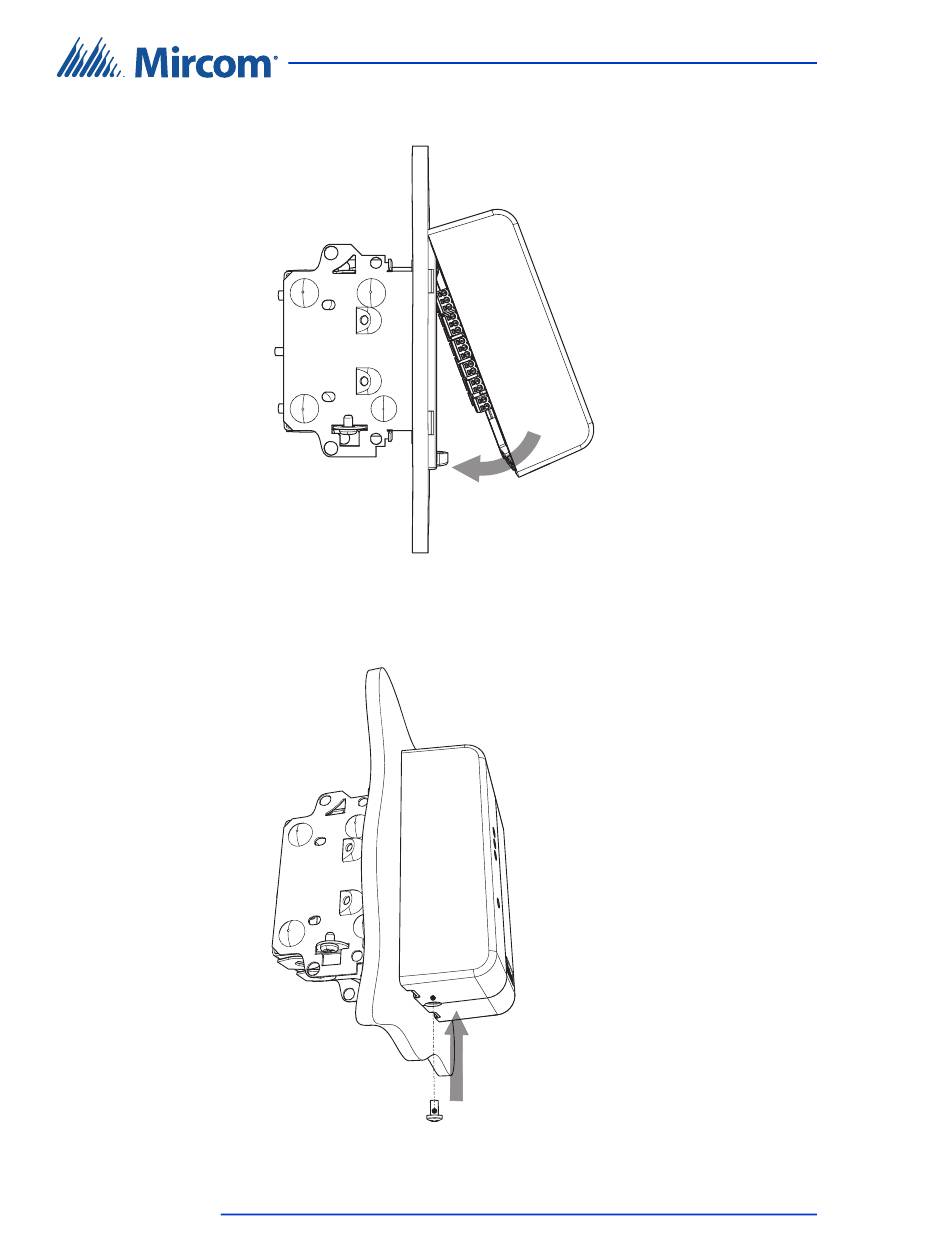

Figure 16. Fitting the body to the mounting plate

Figure 17. Securing the body to the mounting plate

TX3-CX-1 Installation Manual

LT-6618

Press the body on to the mounting plate until you hear a click.

Secure the body to the mounting plate with the provided #6-32 x 0.25"

screw.

Installation of TX3-CX-1
