2.11

Status LEDs

Trouble: Flashes amber to indicate trouble

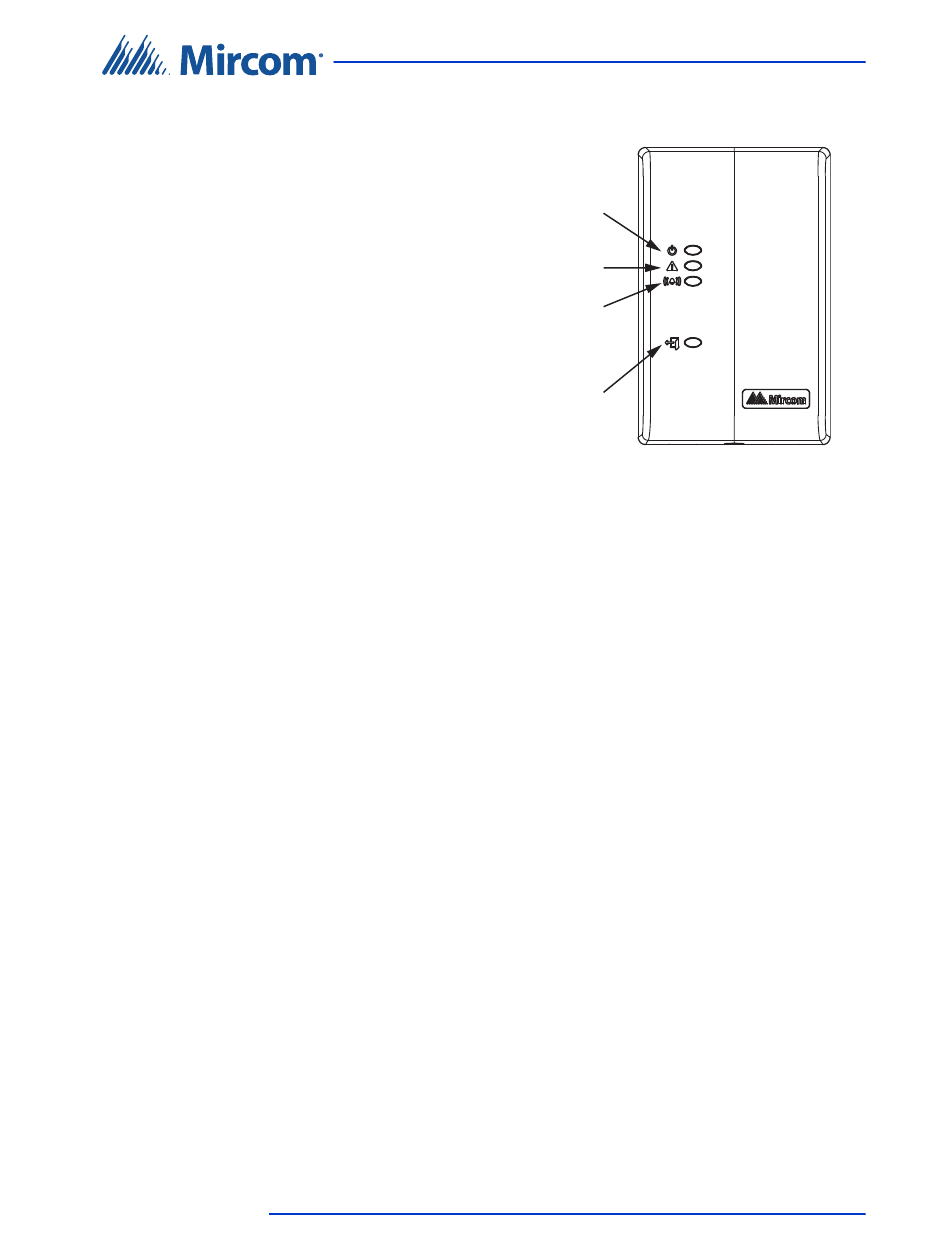

Figure 20. Status LEDs on TX3-CX-1
Power On. This LED illuminates steady green when AC power is present.
Trouble. This LED flashes amber at a slow rate when there is a common trouble
condition in the system. Trouble consists of:
•
•
•
Alarm. This LED flashes red at a fast flash rate when there is a forced entry or the
door held open alarm timer expires.
2.12

Card Reader Beeper

The beeper indicates specific events at different beep rates as follows:
•
•
•
•
•
TX3-CX-1 Installation Manual
Version 1.1
LT-6618 Copyright 2019
Power On: Steady green when
controller is on
Alarm: Flashes red to indicate alarm
Card reader status
Green: Door is unlocked
Red: Door is locked
any supervised input
AC power/low battery
door held open warning
Card Presented. One short beep.
Access Granted. Two short beeps.
Access Denied. One short beep and one long beep.
Mode of Operation Changed. Three short beeps indicate a change in the
on or off state for the high security or the unlock mode.
Alarm. Continuous short beeps.
Installation of TX3-CX-1
27
