1.

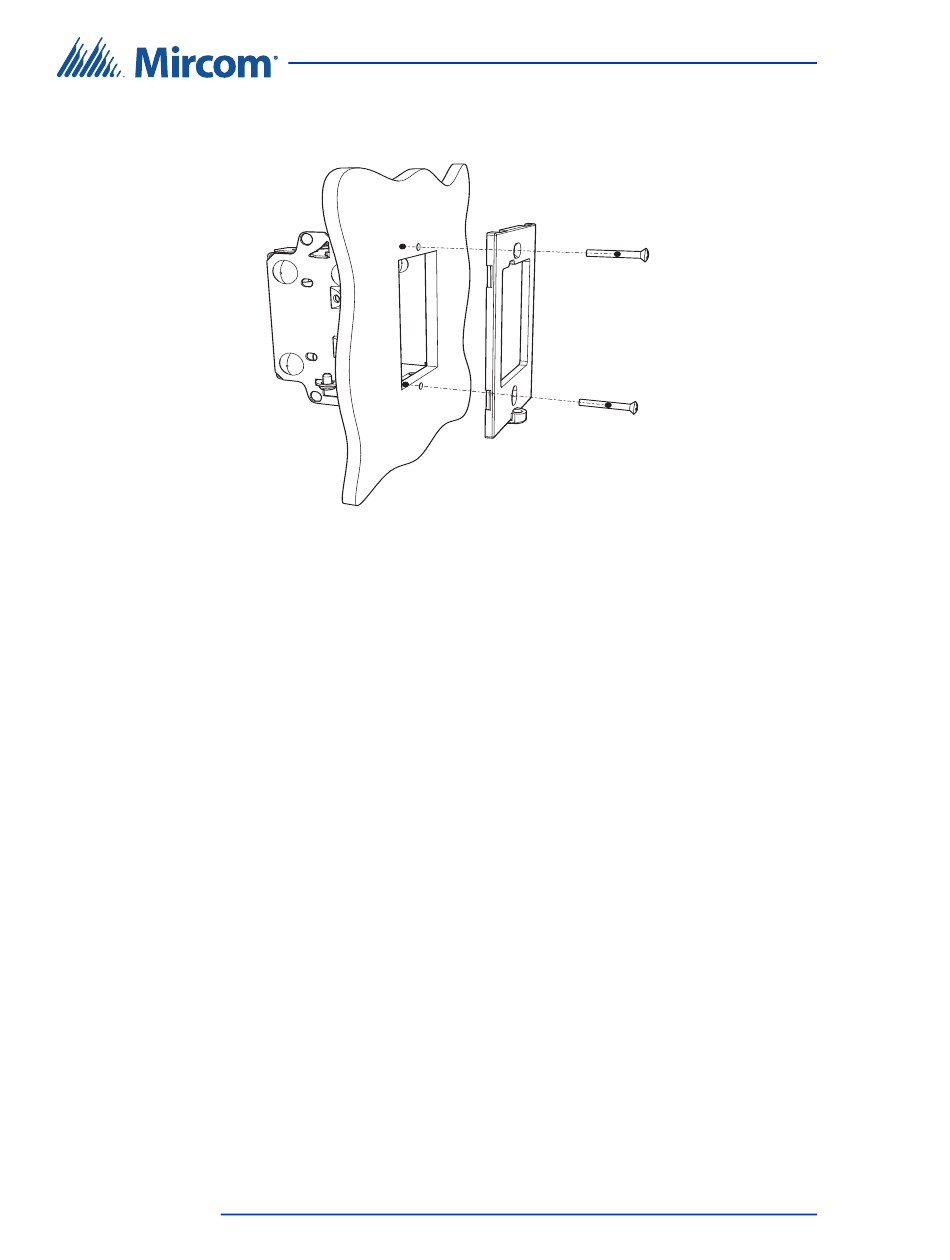

Figure 14. Attaching the mounting plate to the single gang box
2.
TX3-CX-1 Installation Manual
22
LT-6618
Copyright 2019
Attach the mounting plate to the single gang box with the two provided
#6-32 x 1" screws.
Feed the wires through the hole in the mounting plate and connect them to
TX3-CX-1. See section 2.2 on page 12.
Installation of TX3-CX-1
Version 1.1
