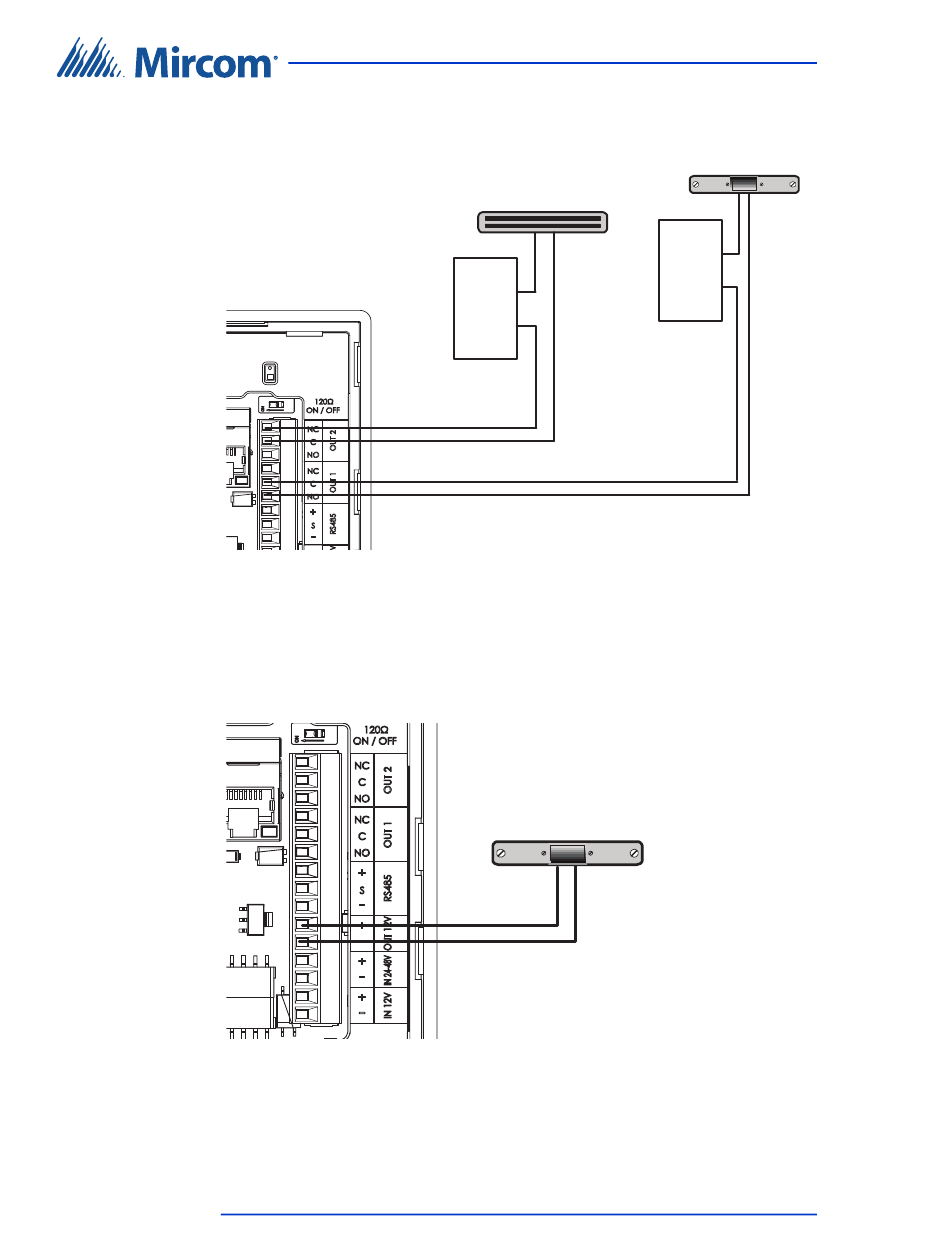

Figure 12. Outputs 1 and 2: Sample Connections
2.8.2 Output 3
Output 3 is a solid state output providing 12 V / 500 mA max. It can power a DC
lock.
Figure 13. Output 3: Sample Connection
TX3-CX-1 Installation Manual
20
LT-6618 Copyright 2019
Output 2: General purpose.
Normally
Closed
Common
+
-
Maglock
External
power
supply
Common
Normally
Open
DC Maglock
Installation of TX3-CX-1
Door Strike
External
power
supply
Version 1.1
