2.2

Wiring

INPUT 4
General purpose
22 AWG
INPUT 3
General purpose
22 AWG
INPUT 2
Request to Exit (built-in reader)
22 AWG
INPUT 1
Door contact (built-in reader)
22 AWG
READER
Wiegand connections
for external card reader
22-16 AWG

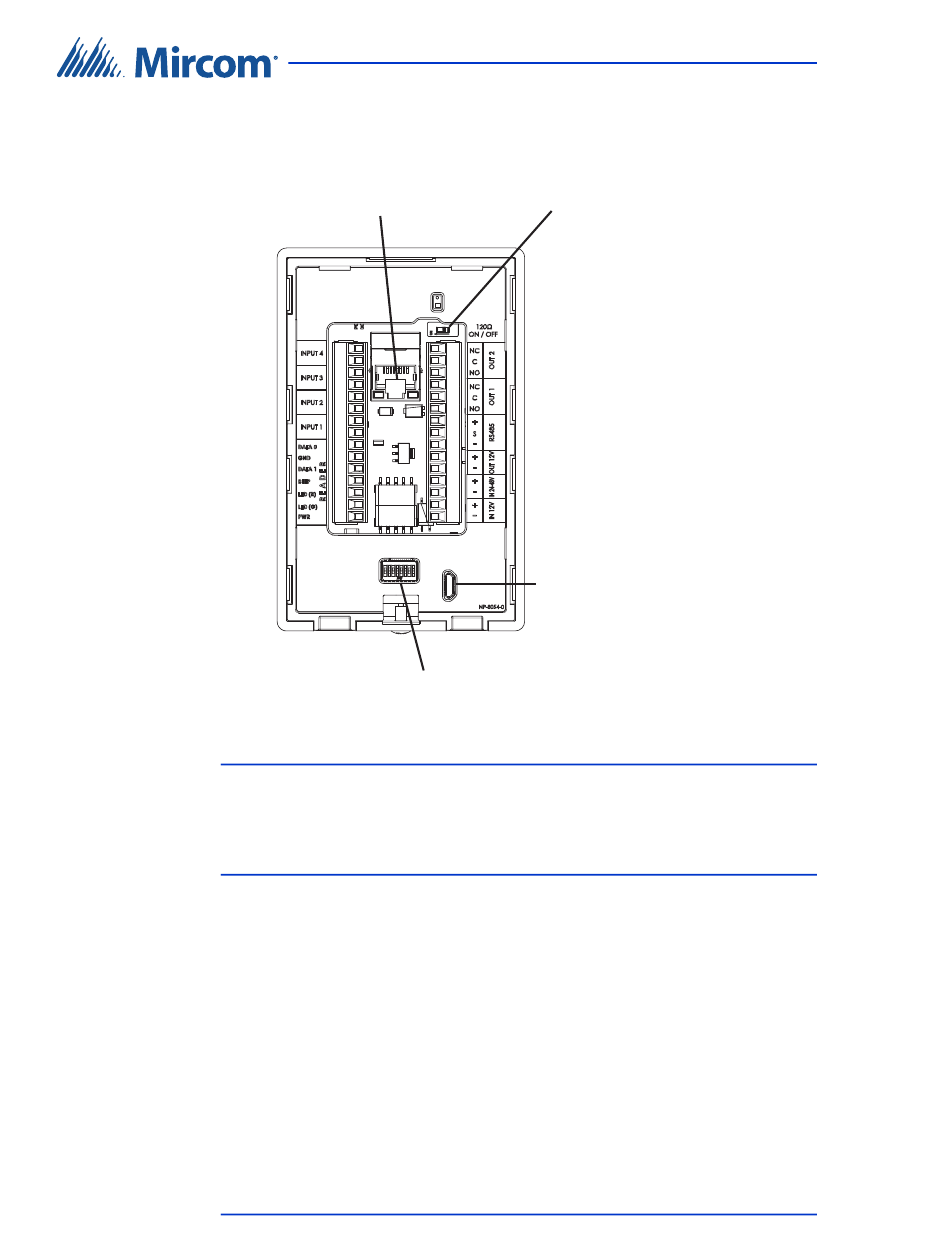

Figure 4.
Note:
2.3

DIP Switches

The location of the DIP switches is shown in Figure 4.
•
•
•
TX3-CX-1 Installation Manual
12
LT-6618 Copyright 2019
RJ45 connector for Internet
communication. Power can be provided
through Power over Ethernet if not
provided by the DC power terminals.
DIP switches for setting RS-485 address
Terminal connections on TX3-CX-1
Wiring must be accordance with the National Electrical Code,
ANSI/NFPA 70.
Use the included screwdriver (part number HD-016) to wire the
terminals.
DIP switches 1-6: use to set the RS-485 network address.
DIP switch 7: leave off.
DIP switch 8: Set open (off) to get an IP address from the DCHP server,
and set closed (on) to set a fixed IP address using the TX3 Configurator
software. The default setting is off.
Installation of TX3-CX-1
Set ON if unit is used as first or last controller on
RS-485 network. Otherwise set OFF. The default
setting is OFF.
Outputs labeled OUT 1 and OUT 2
are relay contact programmable
outputs with the following
characteristics:
normally open (NO)
normally closed (NC) available
30 VDC/1 A, 0.6 power factor
or
125 VAC/0.25 A, 0.6 power factor
OUT 2: General purpose output (18 AWG)
OUT 1: Door lock (18 AWG)
RS485: Shielded twisted pair
OUT 12V: Solid state output for a DC lock (22-18 AWG)
12 VDC/500 mA max.
IN 24-48V: 24-48 VDC / 15 W input power (20-18 AWG)
IN 12V: 12 VDC / 15 W input power (18 AWG)
Micro USB port:
Connect to computer for network
firmware upgrade and
configuration
(maximum length of USB cable:
8 feet/2.4 m)
