User manual
3.10)

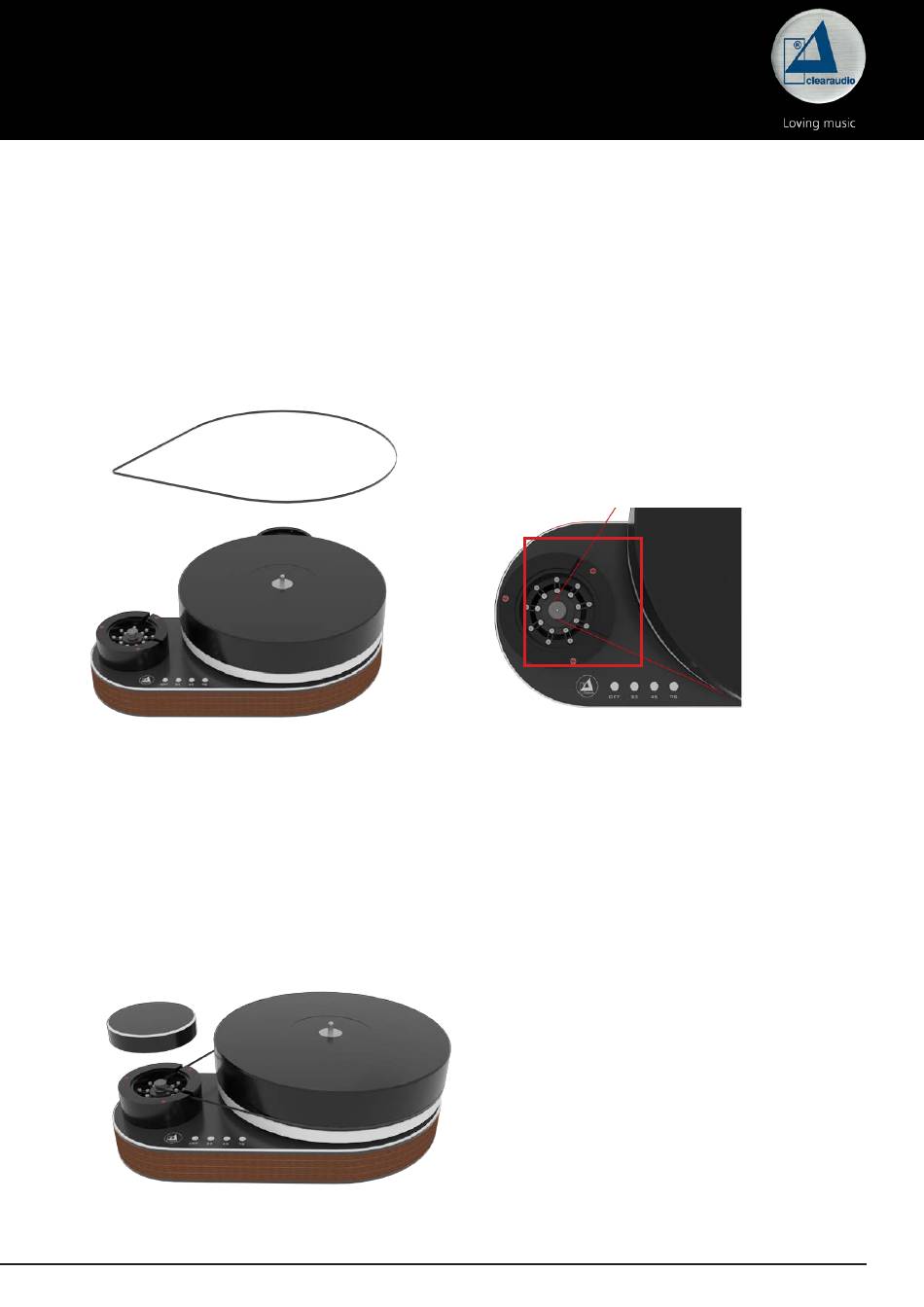

Place the flat belt around the platter and the motor pulley.
Make sure that the belt runs in the cutouts of the motor housing.
To ensure that the belt does not come off when it is started up for the first time, we recommend
holding the flat belt in position with your finger and turning the platter by hand until the belt remains
in the correct position.
Pic. 11: Mounting the belt
Close the motor unit with the supplied motor cover.
Make sure that magnets are on top of each other.
Pic. 12: Placing the motor cover
Made in Germany
Page 11
