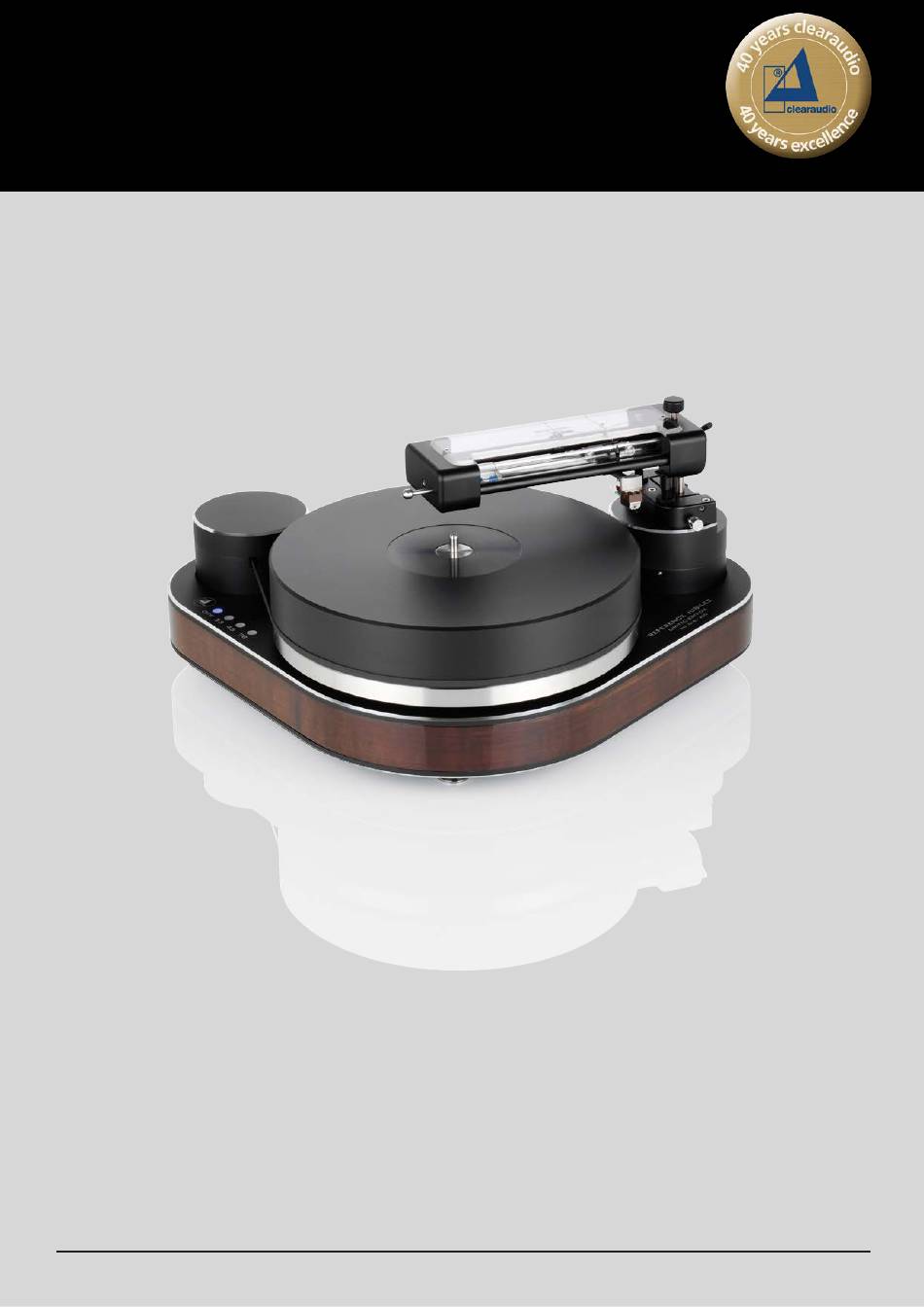

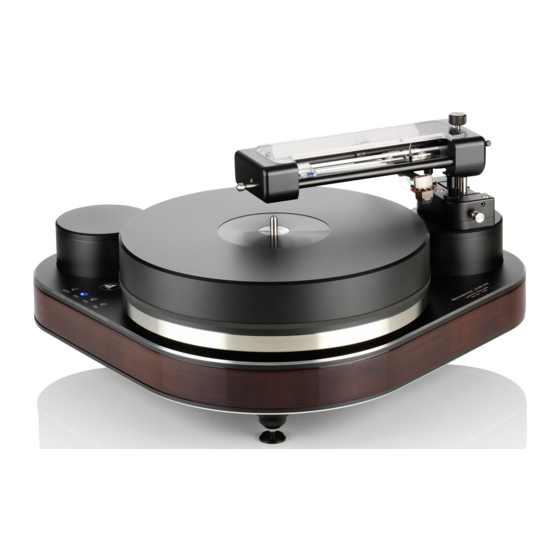

- Page 1 Reference Jubilee User manual Pic. similar © clearaudio electronic GmbH, 2021-04 Made in Germany...
- Page 2 Please read this instruction manual carefully to avoid any potential damage or loss of warranty. The manual will help to ensure an easy setup, and enable the greatest listening pleasure for years to come. Thank you for your confidence in us and we hope you enjoy your new Clearaudio Reference Jubilee turntable.
-
Page 3: Table Of Contents
User manual Contents 1. Package contents overview ..........4 2. List of components ...............5 - 6 3. Set-up ..................7 - 12 4. Mounting of tonearm and cartridge ........13 5. Initial operation and calibration of the speed .....14 - 15 6. Special instruction..............15 7. -
Page 4: Package Contents Overview
User manual 1. Package contents overview Clearaudio has developed a special, secure packing for your Reference Jubilee turntable to ensures a safe transportation. ANSICHT10 ( 1 : 10 ) ICHT7 ( 1 : 10 ) Please keep this original packing, if you need to ship the turntable. -
Page 5: List Of Components
User manual 2. List of components Please use the list below to check that all components of your newly purchased Clearaudio Reference Jubilee turntable have been correctly supplied. Pic. 2: List of components Turntable chassis with incl. lower Magnet bearing (upper part) - Page 6 Tonearm base (depending on the tonearm ordered, this may be included in delivery or pre-mounted) 1x flat belt Not shown: Warranty card, Clearaudio quality card, return delivery note 5x hex wrench Not shown: Sizes 1.5; 2; 2.5; 3; 7 User manual...
-
Page 7: Set-Up
User manual 3. Set-up Reference Jubilee The set-up of the turntable is easy as the turntable chassis is pre-assembled and has been tested at the factory. Please use the white gloves enclosed in order to avoid scratches or unwanted fingerprints (platter). - Page 8 Remove the protective security tape from the bearing housing. Place two drops of the synthetic bearing oil on the ceramic bearing shaft (also available at www.analogshop.de, Art. No. AC068). Pic. 6: Oiling the bearing shaft Page 8 © clearaudio electronic GmbH, 2021-04...
- Page 9 User manual Remove the protecitve film from the sensor mounted in the turntable chassis. Please remove the protective film extreme carefully and avoid any soiling and scratches. 3.6. Using both hands, carefully take the stainless steel sub-platter out of the box. Carefully remove the protective film from the sensor ring on the underside of the sub-platter.
- Page 10 Please ensure that the platter is at least room temperature (approx. 20°C) while mounting to avoid any damage to the bearing. Avoid major side forces to avoid any damages to the ceramic bearing! Pic. 10: Mounting the POM platter Page 10 © clearaudio electronic GmbH, 2021-04...
- Page 11 User manual 3.10) Place the flat belt around the platter and the motor pulley. Make sure that the belt runs in the cutouts of the motor housing. To ensure that the belt does not come off when it is started up for the first time, we recommend holding the flat belt in position with your finger and turning the platter by hand until the belt remains in the correct position.
- Page 12 Pic. 13 a: Alignment of the Pic. 13 b: Adjustment of the turntable feets turntable 3.12) Please connect the mains plug to your power supply. Pic. 14: Connection power supply and motor Page 12 © clearaudio electronic GmbH, 2021-04...
-
Page 13: Mounting Of Tonearm And Cartridge
For mounting and adjustment of the cartridge, please proceed as described in the relevant cartridge user manual. Clearaudio offers a selection of professional setting tools for your turntable. Please contact your dealer / distributor for more information. Made in Germany... -
Page 14: Initial Operation And Calibration Of The Speed
The calibration for 78rpm is complete when all 3 speed options and the OFF button flash alternately. A longer press on OFF (speed options stop flashing) saves the calibration of all three speeds. To stop the calibration process you can press any button. Page 14 © clearaudio electronic GmbH, 2021-04... -
Page 15: Special Instruction
6.2) Transport Reference Jubilee turntable must only ever be shipped in its original packaging. This is a condition of the Clearaudio warranty. If you repackage the turntable, please follow all steps given for installation and setup, in reverse. Reference Jubilee •... -
Page 16: Technical Data
(without tonarm base, without tonearm) Manufacturer warranty: 2 years* * Provided that the warranty card is correctly completed and returned to Clearaudio, or your product is registered online at https://clearaudio.de/en/service/registration.php, within 14 days of purchase. Page 16 © clearaudio electronic GmbH, 2021-04... -
Page 17: Warranty Information
Le reçu ou la facture constituent des preuves suffisantes. DEUTSCH GARANTIE Bei Garantiefragen wenden Sie sich bitte zunächst an Ihren Clearaudio Händler. Heben Sie Ihren Kaufbeleg gut auf. WICHTIG! Die Angaben auf Ihrer Quittung erlauben uns die Identifizierung Ihres Gerätes und belegen mit dem Kaufdatum die Dauer Ihrer Garantie-Ansprüche. - Page 18 ESPAÑOL GARANTIA Para obtener información acerca de la garantia póngase en contacto con su distribuidor Clearaudio. GUARDE SU RECIBO DE COMPRA Su recibo de compra es su prueba permanente de haber adquirido un aparato de valor, Este recibo deberá guardarlo en un lugar seguro y utilizarlo como referencia cuando tenga que hacer uso del seguro o se ponga en contacto con Clearaudio.
- Page 19 User manual Made in Germany Page 19...
- Page 20 Handmade in Germany Clearaudio Electronic accepts no liability for any misprints. Technical specifications are subject to change or improvement without prior notice. Product availability is as long as stock lasts. Copies and reprints of this document, including extracts, require written consent from Clearaudio Electronic GmbH, Germany.
