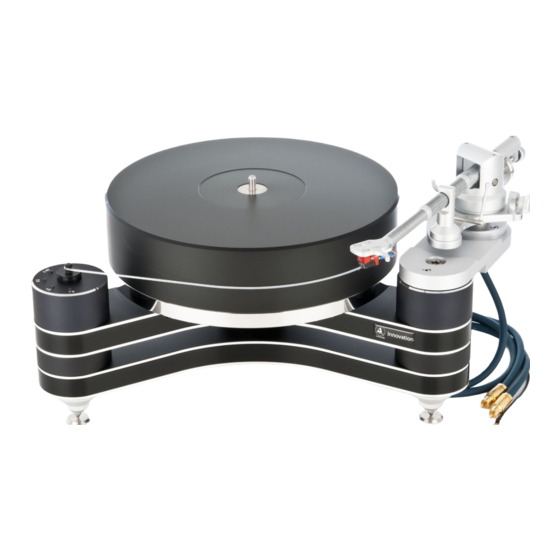

Picture: Package with

Clearaudio tonearm „TT3"

and Clearaudio cartridge

„Titanium V2 ".

Innovation Wood

Picture: Package with

Clearaudio tonearm

„Universal" and Clearaudio

cartridge „da Vinci V2 ".

Made in Germany

Table of Contents

Need help?

Do you have a question about the Innovation and is the answer not in the manual?

Questions and answers

Summary of Contents for Clearaudio Innovation

Page 1 Innovation User manual Innovation Picture: Package with Clearaudio tonearm „TT3“ and Clearaudio cartridge „Titanium V2 “. Innovation Wood Picture: Package with Clearaudio tonearm „Universal“ and Clearaudio cartridge „da Vinci V2 “. © clearaudio electronic GmbH, 2017/11 Made in Germany...
Page 2 EQUIPMENT MAINS WORKING SETTING Your Clearaudio product has been prepared to comply with the household power and safety requi- rements that exist in your area. This product can be connected to 230 V or 110 V AC (50 Hz and 60 Hz).
Page 3: Table Of Contents
User manual Contents 1. Packing overview ..........4 2. List of components ..........5 - 6 3. Installation and setup ......... 7 - 12 4. Fine adjustment of the motor ......13 5. Service and special instruction ......14 6. Technical data ............. 15 Warranty information ..........16 Stroboscope Testrecord user manual ......
Page 4: Packing Overview
Tonearm Stainless steel-sub- platter; Delrin or Ac- rylic platter; power supply; upper bearing part and – cap optional: Cartridge Pic. 1: Packing overview © clearaudio electronic GmbH, 2017/11...
Page 5: List Of Components
User manual 2. List of components Innovation Clearaudio has developed a special and secure packing for your turntable that ensures a safe transportation. Please keep this original packing, if you need to ship the turntable. Innovation Below you find the part list of the Clearaudio turntable: Pic.
Page 6 16 a 16 b Pic. 2.1: List of components 1 Pair of white gloves Bearing oil for occasional use Grounding - wire for the Innovation Optional in package: da Vinci turntable (to connect in the bottom 16 a Clearaudio MC cartridge...
Page 7: Installation And Setup
User manual 3. Installation and setup Innovation The setup of the turntable is easy as the turntable chassis is pre-assembled and has been tested at the factory. Please use the white gloves enclosed in order to avoid scratches or unwanted fingerprints (platter).
Page 8 Place these flat pads on your hifi-rack or another suitable base, where the final position of your Innovation turntable will be. After that, take the Innovation turntable body of the next packing layer and place the spikes of the turntable on the flat pads. Innovation Pic.
Page 9 User manual Take the stainless steel platter with both hands carefully out of the box. Remove the lamination of the scale ring on the lower side of the turntable. Please remove the lamination extreme carefully and avoid any soiling and scratches. Push the delivered bearing part carefully through the hole in the stainless steel sub-platter and mount the bearing part with the sub-platter by using the mounting clip.
Page 10 Avoid major side forces to avoid any damages to the ceramic bearing! Pic. 11: Setup Delrin platter and bearing cap You will find suitable adjustment equipment under www.clearaudio.de or www.analogshop.de. 10.) To install the tonearm, please follow the user manual of the manufacturer. © clearaudio electronic GmbH, 2017/11...
Page 11 User manual 11.) To mount and adjust a cartridge, please follow the user manual of the manufacturer. If you purchased your Clearaudio Innovation turntable as a package with tonearm and cartridge, Smart Level Gauge you will find a in your accessory, which will help you to adjust the Tracking Force...
Page 12 33 1/3 rpm is reached. After the initial setup we recommend to let the turntable spin for at least 15 to 30 minutes. This ensures a smoother break in. Pic. 14: Connection power supply and motor © clearaudio electronic GmbH, 2017/11...
Page 13: Fine Adjustment Of The Motor
Clean the sensor and the scale ring with a little isopropyl alcohol and a cotton bud. Be careful and avoid any scratches on the sensor or the scale ring! If the motor has further more speed variations please contact your nearest authorized Clearaudio dealer or directly the Clearaudio factory (address on page 14).
Page 14: Service And Special Instruction
• To avoid any dust coming into the bearing, the bearing hole needs to be covered as well. Only if the product is returned in its original packing Clearaudio can provide the warranty. 5.3 Service In case of any necessary, service for all Clearaudio products should be done by authorized perso- nal only. Innovation...
Page 15: Technical Data
Warranty: 5 years* (see page 16) * Provided that the warranty card is correctly completed and returned to Clearaudio within 14 days of purchase. Clearaudio electronic is not responsible for typographical errors in descriptions. Technical specifications subject to change or improvement without prior notice.
Page 16: Warranty Information
User manual To achieve the full Clearaudio warranty (Innovation turntable 5 years), it is necessary that you fill out and send the corresponding part of the warranty registration certificate /card back to Clearaudio, within two weeks after purchase. Only if the product is returned in its original packing Clearaudio can provide the warranty of 5 years.
Page 17: Stroboscope Testrecord User Manual
ESPAÑOL GARANTIA Para obtener información acerca de la garantia póngase en contacto con su distribuidor Clearaudio. GUARDE SU RECIBO DE COMPRA Su recibo de compra es su prueba permanente de haber adquirido un aparato de valor, Este recibo deberá...
Page 18 Stroboscope Testrecord Please place the on your turntable platter and start the engine of your Stroboscope Testrecord turntable. The big advantage of the Clearaudio is, that you can place your Stroboscope Testrecord cartridge onto the , while measuring the speed, as there are grooves provi- ded on the disc.
Page 19 With the outside scale you can detect the speed of 33 Hz and with the inside scale you can detect Stroboscope Testrecord the speed of 45 Hz. Again, the big advantage of the Clearaudio is, that Stroboscope Testrecord...
Page 20 91054 Erlangen Germany Phone/Tel.: +49 9131 40300 100 Fax: +49 9131 40300 119 www.clearaudio.de www.analogshop.de info@clearaudio.de Handmade in Germany (Technische Änderungen vorbehalten - Technical specification are subject to change without prior notification) 2017 © clearaudio electronic GmbH, 2017/11 Made in Germany...
