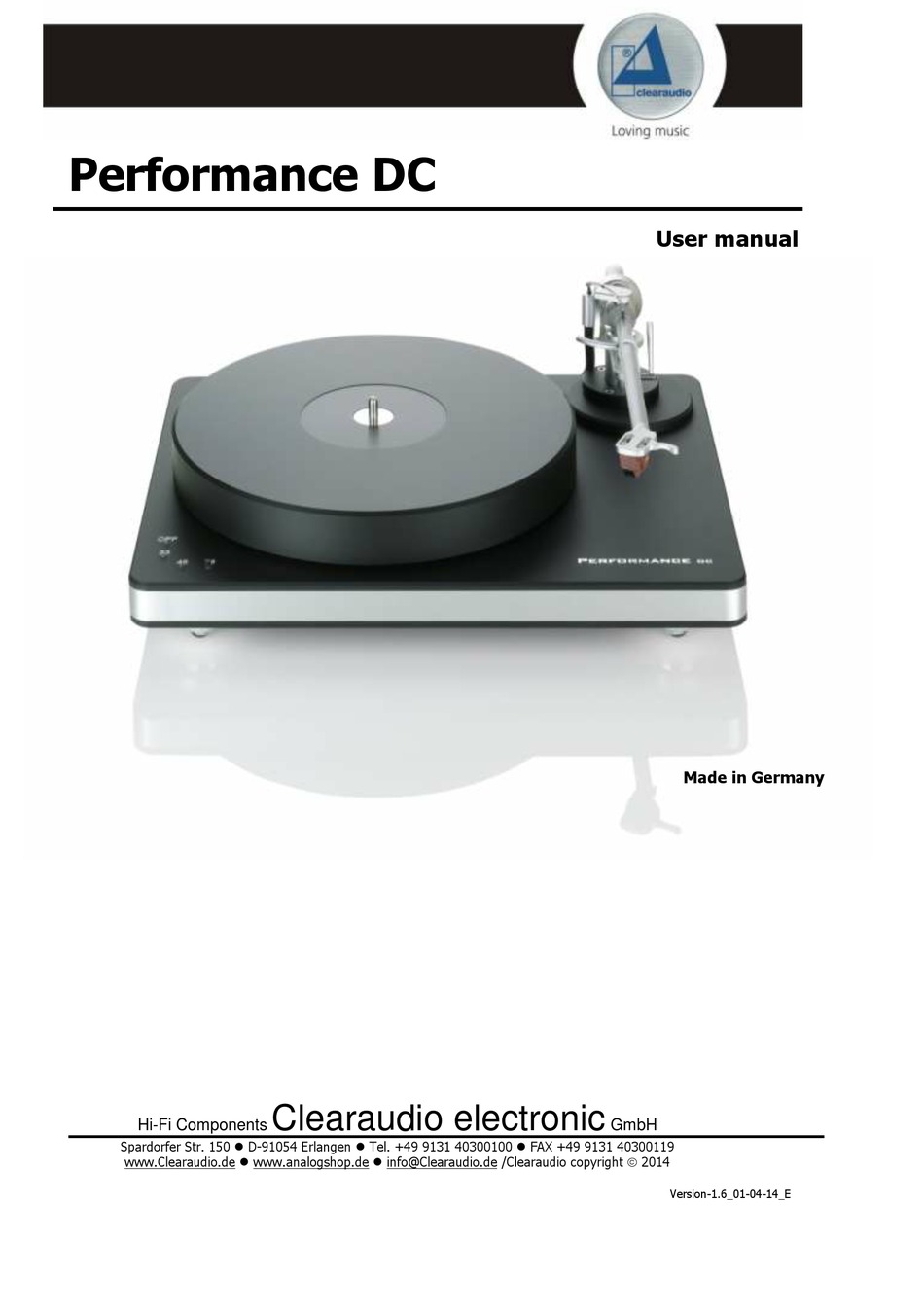

Page 1: User Manual

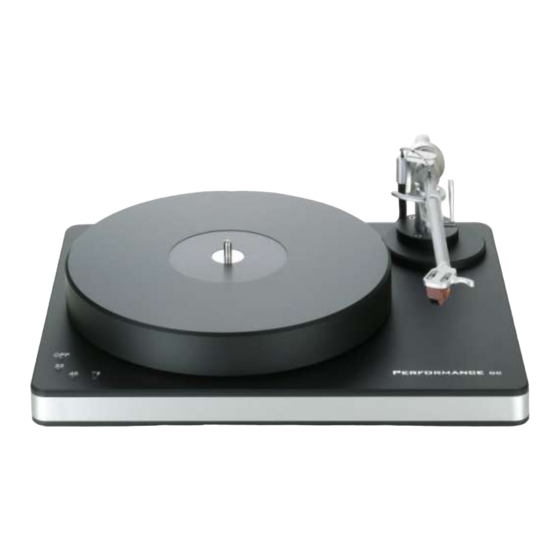

Performance DC User manual Made in Germany Clearaudio electronic Hi-Fi Components GmbH Spardorfer Str. 150 D-91054 Erlangen Tel. +49 9131 40300100 FAX +49 9131 40300119 www.Clearaudio.de www.analogshop.de info@Clearaudio.de /Clearaudio copyright 2014 Version-1.6_01-04-14_E... - Page 2 The motor is hidden beneath the platter and drives the precision machined aluminium sub-platter via a precision machined POM main platter are supported by Clearaudio's patented CMB Ceramic Magnetic Bearing'. The drive system is operated by four blue illuminated buttons, ergonomically integrated into the front left of the chassis.
-
Page 3: Table Of Contents
Performance DC User manual User manual 1 – 14 Contents 1. Packaging overview 2. Set-up and operation 3. Service 4. Special directions 5. Technical data Warranty information Page 3 Clearaudio electronic GmbH 2014... -
Page 4: Packaging Overview
Turntable - chassis 3. Layer (bottom): Platter IMPORTANT NOTICE: Please double check the tightness of all bolts and armboard mounting hardware, as temperature fluctuations during transit may have caused the hardware to become loose. Page 4 Clearaudio electronic GmbH 2014... -
Page 5: Set-Up And Operation
Please follow the instructions step by step: Performance DC requires a space of at least 16.54 inch x 12.99 inch for positioning. 12,99 inch / 330 mm 16,54 inch / 420 mm Pic. 1: Setting up space Page 5 Clearaudio electronic GmbH 2014... - Page 6 Please remove the protective netting from the bearing shaft and place two drops of the synthetic bearing oil on the ceramic bearing shaft. Slip the bearing top onto the bearing shaft of the turntable. Pic. 4: Bearing oil Page 6 Clearaudio electronic GmbH 2014...
- Page 7 This is normal, as the CMB requires the weight of the platter to fully engage it. Pic. 6: Setting the sub-platter Pic. 6.1: Moving the belt Page 7 Clearaudio electronic GmbH 2014...
- Page 8 Only if the turntable is in a level position will you get the best results with your turntable. Pic. 8: Adjustment of the height Adjust the height be turning the feet. Pic. 8: Adjustment of the height Page 8 Clearaudio electronic GmbH 2014...
- Page 9 If you want to check the speed of your turntable by yourself over the time, we recommend to use a Stroboscope Testrecord. To adjust the speed so perfectly and precisely as possible, we recommend the Clearaudio Stroboscope Testrecord (AC038) and the Clearaudio “Speed Light” (AC039) (both available at www.anlogshop.de)
-
Page 10: Service
Performance DC User manual 3. Service If any service or repair on all Clearaudio products is necessary, please contact your dealer / distributor or contact Clearaudio directly. We can inform you about your nearest service location. Transportation advice: Performance DC... -
Page 11: Special Directions
A damaged power cord must be exchanged immediately! To achieve the full Clearaudio warranty, it is necessary that you fill out and send your warranty card to Clearaudio within 14 days after purchase. Only if the product is returned in it’s original packing can warranty service be provided. -
Page 12: Technical Data
Warranty*: 2 years (5* years) * Only if the warranty card is filled out correctly and sent back in time to Clearaudio. Clearaudio electronic is not responsible for typographical errors in descriptions. Technical specifications subject to change or improvement without prior notice. Availability as long as stock lasts. - Page 13 RETAIN YOUR PURCHASE RECEIPT Your purchase receipt is your permanent record of a valuable purchase. It should be kept in a safe place to be referred to as necessary for insurance purposes or when corresponding with Clearaudio. IMPORTANT When seeking warranty service, it is the responsibility of the consumer to establish proof and date of purchase. Your purchase receipt or invoice is adequate for such proof.
