4.15 Triggering on an Edge Trigger in Recorder Mode
Setting the Trigger Source (Source)
2.

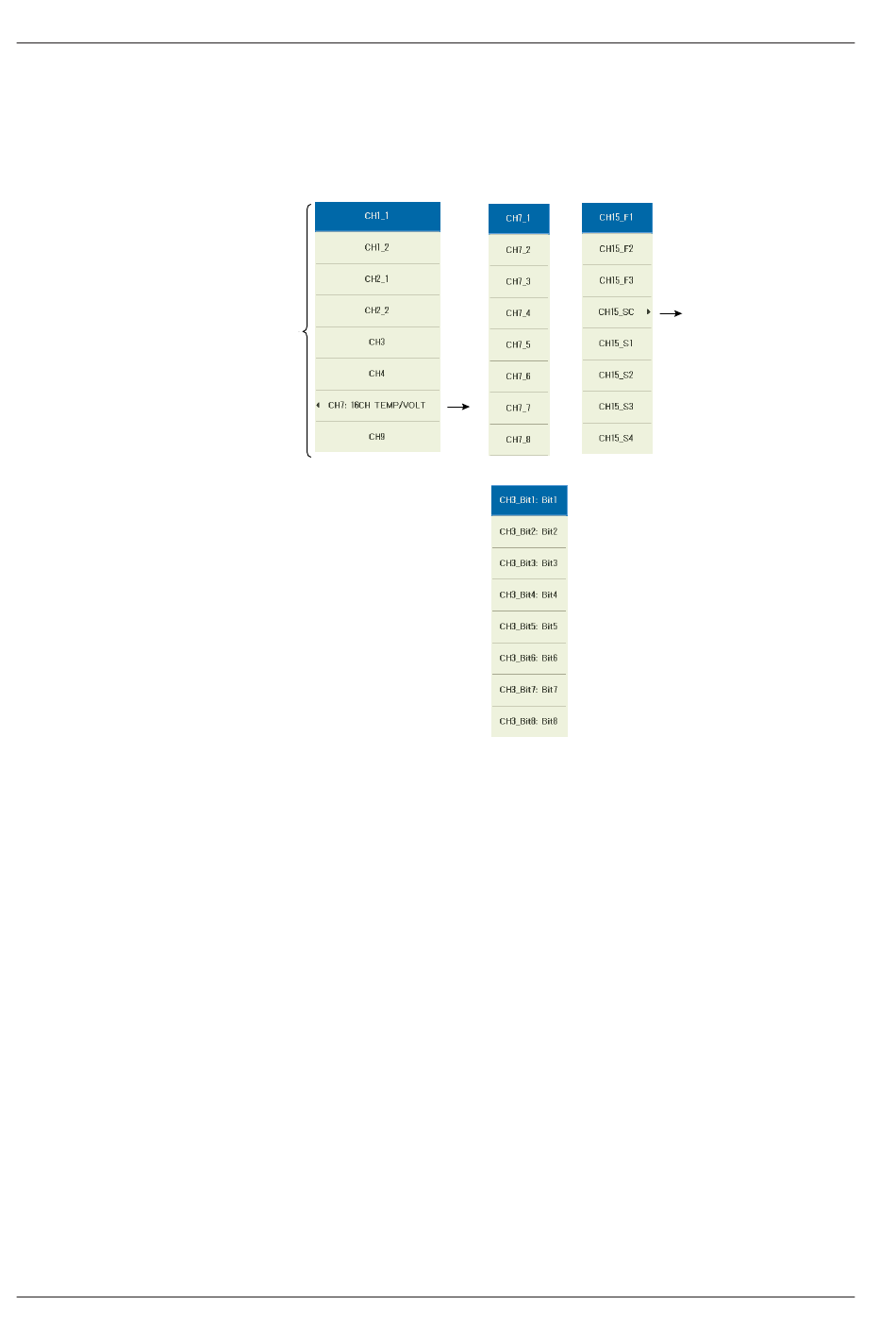

Press the Source soft key. The following menu appears.
Set the source channel
(CH1 to CH16,
16CH TEMP/VOLT, CAN,
CAN FD, LIN, SENT)
* The list displays channel numbers and display labels. For 16CH TEMP/VOLT, CAN, CAN FD,
LIN, and SENT, sub channel whose input (Input) is set to OFF cannot be selected.
4-26
Set the sub channel.
16CH TEMP/VOLT,
SENT
CAN, CAN FD, LIN
Logic waveform
For SENT SC
and ET, set also
the source bit or
error item.
