Please install the 1-phase meters with reference diagram as showed
in Fig. 4.17.
Please set the meter address (Grid side) into 1 and set the meter
address (PV side) into 2.
Please refers to section 4.8.1 for meters setting methods.

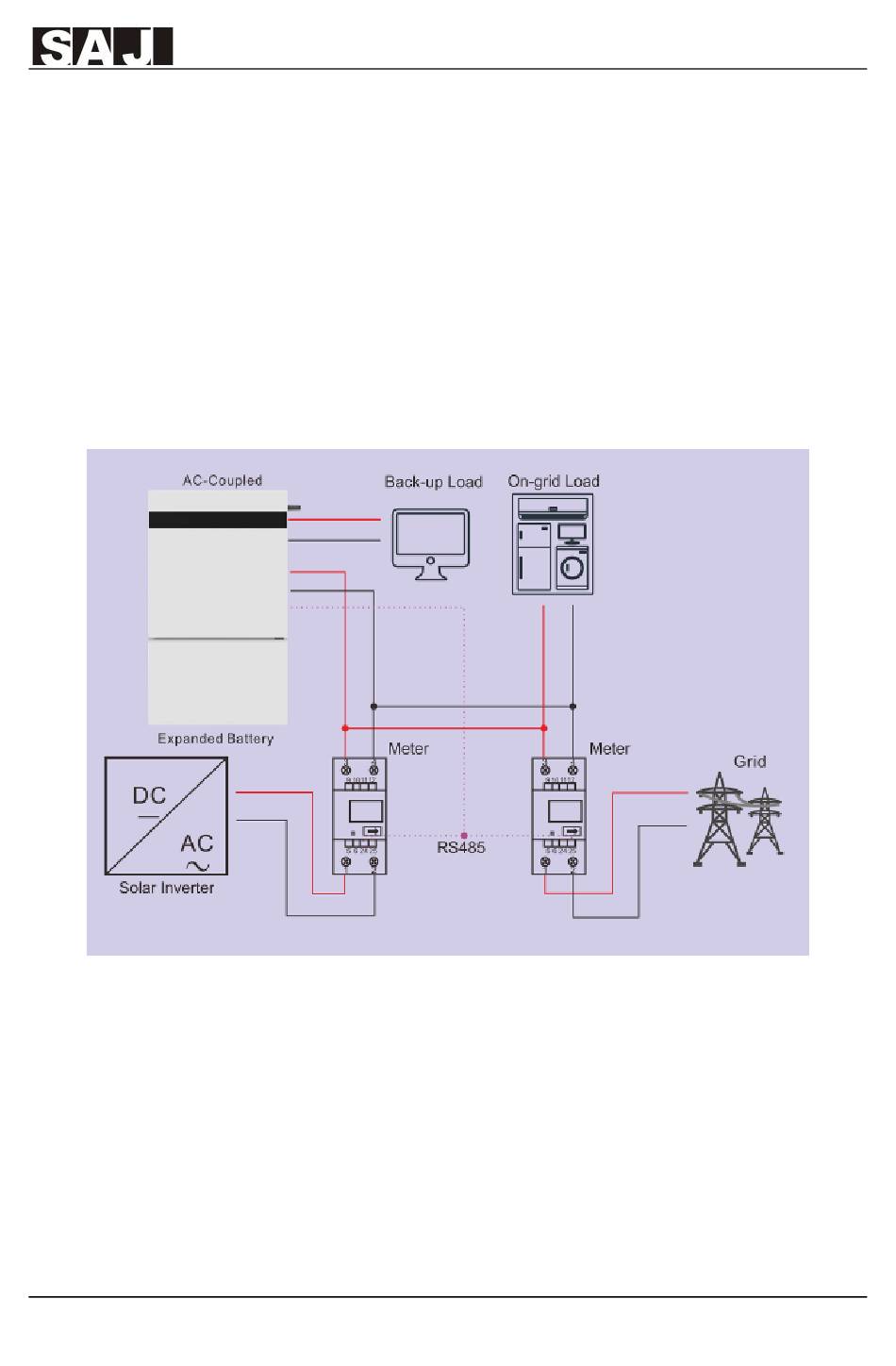

Fig. 4.17 Wiring diagram to two units of single phase smart meters
4.8 Meter Address Setting
Notice: If CT solution is adopted only without using any meters,
