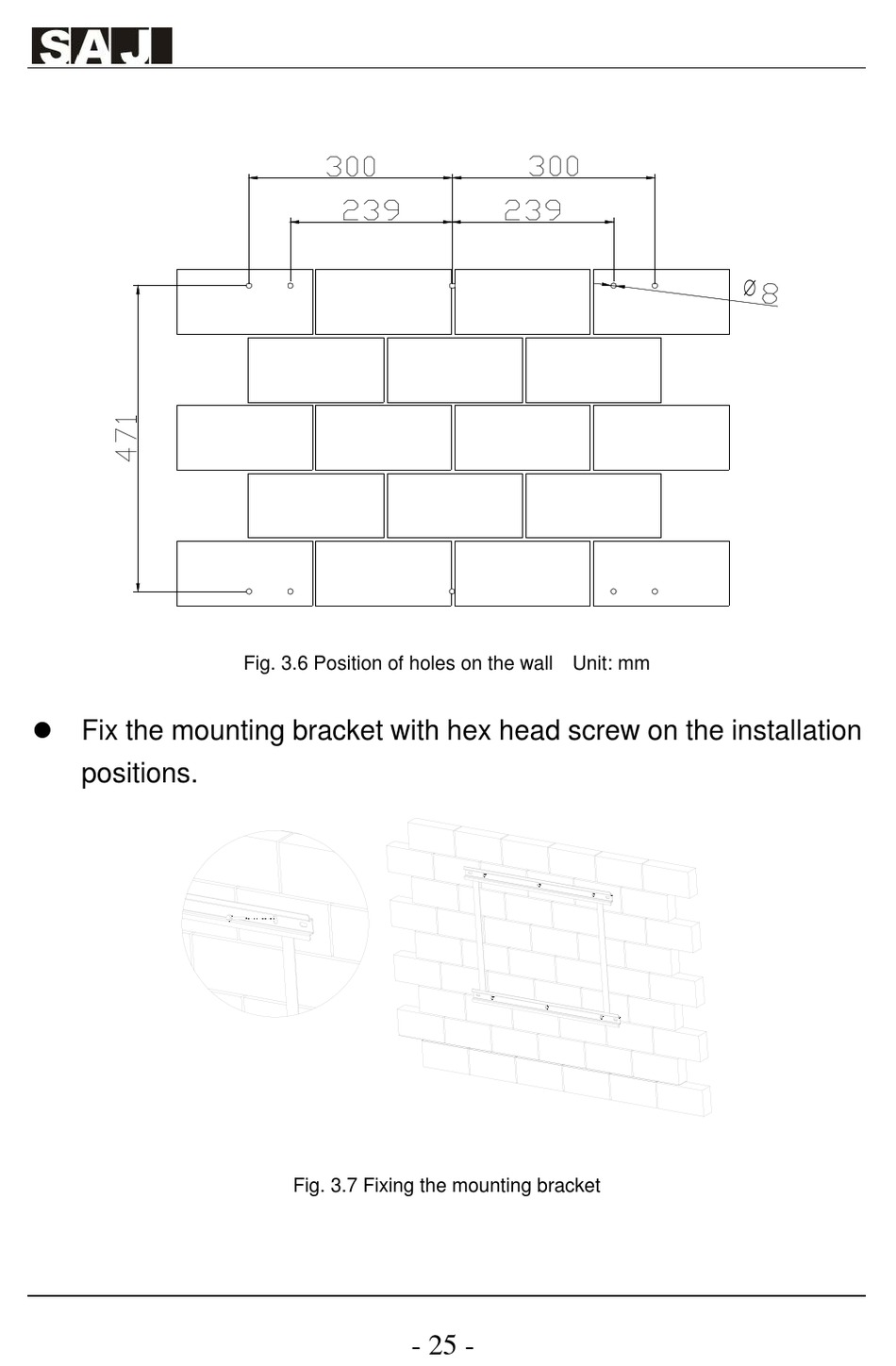

Fig. 3.6 Position of holes on the wall Unit: mm
Fix the mounting bracket with hex head screw on the installation
positions.
Fig. 3.7 Fixing the mounting bracket
- 25 -
